Force USA F-G9 - Page 12

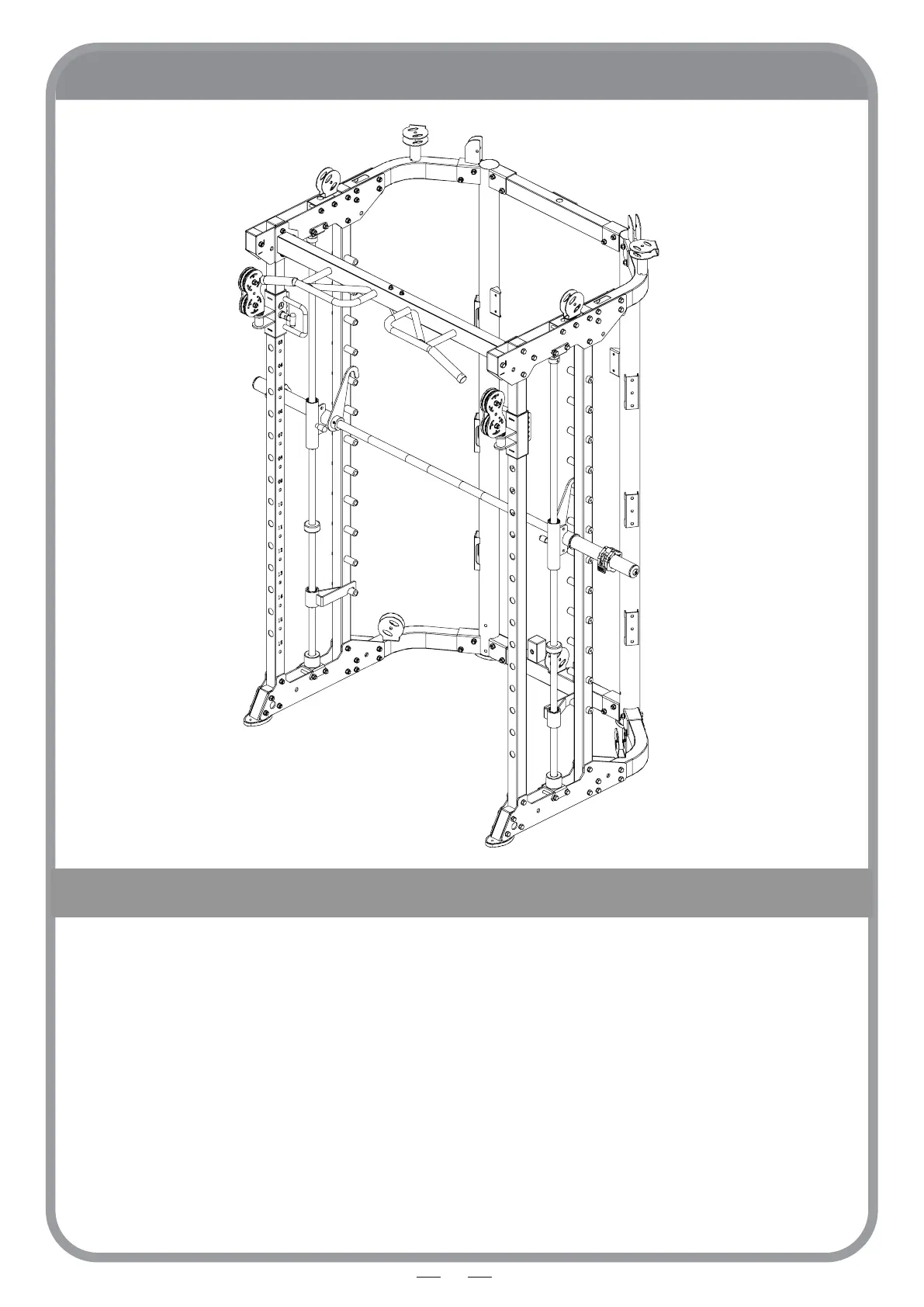

1 Fix lower base-25 fastening on lower plate using M10x90 hexagon bolt-33, Φ10 washer-11
and M10 lock nut-10
2 Fix upper base-26 fastening on upper plate using M10x90 hexagon bolt-33, Φ10 washer-11
and M10 lock nut-10
3 Guide rod in turn through lock sleeve-28, sliding sleeve-29, rubber pad-43, safety hook le-
32 and rubber pad with groove-30 fastening on base using M8x10 socket set screw-34
4 Barbell rod-41 in turn through sliding sleeve-29, check ring-36, inner pipe-42, pipe-37 and
end cap-35 fastening using M12x40 buon head socket screw-38, Φ12 spring washer-39
and Φ12 washer-40, then fit on barbell clamp collar-89
5 Guide rod in turn through lock sleeve-28, sliding sleeve-29, rubber pad-43, safety hook right-
31 and rubber pad with groove-30 fastening on base using M8x10 socket set screw-34
12
