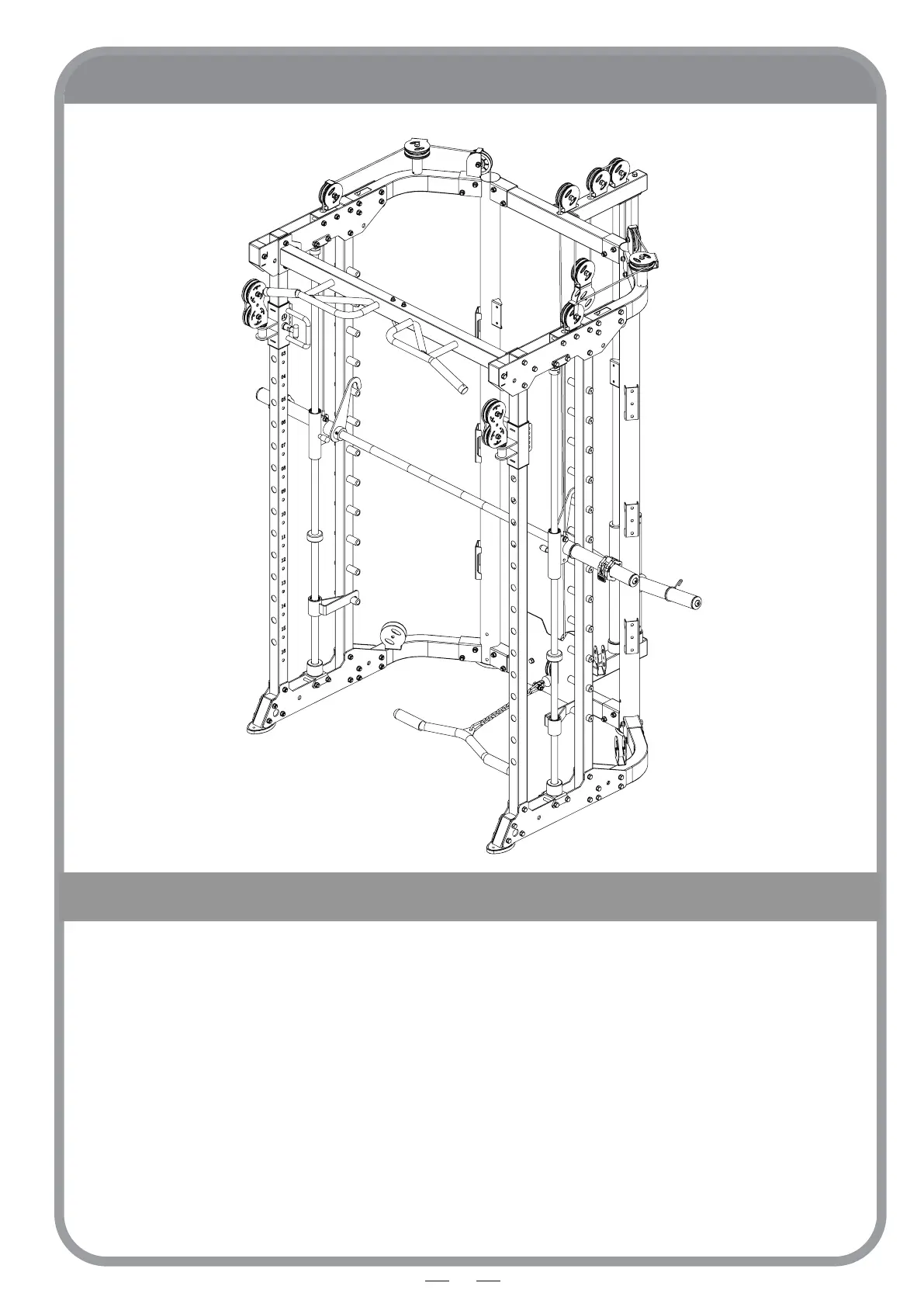

1 As the shown in the figure fix pulley-57 fastening on main frame and ”-“ shape pulley
frame-63 using M10x45 hexagon bolt-59, pulley plate-58, Φ10 washer-11 and M10 lock nut-
10
2
As the shown in the figure put the wire-62
3
Connect short bar-64 to wire using chain + 2 snap hook-66
4 Fix footplate-65 fastening on main frame using M10x25 hexagon bolt-49, Φ10 washer-11
and M10 lock nut-10
