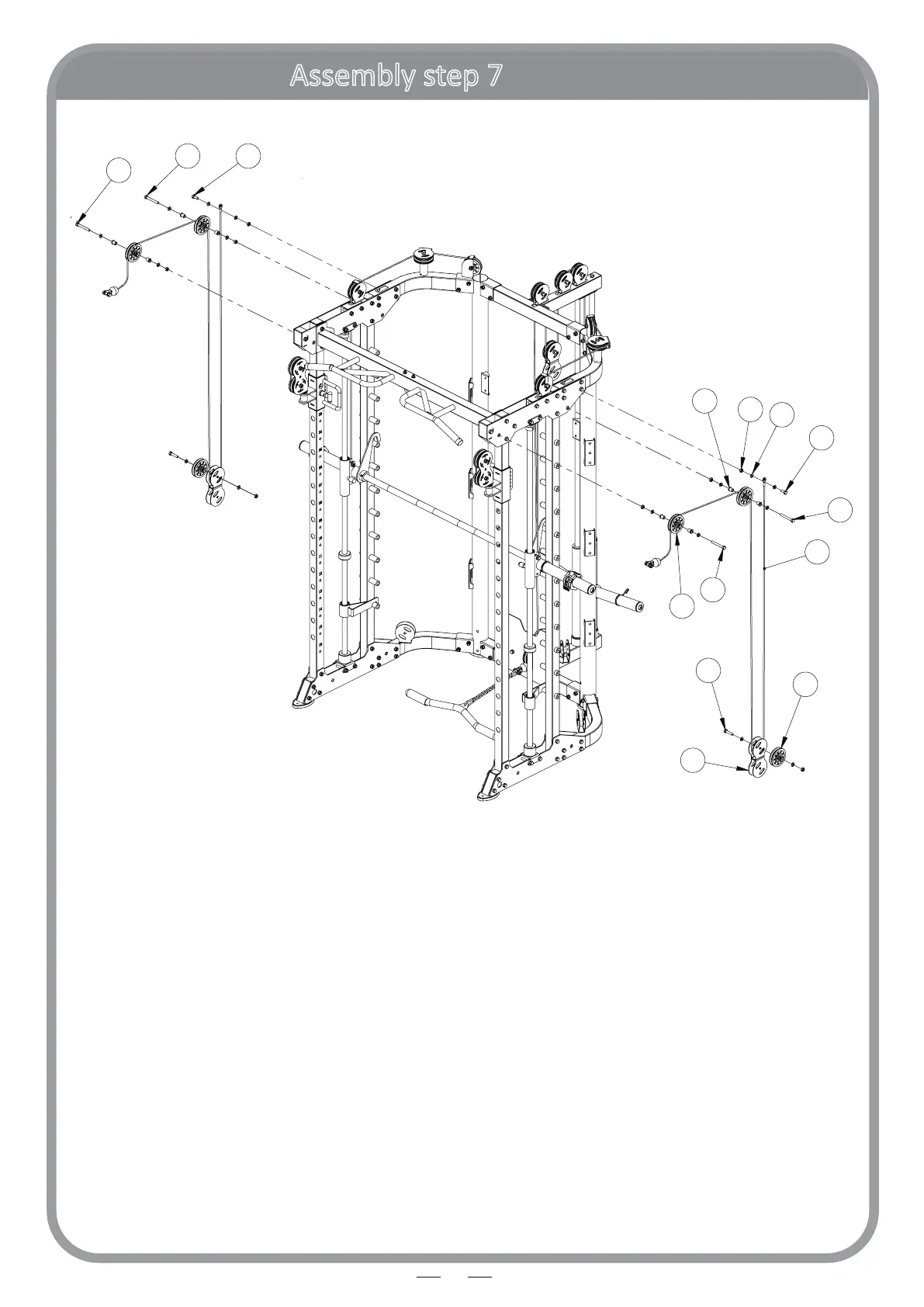

Force USA F-G9 - Assembly Step 7: Routing Wires and Spacer Sleeves

Assembly step 7
19
67
49
11
10
24
24 49
24
68
24
59
63
57
57
No.
Descripon
Note
Qty.
10
lock nut
M10
8
11
washer
Φ10
16
24
hexagon bolt
M10x80
4
49
hexagon bolt
M10x25
2
57
pulley
Φ95
6
59
hexagon bolt
M10x45
2
63
"-" shaped pulley frame
2
67
wire
Φ5x4095mm
2
68
pulley spacer sleeve
Φ20x10.5xL20.5
8
