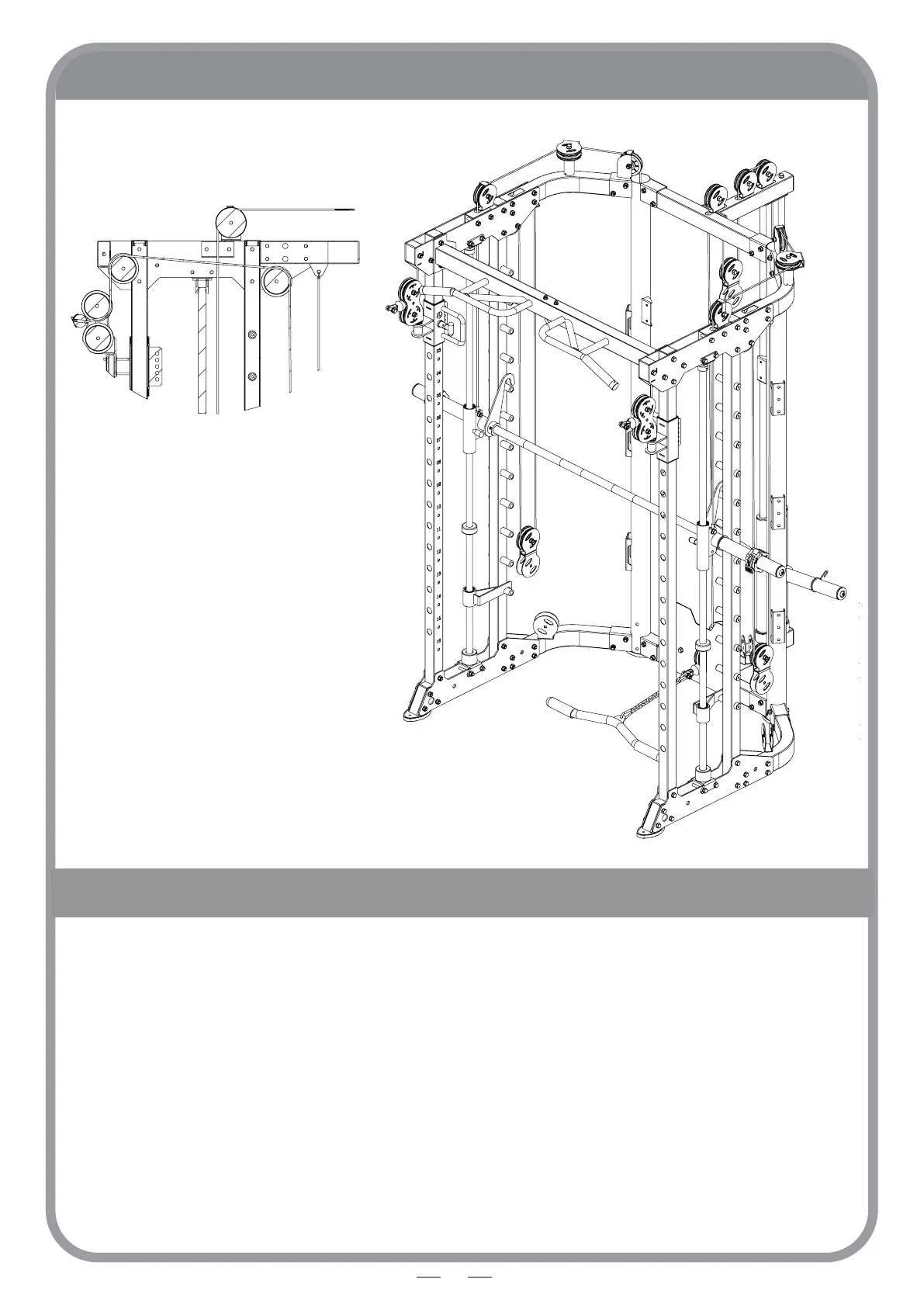

1 As the shown in the figure fix pulley-57 fastening on upper plate using M10x80 hexagon
bolt-24, Φ10 washer-11 and M10 lock nut-10 and pulley spacer sleeve-68
2 Fix pulley-57 fastening on ”-“ shape pulley frame-63 using M10x45 hexagon bolt-59, Φ10
washer-11 and M10 lock nut-10
3 As the shown in the figure put the wire-67 using M10x45 hexagon bolt-59, Φ10 washer-11
and M10 lock nut-10 fastening on bending tube, careful to keep the wire vercal
20
