Force USA F100 - WEIGHT STACK AND PULLEY SYSTEMS INSTALLATION

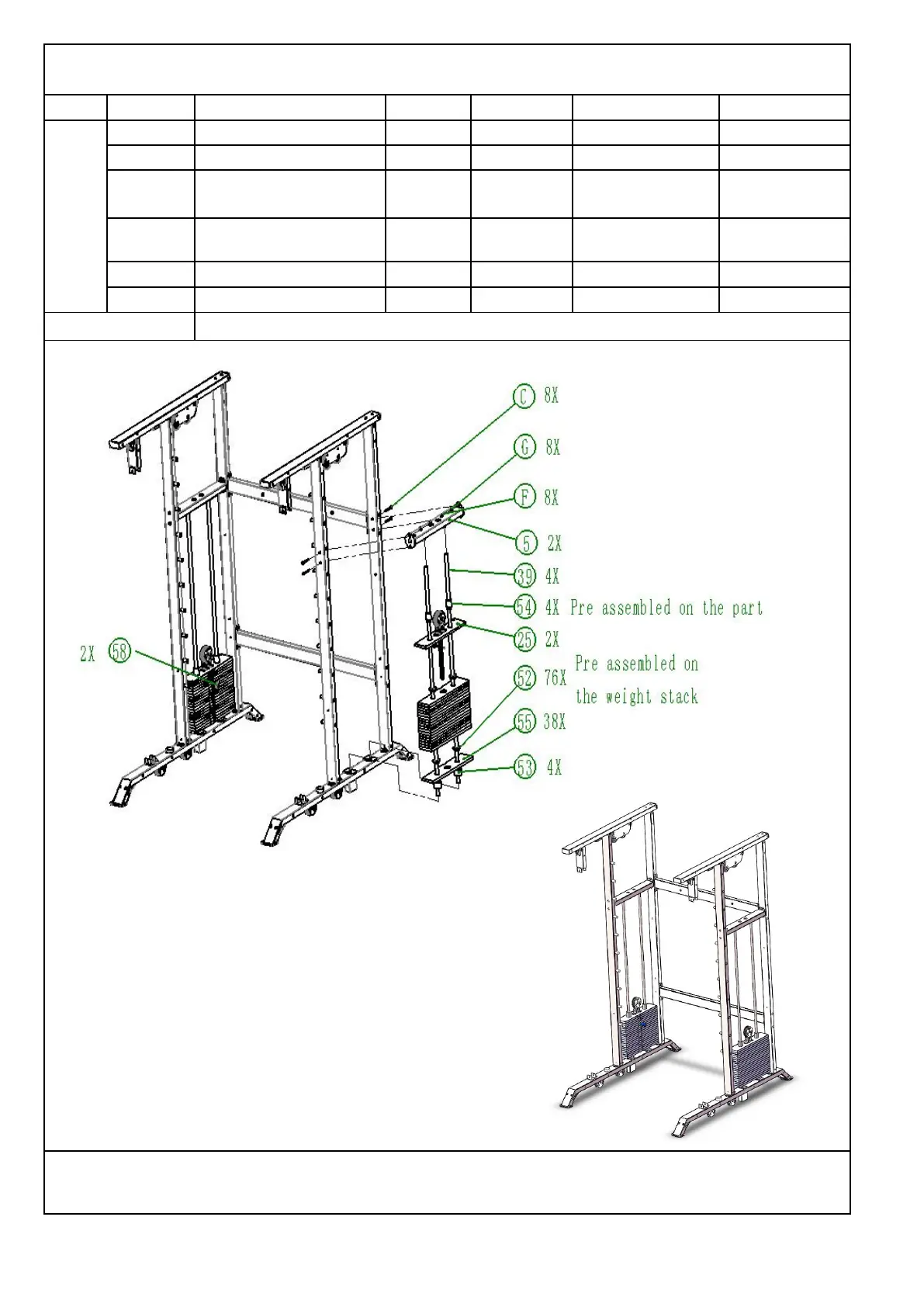

Assembly steps
Step
NO
Item NO Name Qty Item NO Name Qty
7
NO 5 Optical axis fixing group 2 NO 55 Weight stack -350 38
NO 39 cover optical axi 4 NO 53
Weight
stack
rubber
4
NO 54
Weight stack guide
sleeve
4 C
Hexagon flat head
screw M10*60
8
NO 25
Pully and weight stack
group
2 G Flat washer Ø10 8
NO 52 Weight stack bushing 76 F Locknut M10 8
NO58 Weight Stack Plug 2
Tools No.6 hexagon socket screw driver,wrench
The left side is assembled in the same way as the right side
