Force USA F100 - Page 16

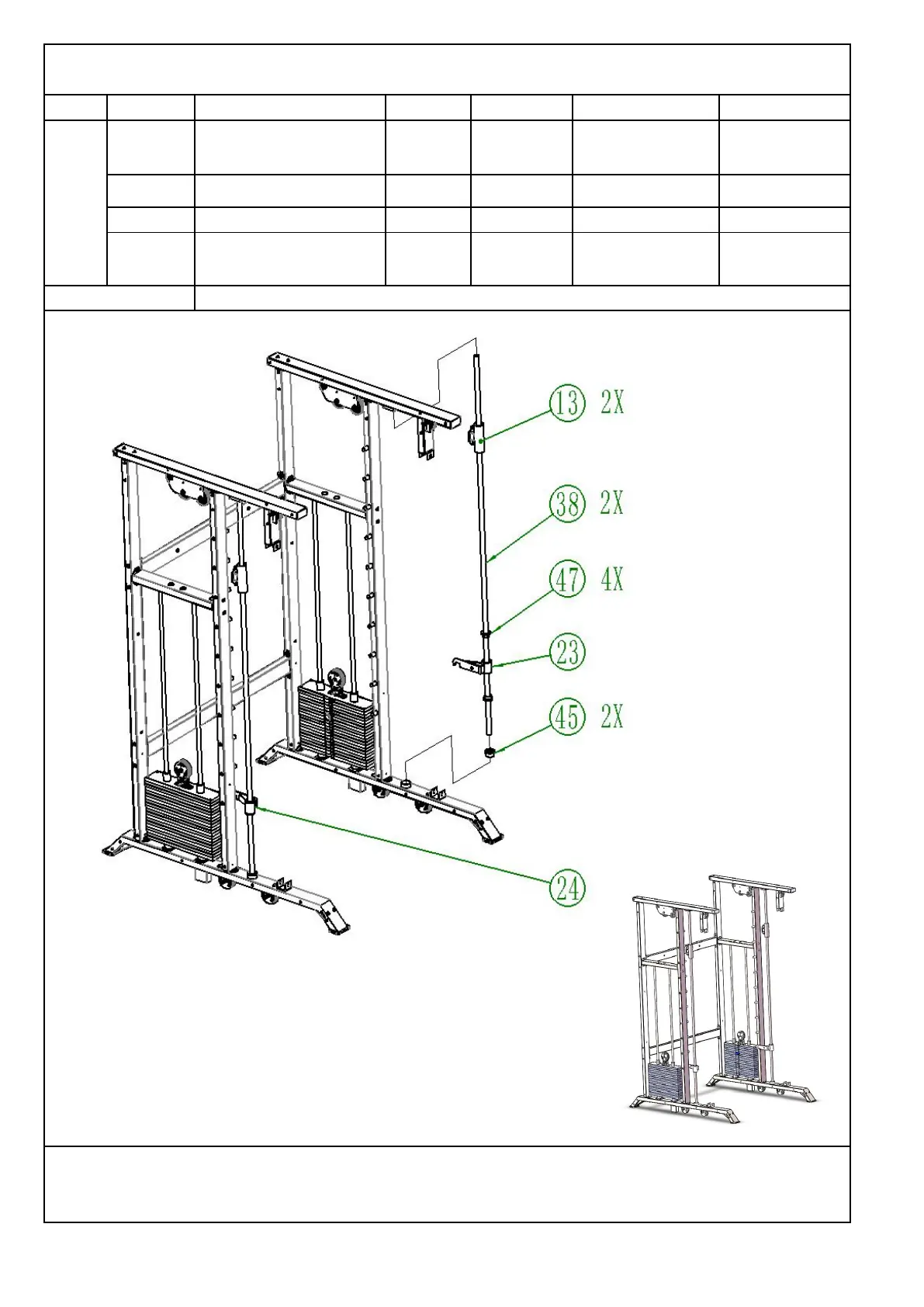

Assembly steps
Step
NO
Item NO Name Qty Item NO Name Qty
8
NO 13
Optical shaft sleeve
welding group
2 NO 24
Right Smith
Insurance Group
1
NO 38 Smith optical axis 2 NO 45
Bottom
nylon
sleeve
2
NO 47 Protection guide sleeve 4
NO 23
Left Smith Insurance
Group
1
Tools
The left and right Smith optical shafts are assembled in the same way. Pay attention to distinguish the No.
23 and No. 24 directions. After the installation is completed, the unfastened screws can be tightened.
16
