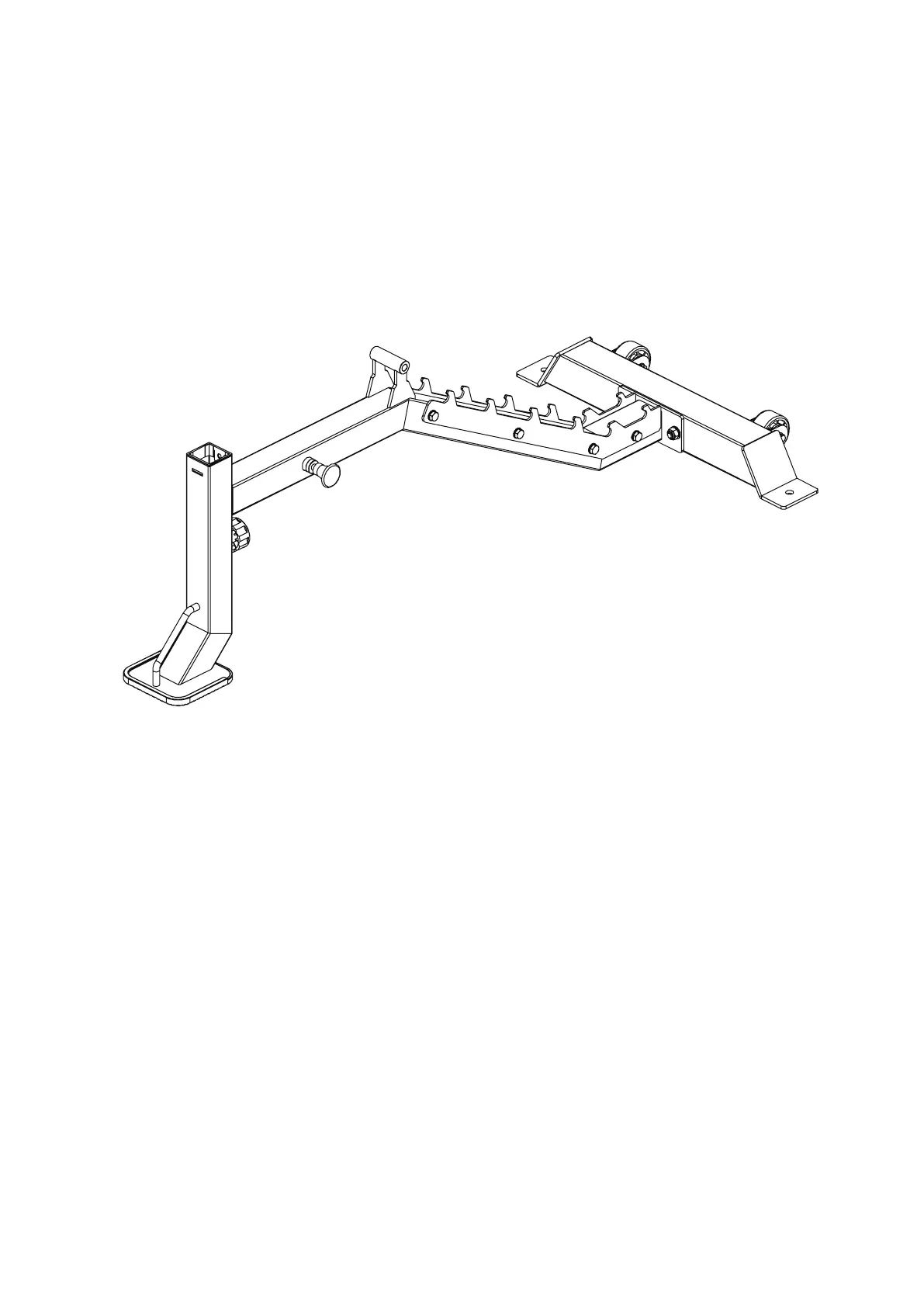

ASSEMBLY DRAWING
1. Connect back bottom beam assembly-1 and main beam tube assembly-2 use M10*120
hexagon bolt-6, φ12 at washer-4, guide rod washer-3 and M12 lock nut-5.
2. Connect gear plate-7 and main beam tube assembly-2 use M10*80 hexagon bolt-10, φ10
at washer-8 and M8 lock nut-9.
