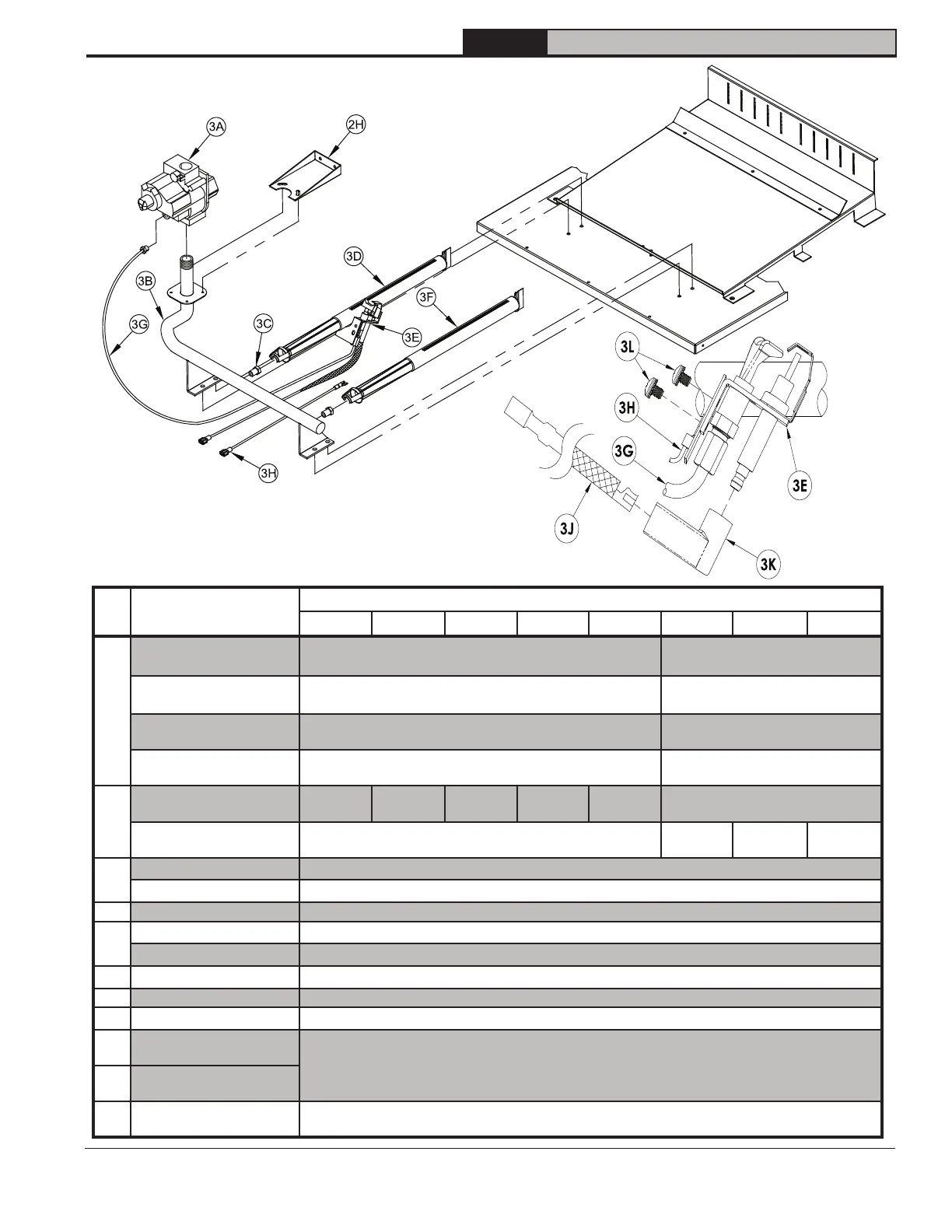

FORCE E
Installation, Operating & Service Manual
109444-03 - 12/19
Key
No.
Description
Part Number [Quantity]
FORCE02E FORCE03E FORCE04E FORCE05E FORCE06E FORCE07E FORCE08E FORCE09E
3A
Gas Valve (Natural Gas),
Honeywell VR8204C3007
109948-01 [1] N/A
Gas Valve (Natural Gas),
Honeywell VR8304P4496
N/A 109951-01 [1]
Gas Valve (LP Gas), Honeywell
VR8204C3015
109949-01 [1] N/A
Gas Valve (LP Gas), Honeywell
VR8304P4314
N/A 109950-01 [1]
3B
½" Gas Manifold
109958-02
[1]
109958-03
[1]
109958-04
[1]
109958-05
[1]
109958-06
[1]
N/A
¾" Gas Manifold N/A
109958-07
[1]
109958-08
[1]
109958-09
[1]
3C
#47 Orifice [Natural Gas] 109959-01 [1] (16 orifices)
1.20 mm Orifice [LP Gas] 109954-01 [1] (16 orifices)
3D Pilot Burner 109961-01 [1]
3E
Pilot Assembly - Natural Gas 109960-01 [1]
Pilot Assembly - LP Gas 109955-01 [1]
3F Main Burner 109956-01 [3 burners per kit]
3G 1/4" Pilot Tubing 109962-01 [1]
3H Ground Wire Assembly 109963-01 [1]
3J
Ignition Cable/Boot-Natural
Gas only
Available with 3E
3K
Ignition Cable Boot-Natural
Gas only
3L
Machine Screw, 10-32 x 1/4"
with External Tooth Washer
Source Locally Natural Gas [2], LP Gas [1]
