5 Venting (continued)

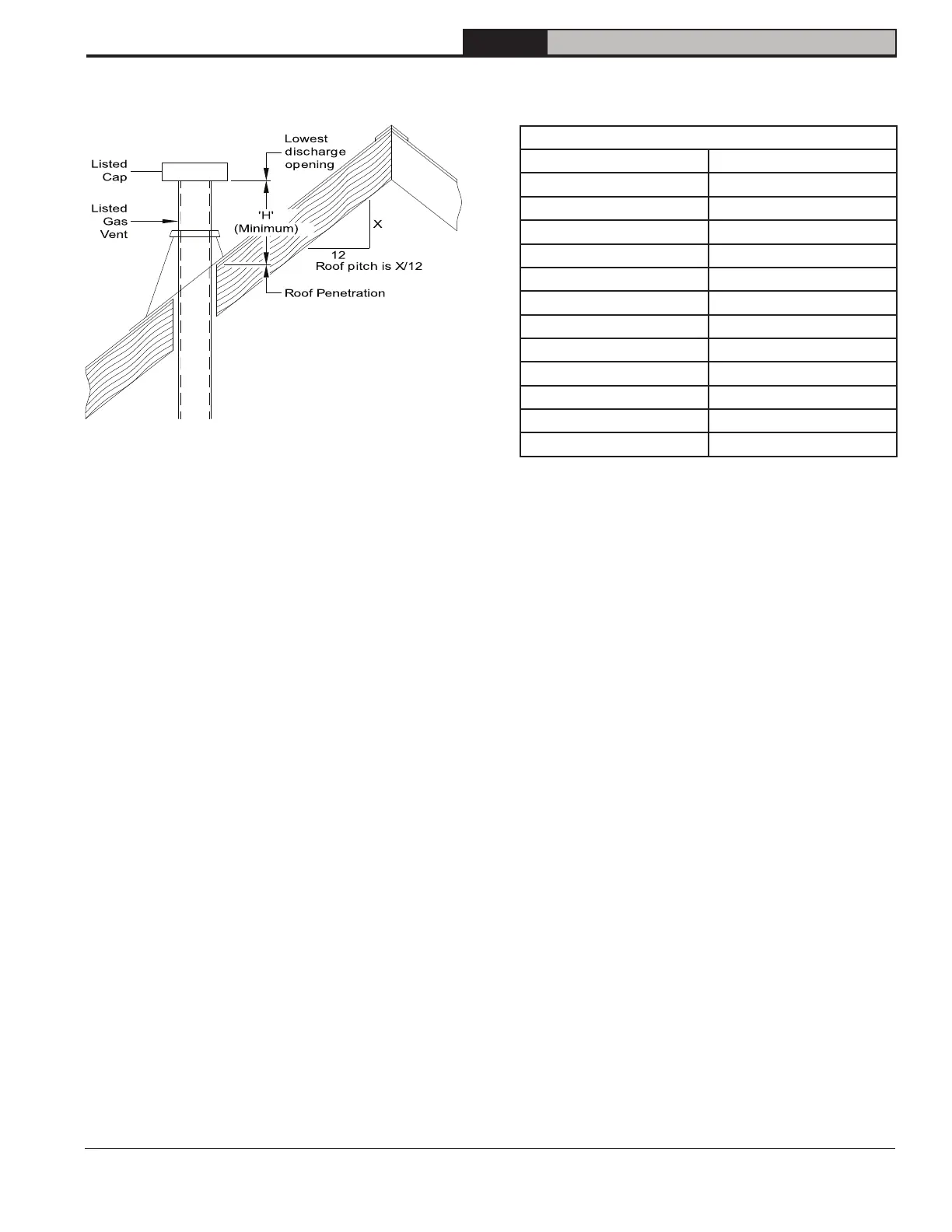

Figure 5-3 : Termination Location for Gas Vent
Roof Slope Heights
Roof Slope ft.
Flat to 6/12 1.0
Over 6/12 to 7/12 1.25
Over 7/12 to 8/12 1.5
Over 8/12 to 9/12 2.0
Over 9/12 to 10/12 2.5
Over 10/12 to 11/12 3.25
Over 11/12 to 12/12 4.0
Over 12/12 to 14/12 5.0
Over 14/12 to 16/12 6.0
Over 16/12 to 18/12 7.0
Over 18/12 t 20/12 7.5
Over 20/12 to 21/12 8.0
