Force FS 1200 User Manual

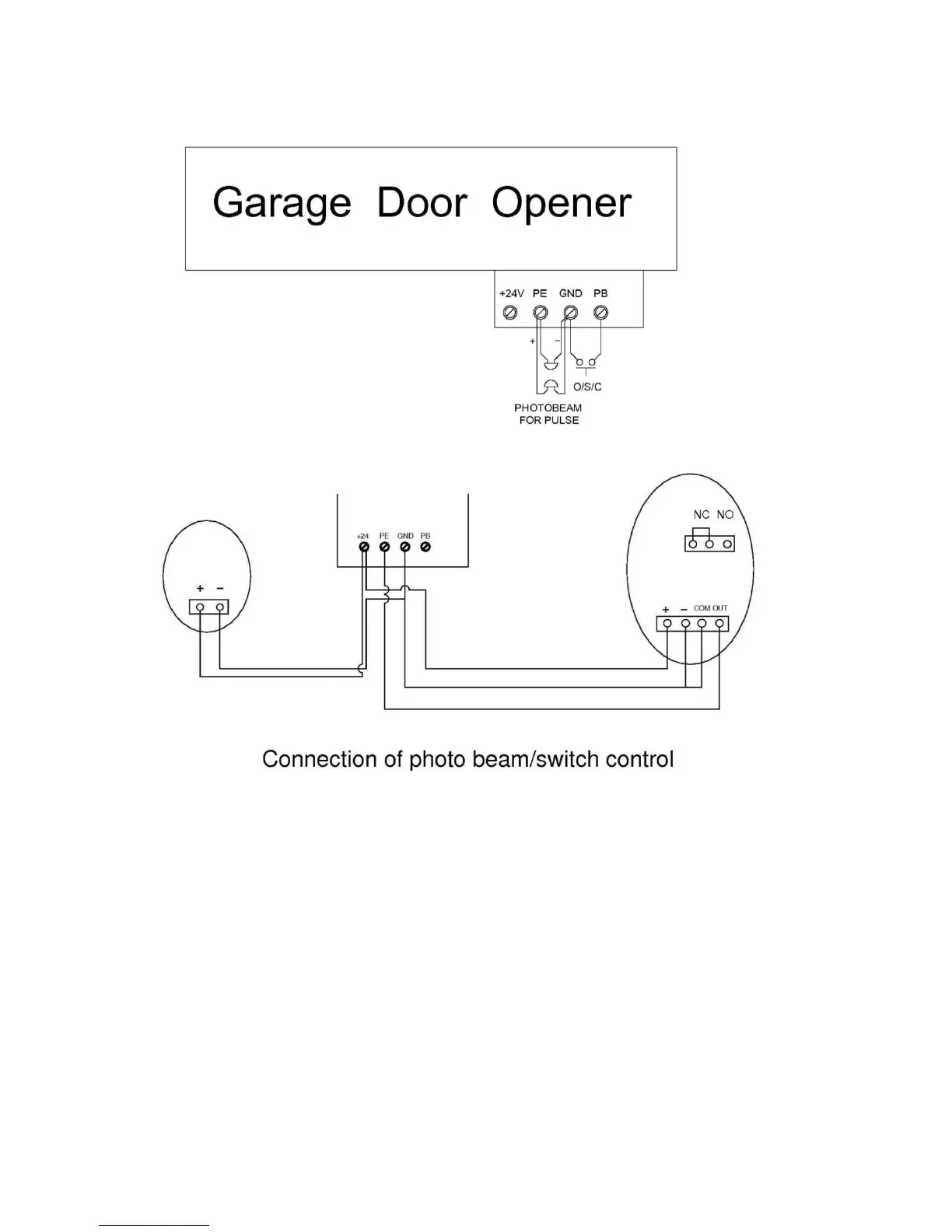

Photo beam connection (optional) – Fig.15,Fig.16
Switch control connection (optional) – Fig.15
Figure 15
Figure 16
Other terminal introduction and application
1．The O/S/C interfaces available. (Fig. 17, Fig. 18)
Add a new O/S/C button to open or close the door.
2. Flash light function. (Fig. 17, Fig. 18)
There are corresponding interfaces for this function and provide 24v-35v flash light voltage.
Connect the flash light with DC 24v-28v, current≤100mA. When use AC 220V power flash
lights, please match an adapter, and wiring as required
3. Pass door (SD) protection (Fig. 17, Fig. 18)
This function ensure that the door can’t be opened unless the small pass door is closed.
The door panel won’t be damaged.

Force FS 1200 Specifications

General

Brand	Force
Model	FS 1200
Category	Garage Door Opener
Language	English
