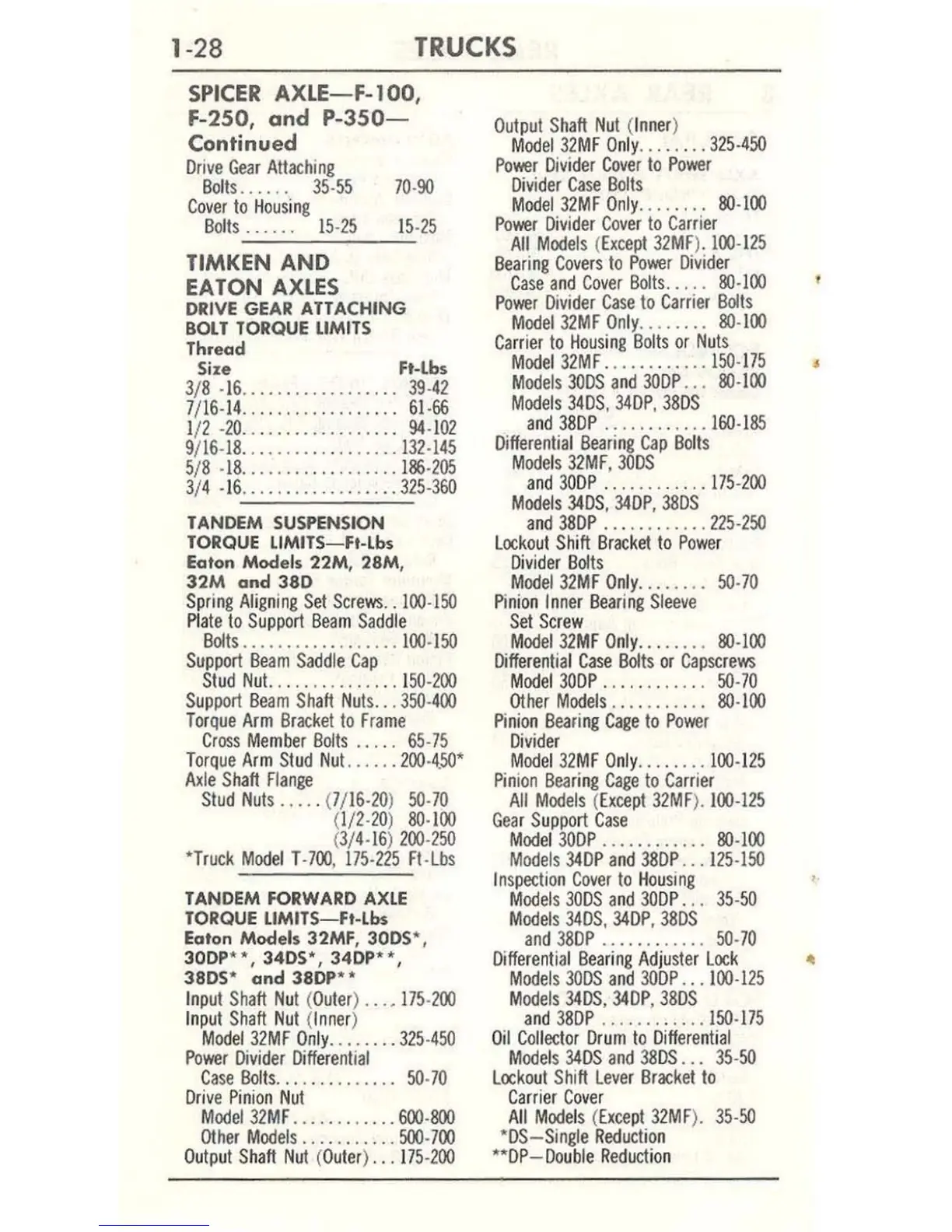

TRUCKS
SPICER AXLE-F-IOO,
f-2S0, and P-3S0-
Continued
Drive Gear Attach i ng
Bolt s. . . . . . 3 5·55 70 · 90
Cover to Hou s in g
Bolts . . . . . . 15·25 15 · 25
TIMKEN AND
EATON AXLES
DRIVE GEAR ATTACHING
BOLT TORQUE LIMITS
Thread
Size Ft~lbs
3/8 · 16 ... . ....• ....... .. 39 · 42
7/16 · 14 ......... . .. .. .... 61·66
1/2 · 20 .. .. .. .. ........ .. 94 · 102
9/ 16 · 18 ... ..... .. . .. ... .. 132 · 145
5/8 · 18 .. .... ..... ..... .. 186 · 205
3/4 · 16 .. .. ... . ........ .. 325 · 360
TANDEM SUSPENSION
TORQUE LIMITS
-F t·Lbs
Eaton Models 22M, 28M ,
32M and 380
Sp r ing Al igning Se t Screws .. 100 · 150
Piate to Support Beam Saddle
Bolts .. ...... ..... ... .. 100 ·1 50
Support Beam Saddle Cap
Stud Nut ..... .. ... ..... 1 50 · 200
Support Beam Shaff Nuts .. . 350 · 400
Tor que Arm Br acket to Frame
Cross Memb er Bolts .. ... 65 · 75
To rque Arm Stud Nut. . ... . 200'450'
Axle S haff Flange
Stud Nuts . ... . (7/ 16 · 20 ) 50 · 70
(1/2· 20 ) 80·100
(3/4· 16 ) 200 · 250
'T ru ck Mode l T ·700 , 175 · 225 Ft · Lbs
TANDEM FORWARD AXLE
TORQUE lIMITS -F t· Lbs
Eaton Models 32MF, 30DS ·,
300p ·", 340S · I 34DP *·,
38DS '" and 38DP**
In put Shaff Nul ( Outer ) .. " 175 · 200
Input Shaff Nut ( Inner )
Model 32MF Only . ... .... 325-450
Power Divider Differential
Case Bolts ... . .... ..... . 50 · 70
Dri ve Pinion Nut
Model 32M F .. . .. ... .. .. 600·800
Other Mod els .... ....... 500·700
Ou tp ut Shaff Nu t ( Outer ) ... 17 5·200
Output Shaff Nut ( Inner )
Mod el 32 MF O nl y ... ... .. 325 · 450
Power Divider Cover to Power
Divider Case Bolts
Model 32MF Only. " .. .. . 80·100
Power Divi d er Cover to Carrie r
All Models ( Except 32MF ). 100·125
Bearing Covers to Power Divid er
Case and Cover Bolts .. ... 80 · 100
P ower Divider Case to Carrier Bolts
Model 32MF Only . . . . . . .. 80·100
Ca rri er to Housing Bolts or Nuts
Model 32MF . ... .. ... ... 150 · 175
Models 30DS and 3ODP ... 80·100
Mode ls 34DS, 340P, 38 DS
and 38DP ...... ... ... 160·185
Differentia l Bearing Cap Bolts
Mode ls 32MF, 30DS
and 3 0DP .... ... ..... 175·200
Models 34DS, 34DP, 38DS
and 38DP ... . ... .... . 225·250
L ocko ut Shift Bracket to Power
Divider Bolt s
Mode l 32 MF Only ... ..... 50·70
Pinio n Inner Bear ing Sl ee ve
Set Screw
Mod el 32 MF Only ... . . ... 80·100
Differential Case Bol ts or Capsc re ws
Model 3 0DP .. .. .. .. .... 50 · 70
Other Models. . . . . . . . . . . 80 · 100
Pinion Bearing C age to Power
Divid er
Mode l 32 MF O nl y ..... ... 100·125
Pin i on Bear in g Cage to Carrier
All Models (E xcept 32M F ). 1 00·125
Gea r Su pport Case
Mode l 30DP .. ....... ... 80·100
Mode ls 34D P and 38DP ... 125·150
I nspectio n Cover to Hou si ng
Models 30DS and 30D P . .. 35·50
Models 34DS , 34DP , 38DS
and 38DP .. .... ...... 50·70
Differentia l Bear in g Adjuster Lock
Models 30DS and 30DP .. . 1 00·125
Models 34DS , 34DP , 38DS
and 38DP ... ....... .. 150·175
Oil Collector Drum to Di ff ere nt ial
Models 34DS and 38 DS. .. 35 · 50
Loc ko ut Shiff Lever Bracket to
Carrier Cover
All Model s ( Except 32MF ). 35·50
' D S-Single Reduction
" DP - Double Reduction
,
,
