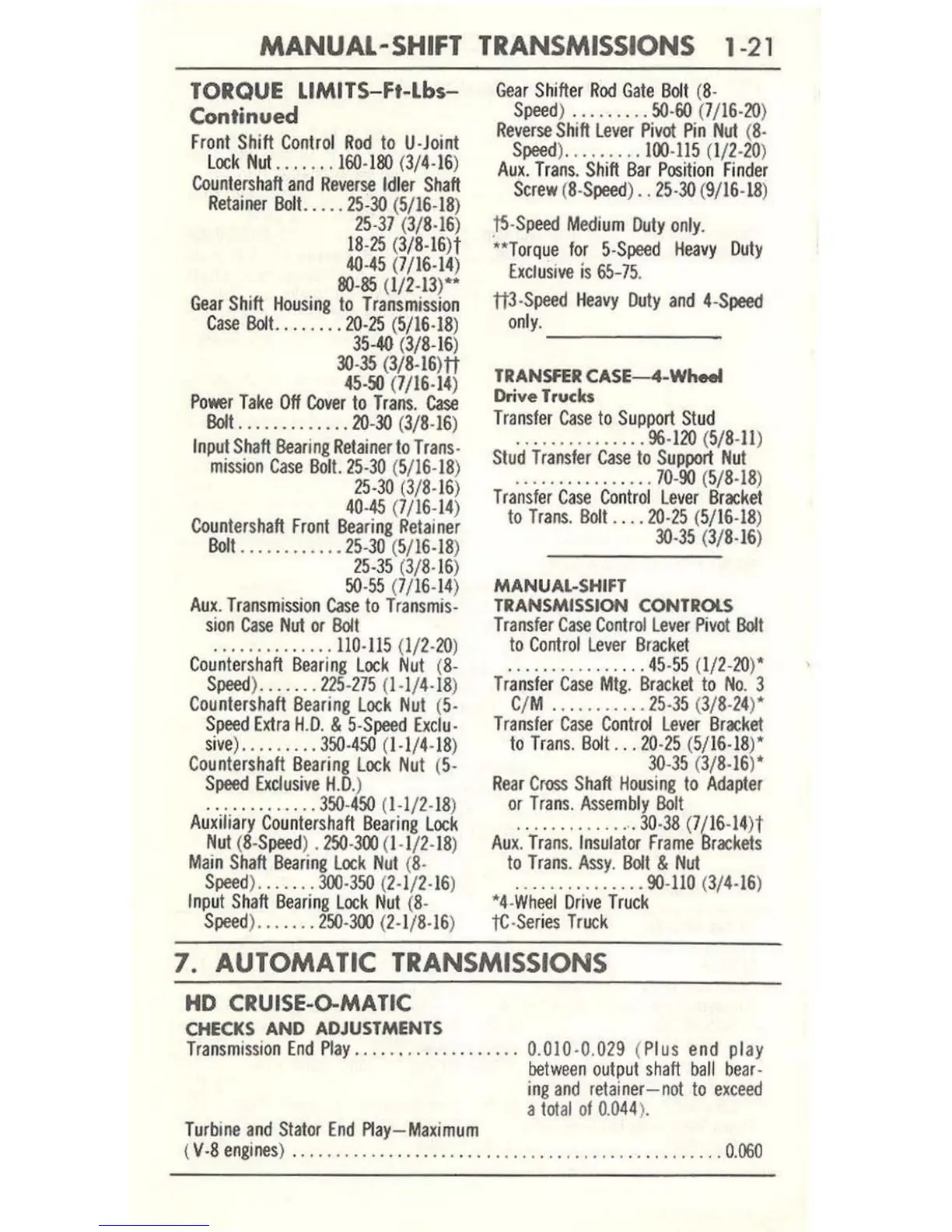

MANUAL-SHIFT TRANSMISSIONS 1- 21
TORQUE lIMITS- Ft- Lbs-
Continued
Front Shift Cont rol Rod to U·J oint
L ock Nut .... . , . 160 ·I &:l (3/4· 16 )
Co u ntershaft and Reverse Id l er Shaft
Retainer BoIt. . ... 2S·3O (S/ 16 · 18 )
2S·37 (3/ 8·16 )
18·15 ( 3/8·16H
4O·4S (7 / 16 - 14 )
&:l·85 (1/2-13 ) ""
Gear Shift H ousi ng to Transmissio n
Case BoIt. ... . ... 20·15 ( S/16·18 )
3S-40 (3/8.16)
30 · 35 (3/8-16m
4S·50 (7/16·14 )
Po wer T ake O ff Cover to Tr ans. Case
Bolt. ............ 20-30 (3/ 8·16)
I nput Shaft Bearing Retainer to Trans·
mi ssion Case Bo l t. 25·30 (5/ 16 · 18 )
25·30 (3/8·16)
40 · 45 (7 / 16 ·14)
Co u ntershaft Front Beari ng Reta i ner
Bolt ........ . ... 25·30 (5/ 16 · 18 )
2S·35 (3/8· 16 )
50·55 (7/ 16 ·14)
Aux . Tran smission Case to Transmis -
sion Case Nut or Bolt
.... .... .. .. .. 1l0 · 115 (1/ 2·20 )
Co u ntershaft Beari ng Lock Nut ( 8·
Speed ) ....... 225 - 275 (1. 1/4· 18 )
Cou n tershaft Bearing Lock Nut (S·
Speed Extra H.O. & 5·Speed Exclu ·
sive) . ........ 350·450 (1.1/4· 18 )
Countershaft Bearing Lock Nut (5·
Speed Exclusive H.D .)
.. , ., ... , .... 350·450 (1·1/2. 18 )
Au
xiliary Co un tershaft Beari ng Lock
Nut (8· Speed ) .150 · 300 (1· 1/2· 18 )
Mai n Shaft Bearing Lock Nut ( 8·
Speed ) .. , .... 300·350 (2·1/2· 16 )
Inp ut Sh aft Beari ng L ock Nu t (8·
Speed ). , ..... 250 · 300 (2·1/8. 16 )
Gear S hi fte r R od Ga te Bol t (8·
Speed ) . .. , . , . .. 50 · 60 (7/ 16 ·20)
Reverse Shift Lever Pivot Pin Nut ( 8.
Speed ) ......... 100 · 115 (1 /2- 20 )
Aux. Tr ans. Shi ft Ba r P os ition F in der
Screw (8 ·S peed ) .. 25 · 30 (9/ 16 · 18 )
j5·Speed Medium Duty only .
"" Tor q ue for 5· Speed Heavy Du ty
EXClusive is 65-75 .
ttl ·S peed H eavy Duty and 4 -S peed
on l y.
-----
TRANSfER CASE-4-Wh .....
Drive Trucks
Tra n sfe r Case to Su pport St ud
. ..
........ .... 96 · 120 (5/ 8·1l )
Stud Transfer Case to Support Nut
..... , ...... , ... 70 · 90 (5/8. 18 )
Transfer Case Co nlr ol Lever Br acket
to Trans. Bolt., , .20·25 (S/1 6·18 )
30 · 35 (3/ 8·16 )
MANUAL-SHIFT
TRANSMISSION CONTROLS
Transfer Case Control Lever Pi vot Bolt
to Control Lever Brocket
... .......... , , . 4S · 55 (1/2 - 20 )"
Tra n sfe r Case Mtg . Bracket to No , 3
C/ M . ......... . 25 · 35 (3/8· 24 )"
Transfer Case Co n trol Lever Bracke t
to T
rans . Bolt ... 20 · 25 (5/ 16· 18 )"
30·35 (3/ 8·1S)"
Rear Cross Shaft Ho u sing to Adapter
or Trans . Assemb ly Bolt
. ... .. , ... , .... 30 ·38 (7/ 16 - 14 )t
Aux . Trans . Insulator Frame Brackets
to Trans . Assy . Bolt & Nut
...... , ........ 9O - 1l0 (3/4· 16 )
"4· Whee l Drive Tr uck
tc· Series Truck
7. AUTOMATIC TRANSMISSIONS
HD CRUISE-O-MATIC
CHECKS AND ADJUSTMENTS
Transmission End Play .... .. .......... ... 0.010·0. 029 ( Plu s end play
between output shaft ball bear ·
ing and retainer-not to exceed
a tot al ot 0.044 ).
Tu rbine and Stator End Play - Maximum
( V·8 engines ) .. ................. .. , .... , ...... , ............... 0.060
