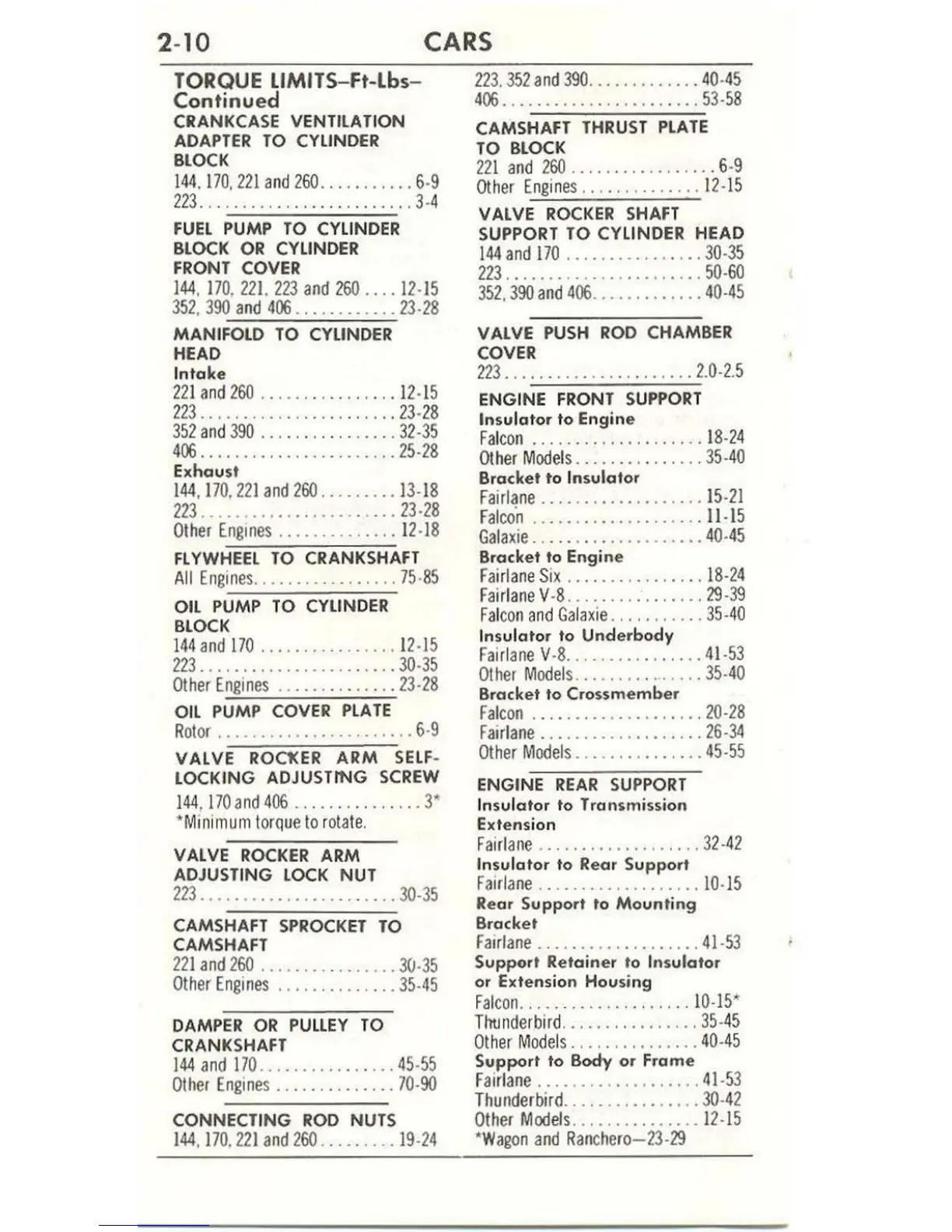

TORQUE LlMITS-Ft-Lbs-
Continued
CRANKCASE VENTIlATION
ADAPTER
TO CYLINDER
BLOCK
144. 170 ,221 and 260 ........... G·9
U3 . . ... ... ................. 34
FUel PUMP TO CYl i NDER
BLOCK OR CYLINDER
FRONT COVER
144 , 1 70 , 221. 223 and 260 .... 12 · 15
352, 390 and 406 ............ 23·28
MANIFOLD TO CYLINDER
HEAD
Intake
22 1 and 260 ......... .. .. ... 1 2· 15
223 .. . ......... . •.. .. ..... 23 · 28
352 and 390 ..... ........... 32 · 35
406 .. ............ ... ...... 25·28
Exhaust
144 , 170 , 221 and 260 ......... 13 · 18
223 .................. . .... 23·28
Other Engines ........... .. . 12·18
FL YWHEEL TO CRANKSHAFT
All Engines ................. 75 · 85
OIL PUMP TO CYLINDER
BLOCK
144 and 170 ... ..... . .. 12 ·15
223 ...................... 30 · 35
Other Engines .. ... . . . ...... 23·28
OIL PUMP COVER PLATE
Rot or ....................... G·9
VALVE ROCUR ARM SElF-
LOCKING ADJUSTING SCREW
1 44 , 170 and 406 ........ .... ... 3-
'"Minimum torque to r otate .
VALVE ROCKER ARM
ADJUSTING LOCK NUT
223 ............. . .... . .... 30·35
CAMSHAFT SPROCKET TO
CAMSHAFT
221 and 260 ................ 30 · 35
Other Engines ........... . . . 35·45
DAMPER OR PULLEY TO
CRANKSHAFT
144 and 170 ..... ... .... . ... 45 · 55
Olher Engine s .. . ..... ... . . . 70 · 90
CONNECTING ROD NUTS
144 , 170 . 221 and 260 .... . .... 19 · 24
223 . 352 and 390 ............. 40 · 45
406 ....................... 53·58
CAMSHAFT THRUST PLATE
TO BLOCK
221 and 260 ................. G·9
Other Engines .............. 1 2·15
VALVE ROCKER SHAFT
SUPPORT TO CYLINDER HEAD
144 and 170 ............ ... . 30·35
223 ....................... 50·60
352,390 and 406 ............. 40·45
VALVE PUSH ROD CHAMBER
COVER
223 ...... ... . ..... .. ..... 2.0·2.5
ENGI NE FRONT SUPPORT
Insulator to Engine
Fa l con . ........... ... .. .. . 18 · 24
Other Mode ls ....... , . ...... 3540
Bracket to Insulator
Fairlane .... .......... ..... 15 · 21
Falcon .... ....... ......... 11 ·15
Galaxie . . ....... ........... 4045
Bracket to Engine
Fairlane Six ..... ....... .... 18·24
Fairlane V·8 ................ 29·39
Falcon and Galaxie .... .. ... .. 35- 40
Insul ator to Underbody
Fairlane V·8 . .......... ..... 41 · 53
Olher Models ............... 35·40
Bracket to Cross me mber
Falcon .................... 20·28
Fairlane . . . ............ . ... 26·34
Other Models ............... 45 · 55
ENGINE REAR SUPPORT
Insul ator to Transmission
Extension
Fair l ane .................. . 32·42
Insul ator to Rear Support
fairlane . . ................. 10 · 15
Rear Support to Mounting
Br acket
fairlane ................... 41 · 53
Support Retainer to Insulator
or Ex ten sion Housi ng
falcon ...... ... ... . .... ... 1 0·W
Thtlnderbird ................ 35·45
Other Model s . .............. 40-45
Support to Body or Frame
fairlane . .... .............. 41 ·53
Thunderbird ................ 30·42
Other Models ............... 12 · 15
- Wagon and Ranchero-23 · 29
