Ford 1997 E150 - Page 111

Relays

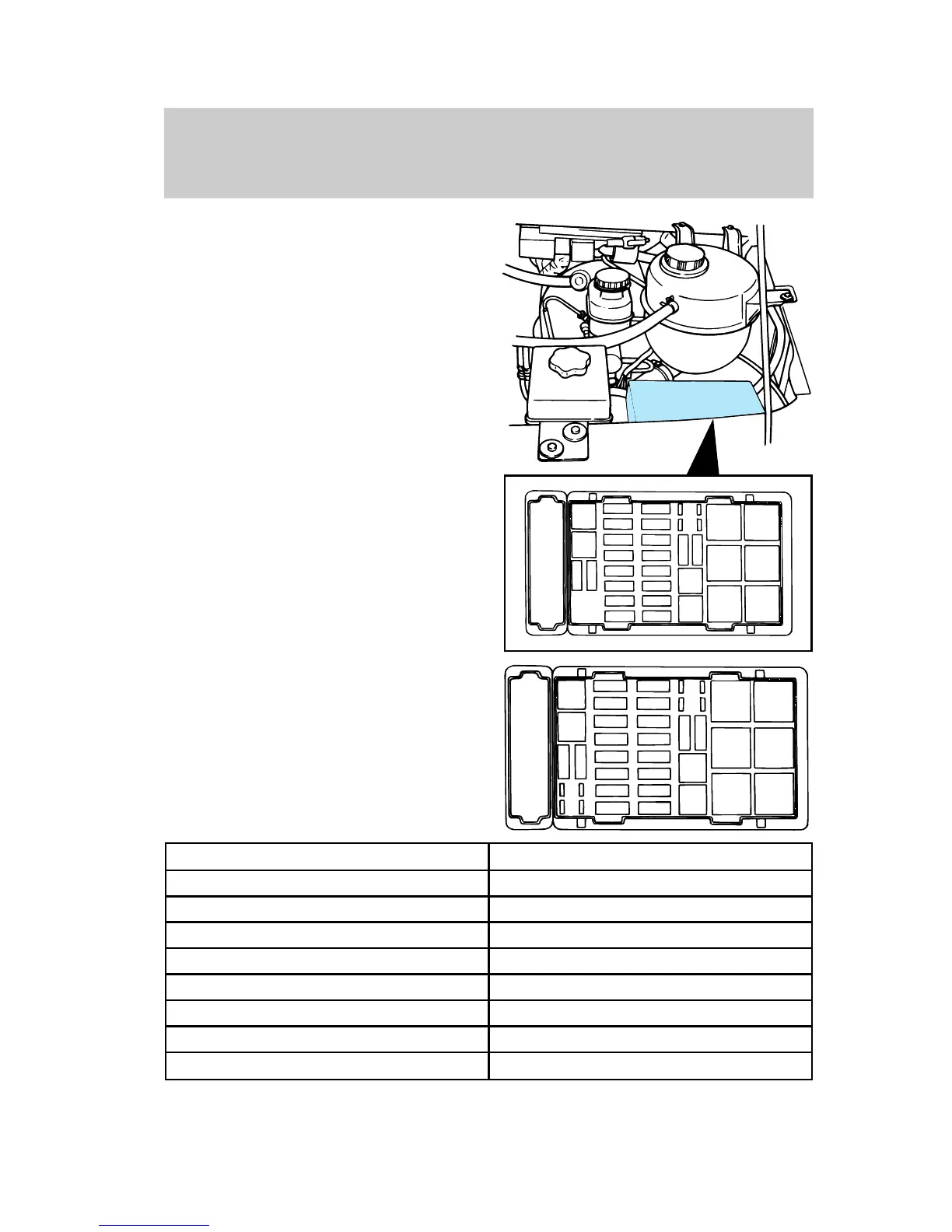

Relays are located in the power
distribution box
Ford recommends that relays be
replaced by a qualified technician.
Position Circuit
A Not used
B Not used
C Trailer backup lamps
D Trailer running lamps
E Trailer battery charge relay
F Not used
G PCM
H Blower motor
1
A
B
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
E
H
JF
G
K
24
25
26
27
28
29
C
D
eco_relays
