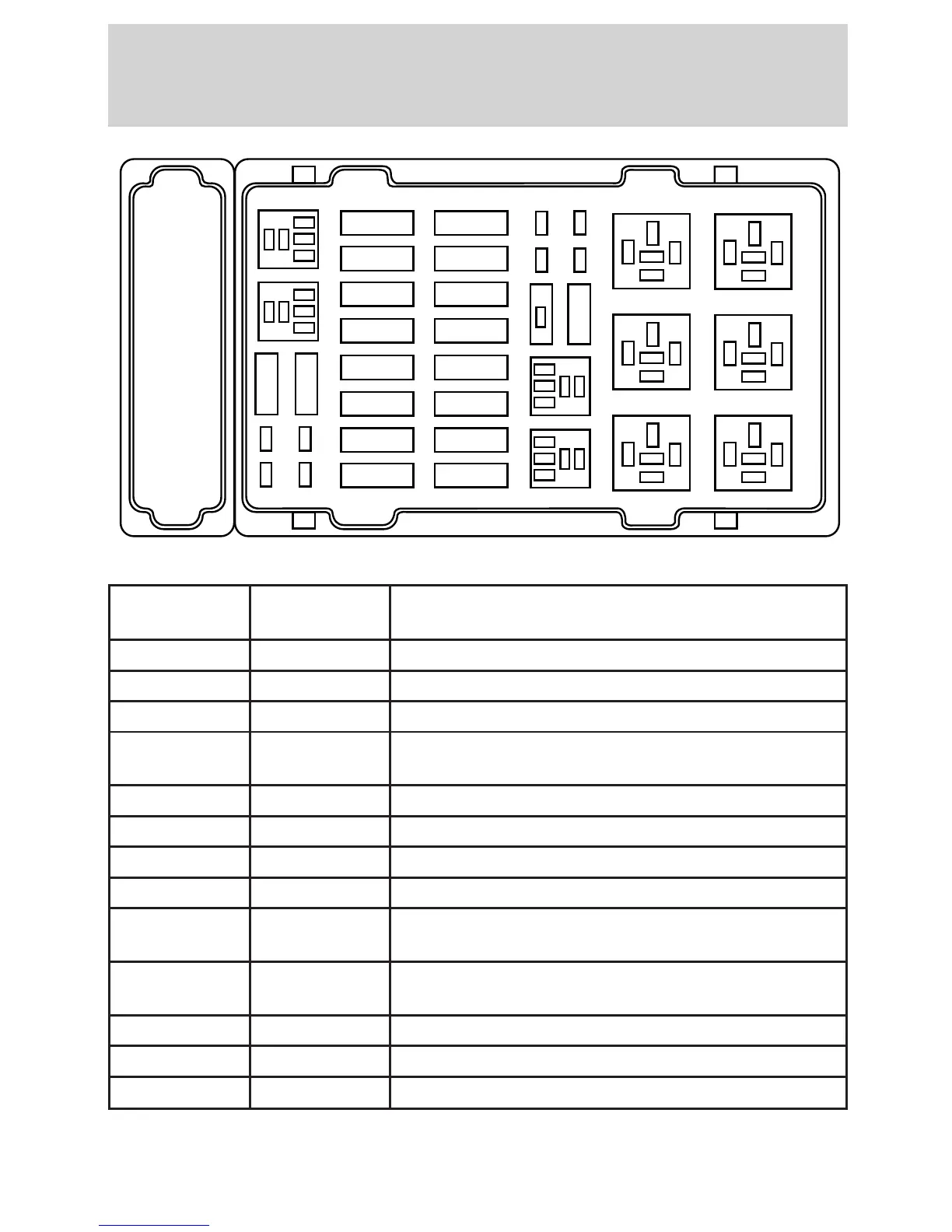

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 — Not Used
2 — Not Used
3 — Not Used
4 10A* PCM Keep Alive Memory, Instrument
Cluster
5 10A* Right Trailer Turn Signal
6 10A* Left Trailer Turn Signal
7 — Not Used
8 60A** I/P Fuses 5, 11, 23, 38, 4, 10, 16, 22, 28
9 30A** PCM Power Relay, Engine Compartment
Fuse 4
10 60A** Auxiliary Battery Relay, Engine
Compartment Fuses 14, 22
11 30A** IDM Relay
12 60A** Engine Compartment Fuses 26, 27
13 50A** Blower Motor Relay (Blower Motor)
AB
3
2
1
46
57
15141312111098
2322212019181716
24 26
25 27
29
CD
GFE
KJH
28
Roadside emergencies
135
