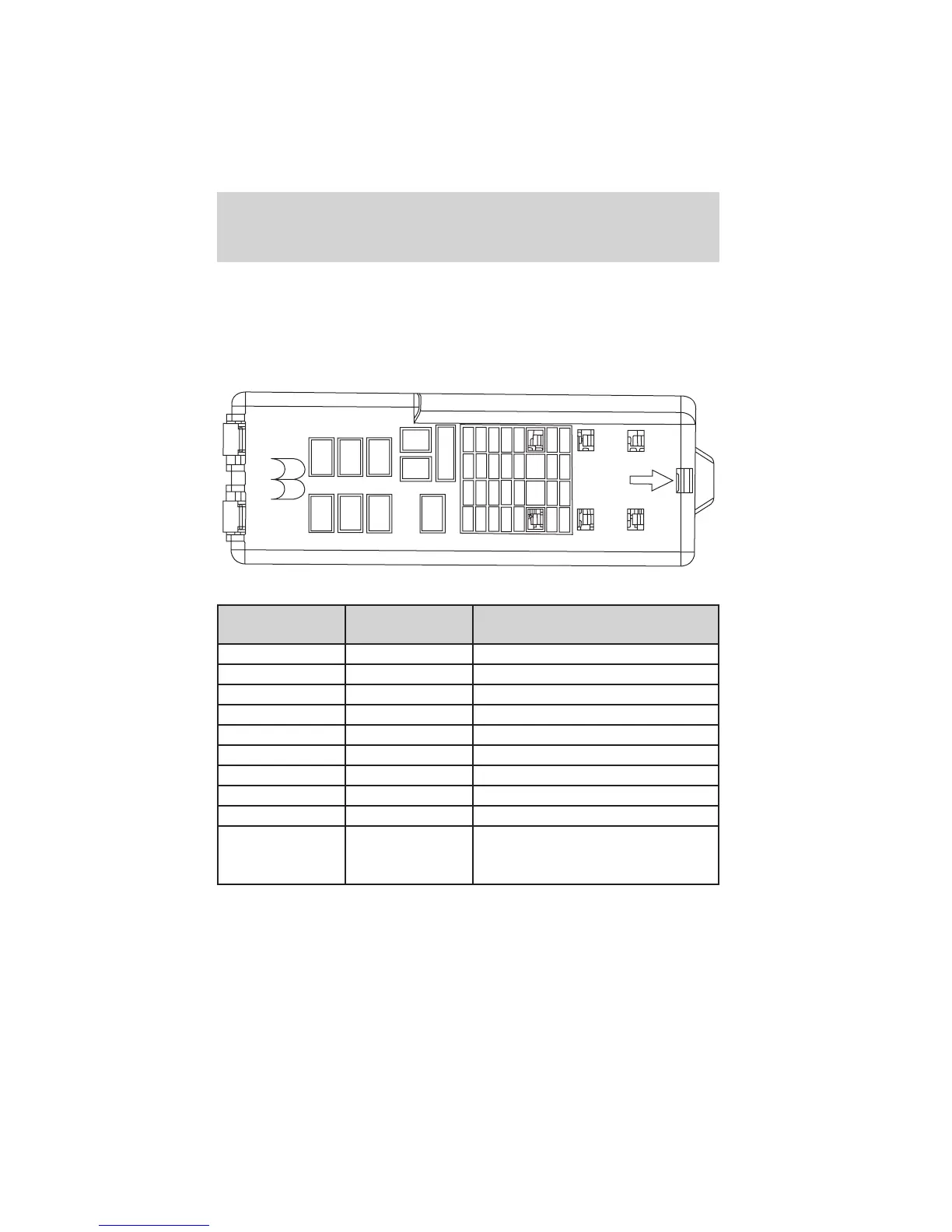

Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows.
Fuse/relay
location
Fuse amp
rating
Passenger compartment fuse
panel description
1 — Accessory delay relay
2 — Driver one touch down relay
3 — Blower motor relay
4 — Flasher relay
5 — Not used
6 — Not used
7 40A Rear defrost grid feed
8 40A Blower motor
9 — Rear defrost relay
10 30A Circuit breaker: Power seats,
Delayed accessory, Adjustable
pedals
12
3
4
5
6
7
8
9
10
11 12
13 14
15
16 17
18
19 20
21 22
23
24
25
26
27 28
29
30
32 33
35
36
37
38
39 40
41
42
PULL TAB
TO RELEASE
SEE OWNERS MANUAL
CONSULTER LA GUIDE
Roadside Emergencies
163
