To remove a fuse use the fuse puller tool provided on the fuse panel box.

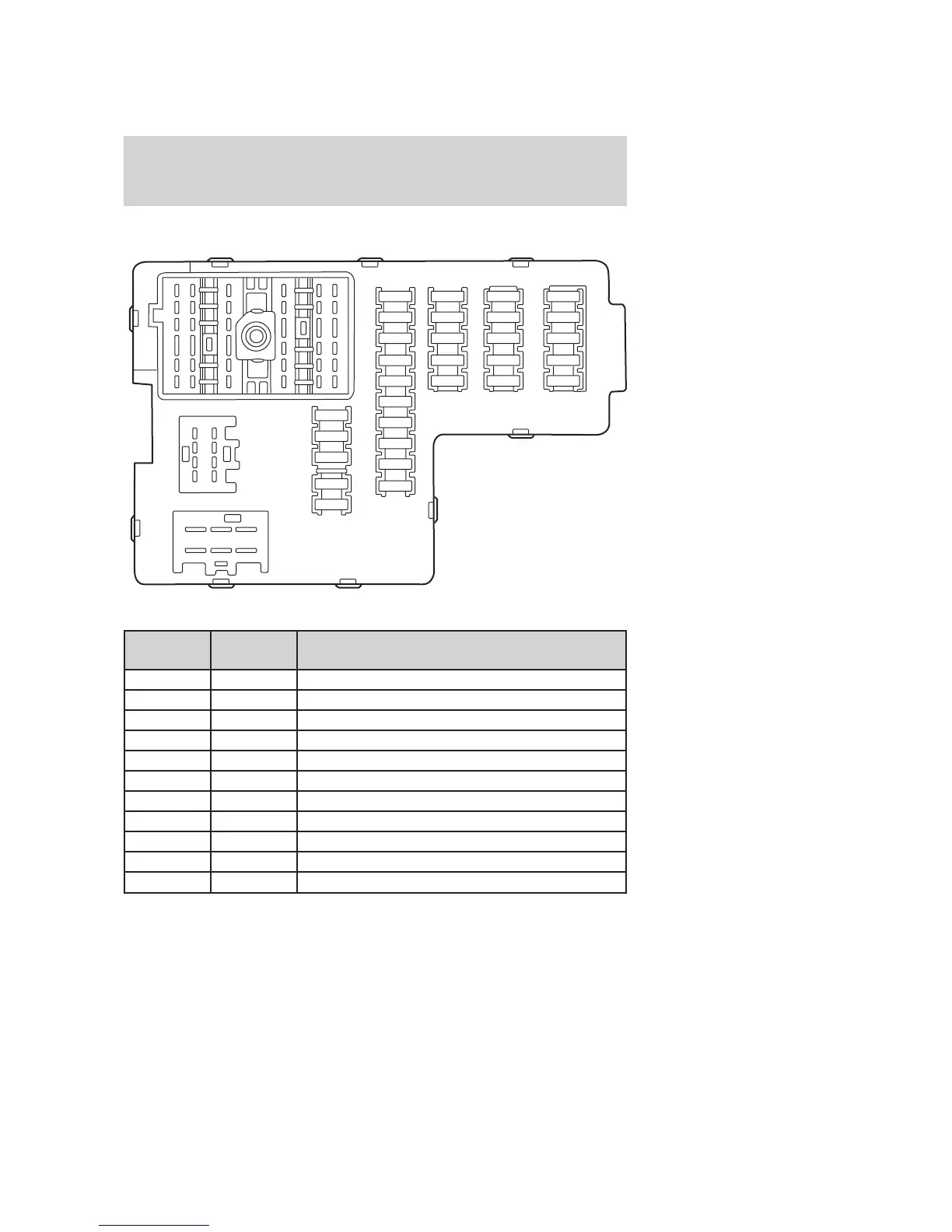

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse Panel
Description
1 30A Memory seat module, Driver power seat
2 20A Moonroof
3 20A Radio, Amplifier, DVD
4 5A Front wiper module
5 15A Flasher relay (Turn, hazards)
6 10A Right horn
7 15A Heated mirrors
8 — Not used
9 — Not used
10 10A Heated backlight relay coil, A/C clutch contact
11 20A Heated seats
