Ford 2004 Ranger User Manual

2.3L engine (if equipped)

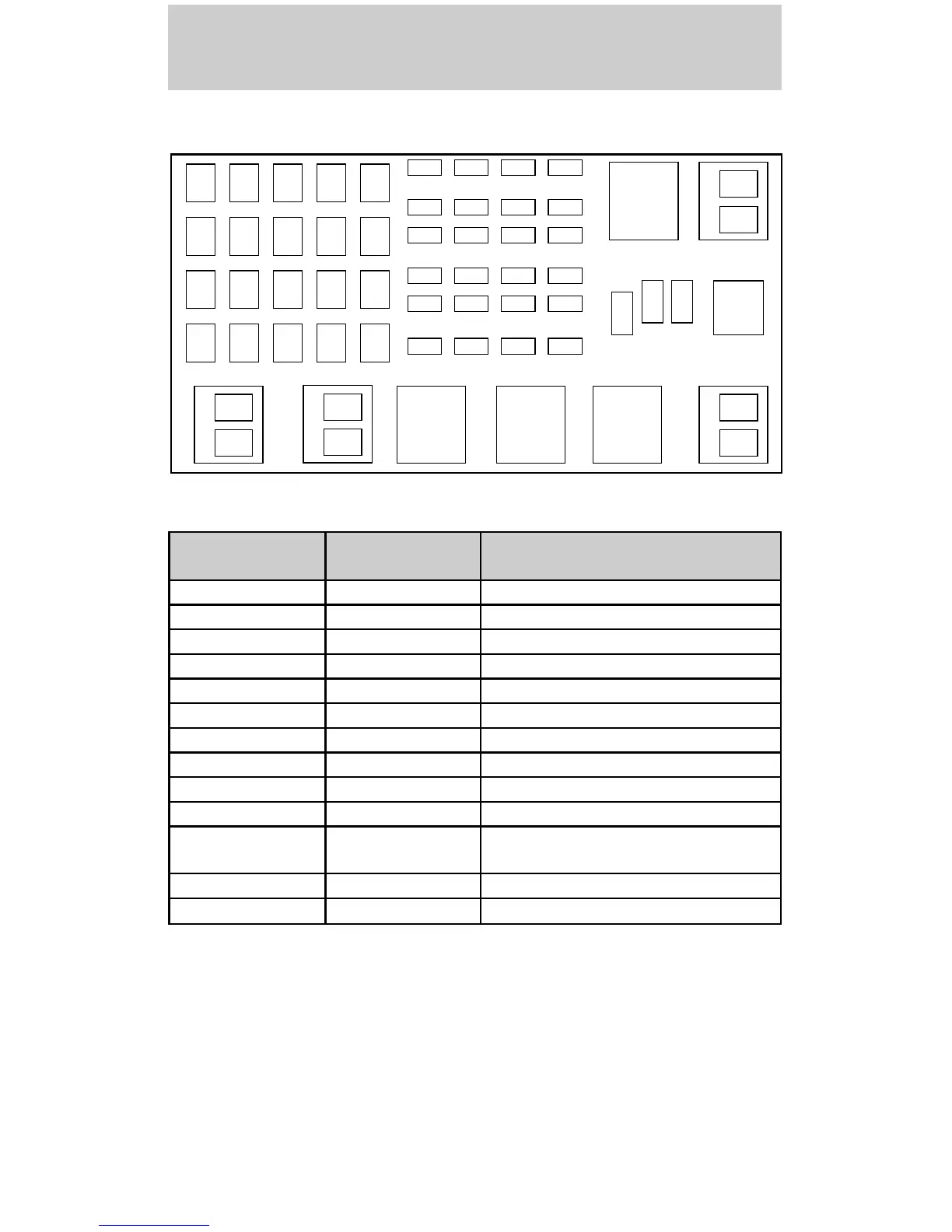

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 50A** Interior fuse panel (SJB)
2 — Not used
3 50A** Interior fuse panel (SJB)
4 — Not used
5 50A** Interior fuse panel (SJB)
6 — Not used
7 40A** Starter relay fuse
8 — Not used
9 40A** Ignition switch
10 — Not used
11 30A** Powertrain Control Module
(PCM), Engine sensors
12 — Not used
13 30A** Blower motor (climate control)
12345
21 22 23 24
25 26 27 28
29 30 31 32
33 34 35 36
37 38 39 40
41 42 43 44
678910
55
4948
54
5352
51
56
56 B
56 A
50
50 B
50 A
4745
45 B
45 A
46
46 B
46 A
11 12 13 14 15
16 17 18 19 20
2004 Ranger (ran)
Owners Guide (post-2002-fmt)
USA English (fus)
Roadside Emergencies
139
