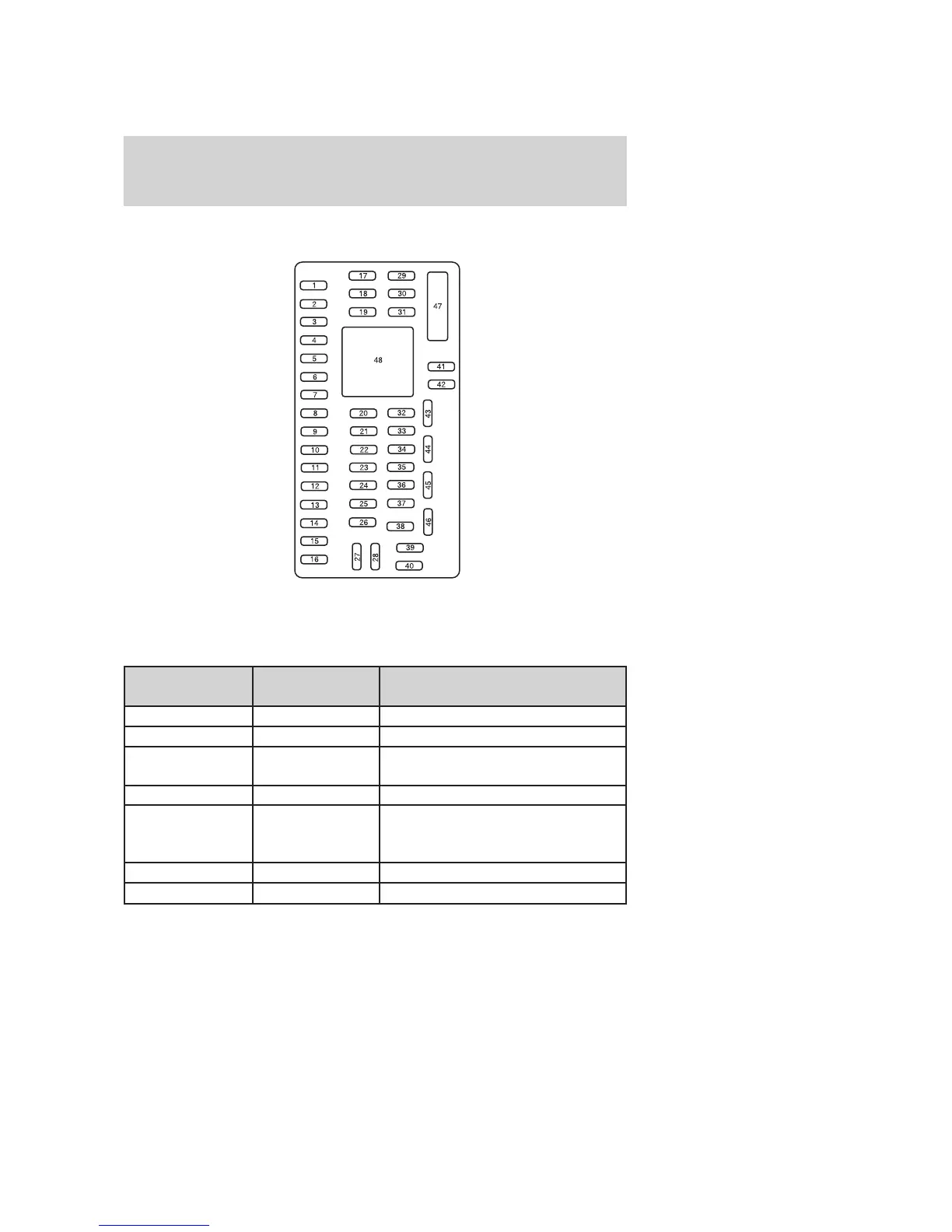

Passenger compartment fuse panel
The fuse panel is located under the instrument panel to the left of the
steering wheel.
The fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 30A Driver smart window motor
2 15A Not used (spare)
3 15A Family entertainment system
(FES)
4 30A DC/AC inverter
5 10A Passenger compartment fuse
panel logic power, Keypad
illumination, BTSI
6 20A Turn signals
7 10A Low beam headlamps (left)
2009 Flex (471)
Owners Guide, 2nd Printing
USA (fus)
Roadside Emergencies
288
