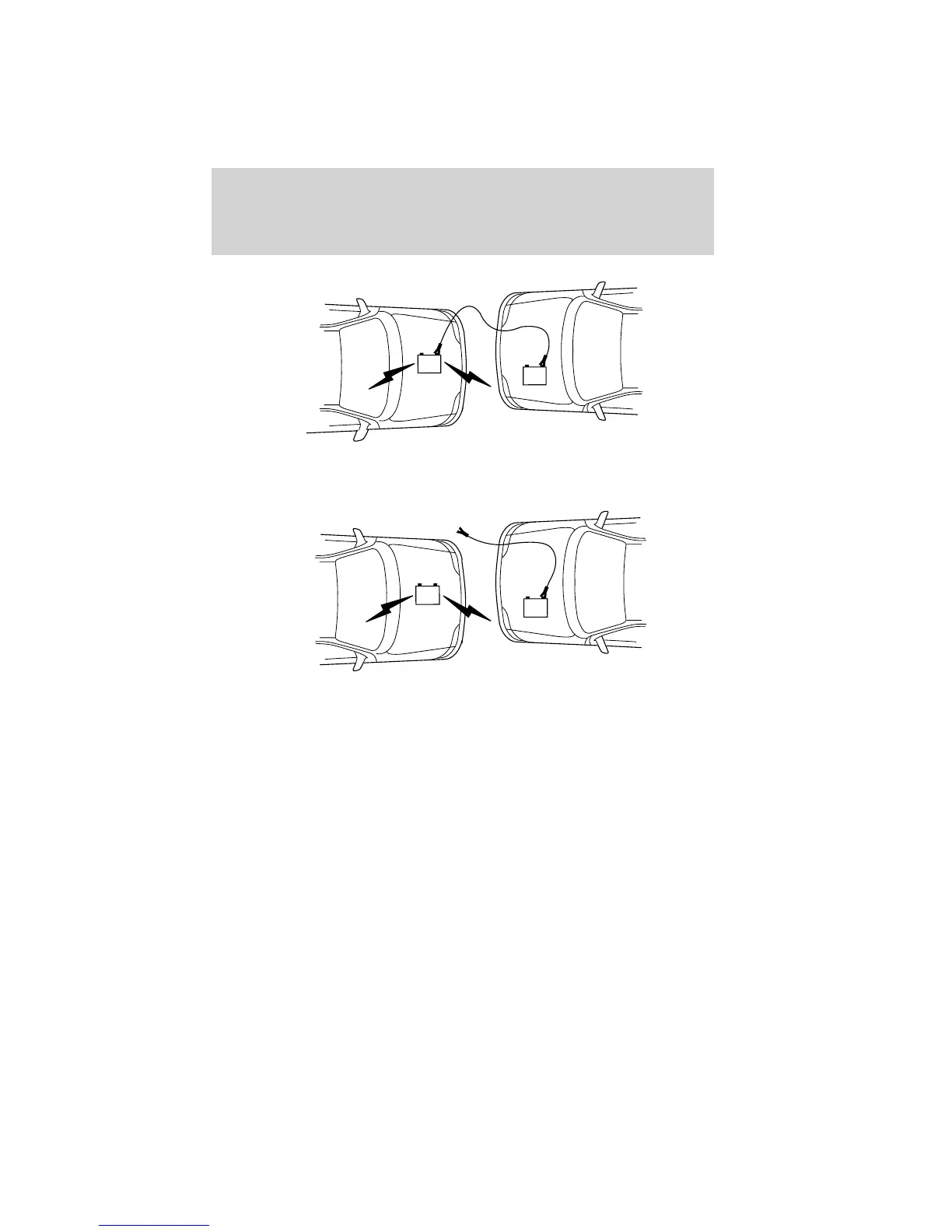

3.
Remove
the
jumper
cable
from
the
positive
(+)
terminal
of
the
booster
vehicle’
s
battery
.
4.
Remove
the
jumper
cable
from
the
positive
(+)
terminal
of
the
disabled
vehicle’
s
battery
.
After
the
disabled
vehicle
has
been
started
and
the
jumper
cables
removed,
allow
it
to
idle
for
several
minutes
so
the
engine
computer
can
relearn
its
idle
conditions.
+
–
+
–
+
–
+
–
