Ford 2010 Transit Connect - Page 191

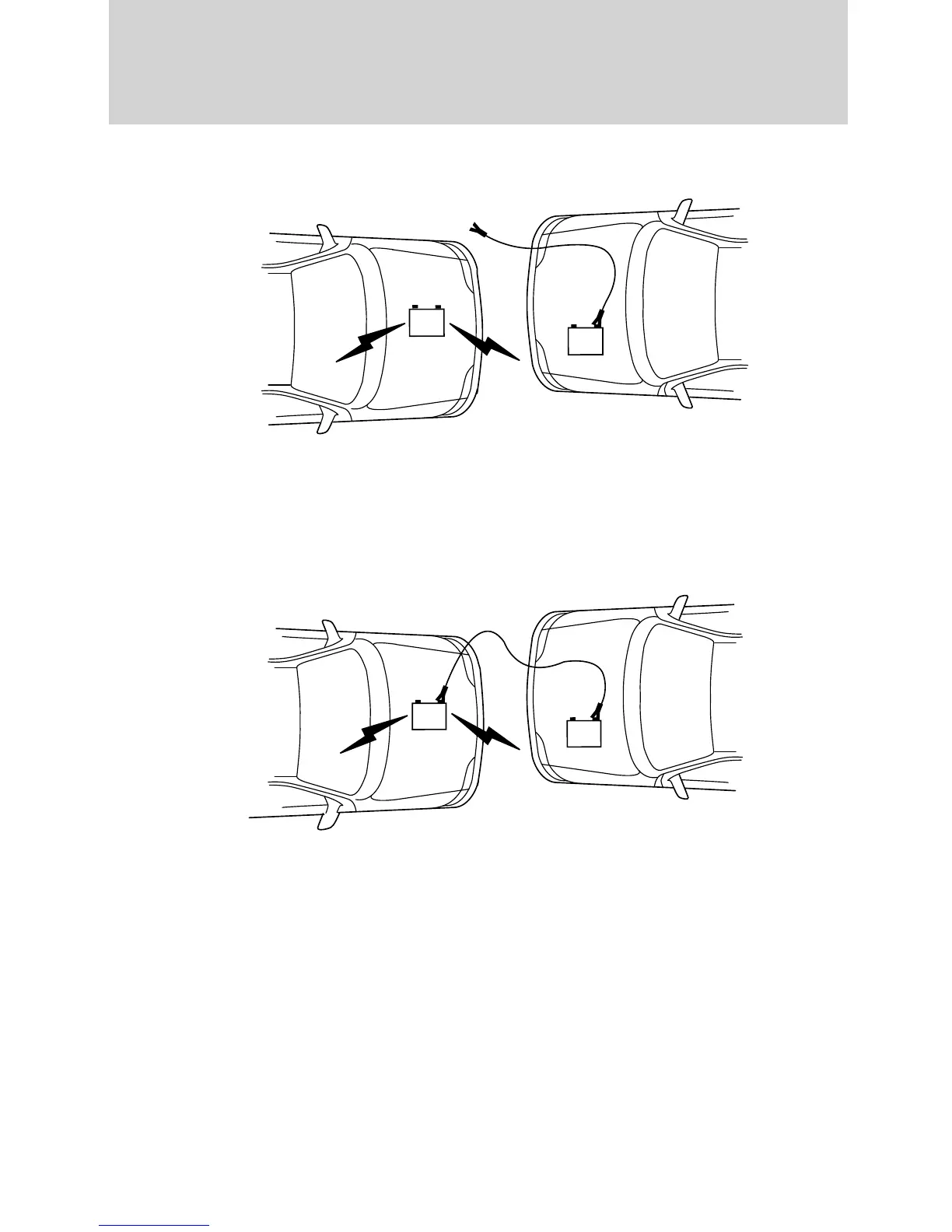

Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note: In the illustrations, lightning bolts are used to designate the
assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
+
–
+
–
+
–
+
–
Roadside Emergencies
191
2010 Transit Connect (tst)
Owners Guide (own2002), 1st Printing
USA (fus)
