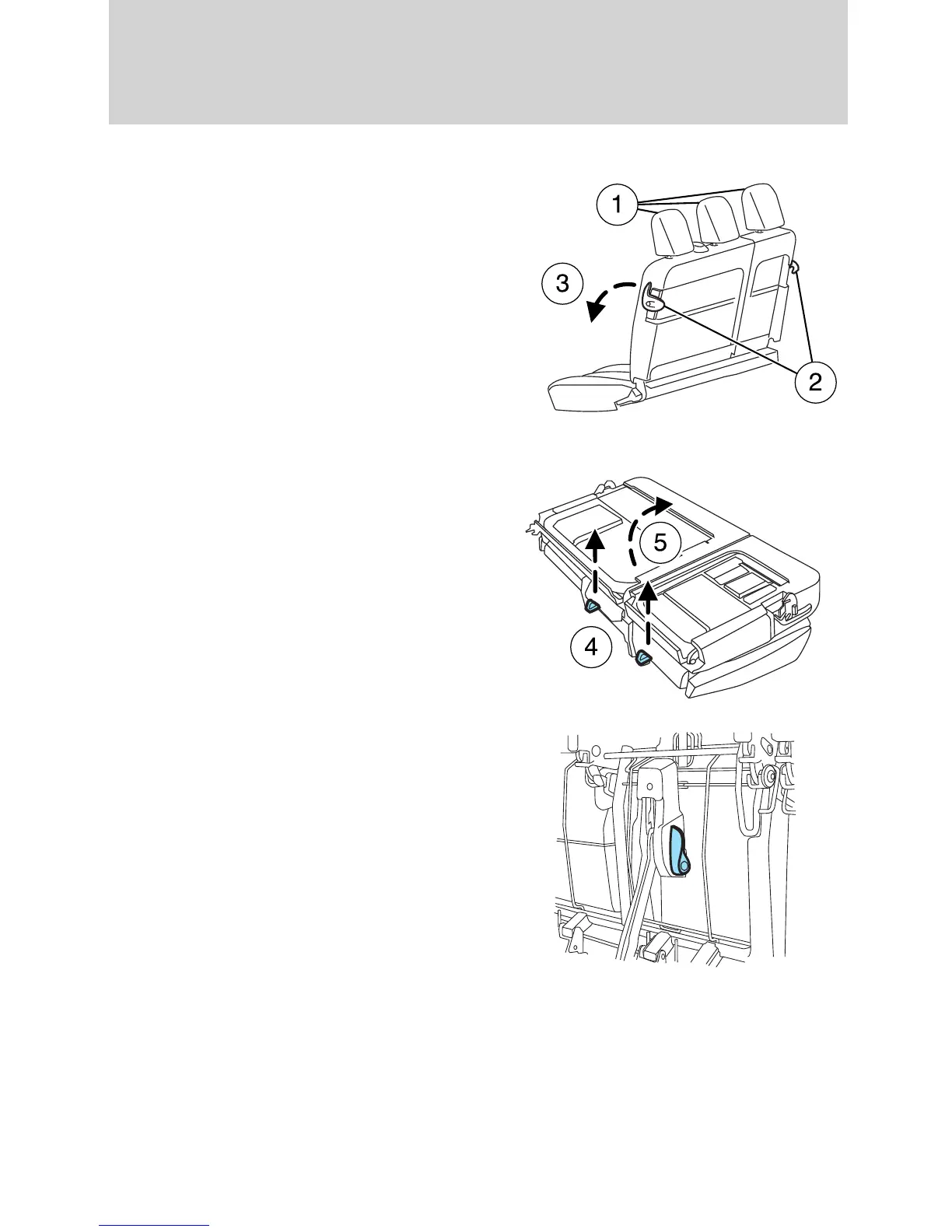

To lower both seatbacks:
1. Remove all head restraints. Refer
to Adjustable rear head restraints
in this chapter.
Note: Place the head restraint
underneath the back of the front
seat for storage.
2. Pull the levers on the side of the
seatback.
3. Fold the seatback forward.
To place the seat in the tumble position:
4. Pull the release straps up.
5. Fold the seat forwards until the
lever is automatically locked and
you hear a click.
When raising the seatback(s), make
sure the lever is locked and you
hear the seat latch into place.
Seating and Safety Restraints
78
2010 Transit Connect (tst)
Owners Guide (own2002), 1st Printing
USA (fus)
