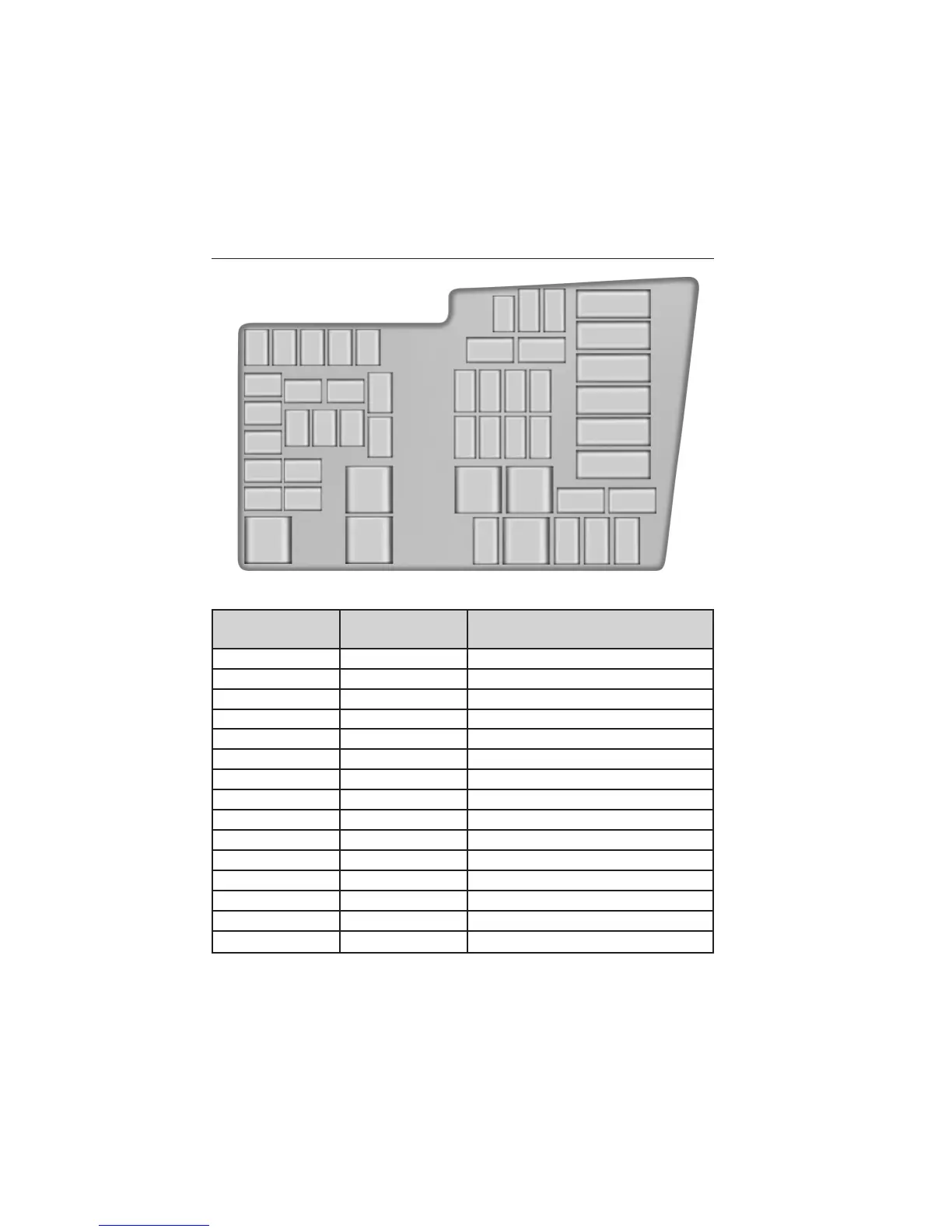

The high-current fuses are coded as follows:
Fuse or relay
number
Fuse amp
rating
Protected components
F1 50A Midi Cooling fan module
F2 50A Midi Electric water pump
F3 50A Midi Body control module supply 1
F4 50A Midi Body control module supply 2
F5 — Not used
F6 — Not used
F7 40A** Anti-lock brake system pump
F8 30A** Anti-lock brake system valve
F9 40A** Vacuum pump
F10 40A** Heater blower motor
F11 30A** Engine management
F12 — Not used
F13 25A** Powertrain control module relay
F14 20A** Rear wiper
F15 — Not used
F1
F2
F3
F4
F5
F6
F7
F8
F9
R6
R7
R3
R1
R2
R4
R5
R8
R
11
R10
R9
F11F13F15
F10
F12F14F16
F19
F20F21F24F30F31
F32
F33
F34
F35
F36
F29
F28
F27 F26 F23
F22 F17
F18
R12
R13R14
F25
