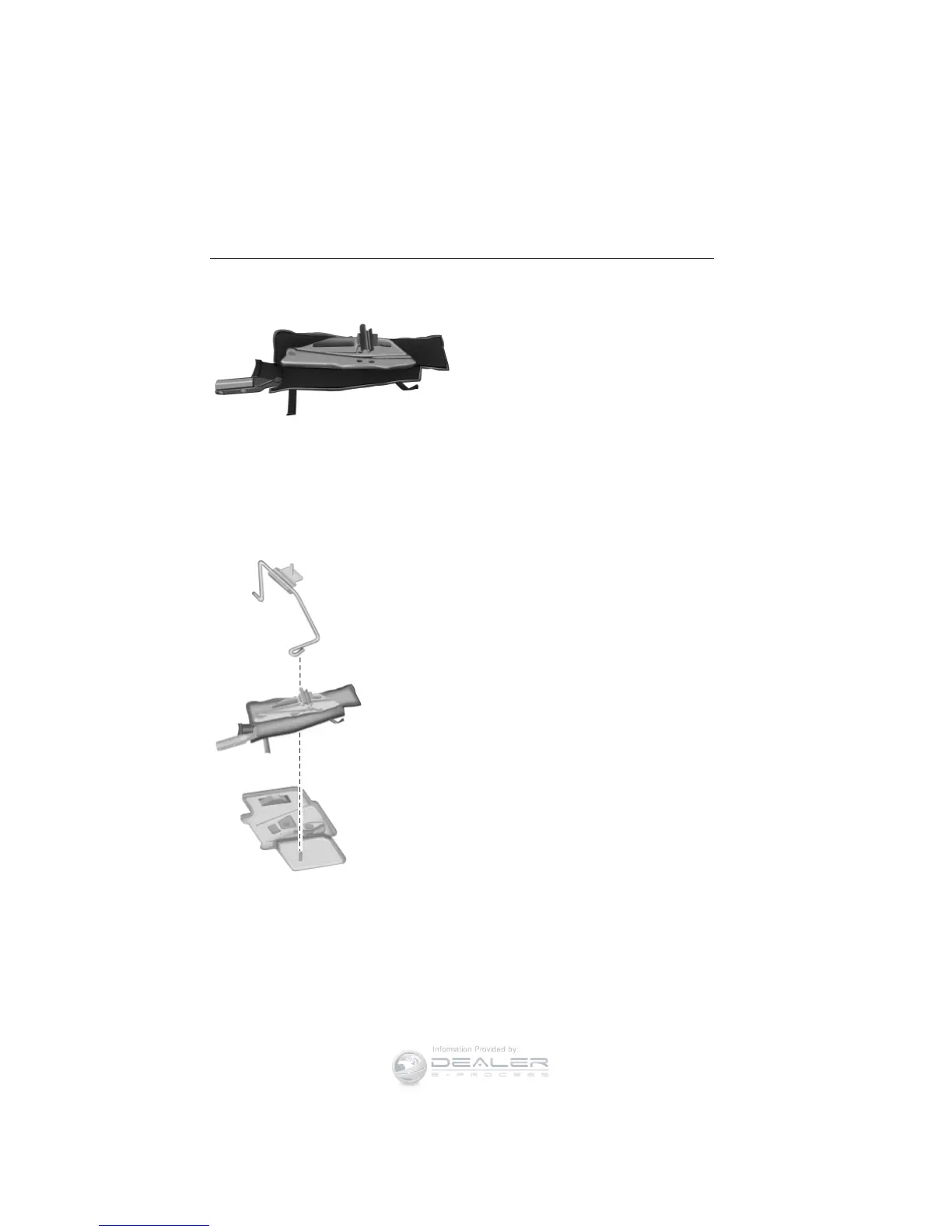

Stowing the tire and jack
1. Fully collapse the jack, fold the lug
wrench socket into the handle and
place the jack and wrench into the
felt bag as shown. Place the extension
bolt or L-shaped bolt into the
external pocket of the felt bag. Take
care to position the jack as shown to
ensure that the locating holes in the
jack base can be placed on the
locating tabs of the jack mounting
bracket in the spare tire tub.
2. Securely close the wrench compartment and the jack bag using the
VelcroåØ strips.
3. Place the jack kit on the angled bracket in the spare tire tub, using the
locating tabs to position the jack correctly.
4. Insert the straight end of the jack retention
bracket through the eyelet of the angled bracket
and swing the retention bracket over the jack.
With the jack in place, place the looped end of
the retention bracket over the threaded stud in
the trunk floor and secure it with the plastic
wing nut.
