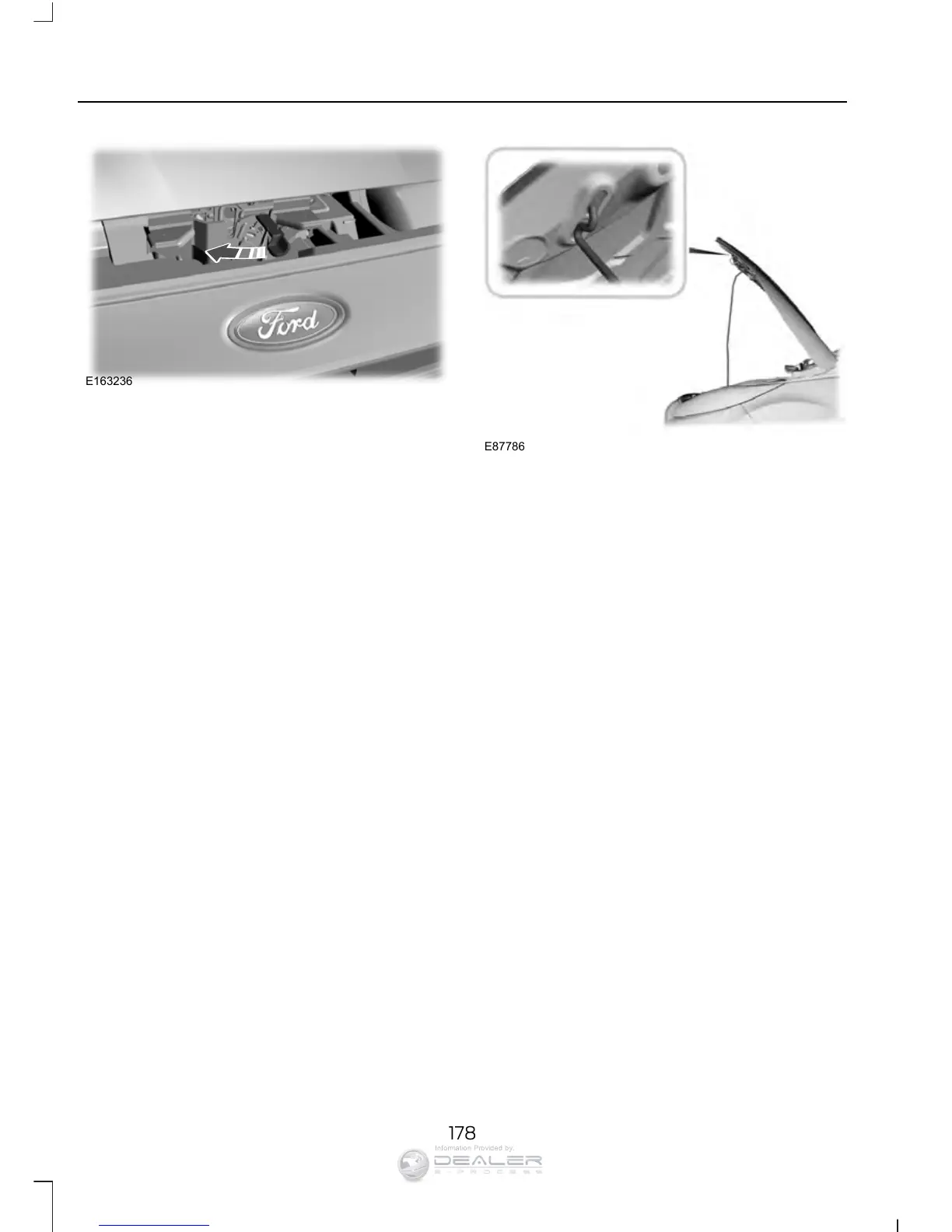

E163236

3. Move the catch to the left to release

the hood.

E87786

4. Open the hood and support it with the

hood strut.

Closing the Hood

1. Remove the hood strut from the catch

and secure it correctly in the clip.

2. Lower the hood and allow it to drop

under its own weight for the last 8-12

in (20-30 cm).

Note: Make sure that the hood is correctly

closed.

178

Fiesta (CCT) Canada/United States of America, enUSA, First Printing

Maintenance
