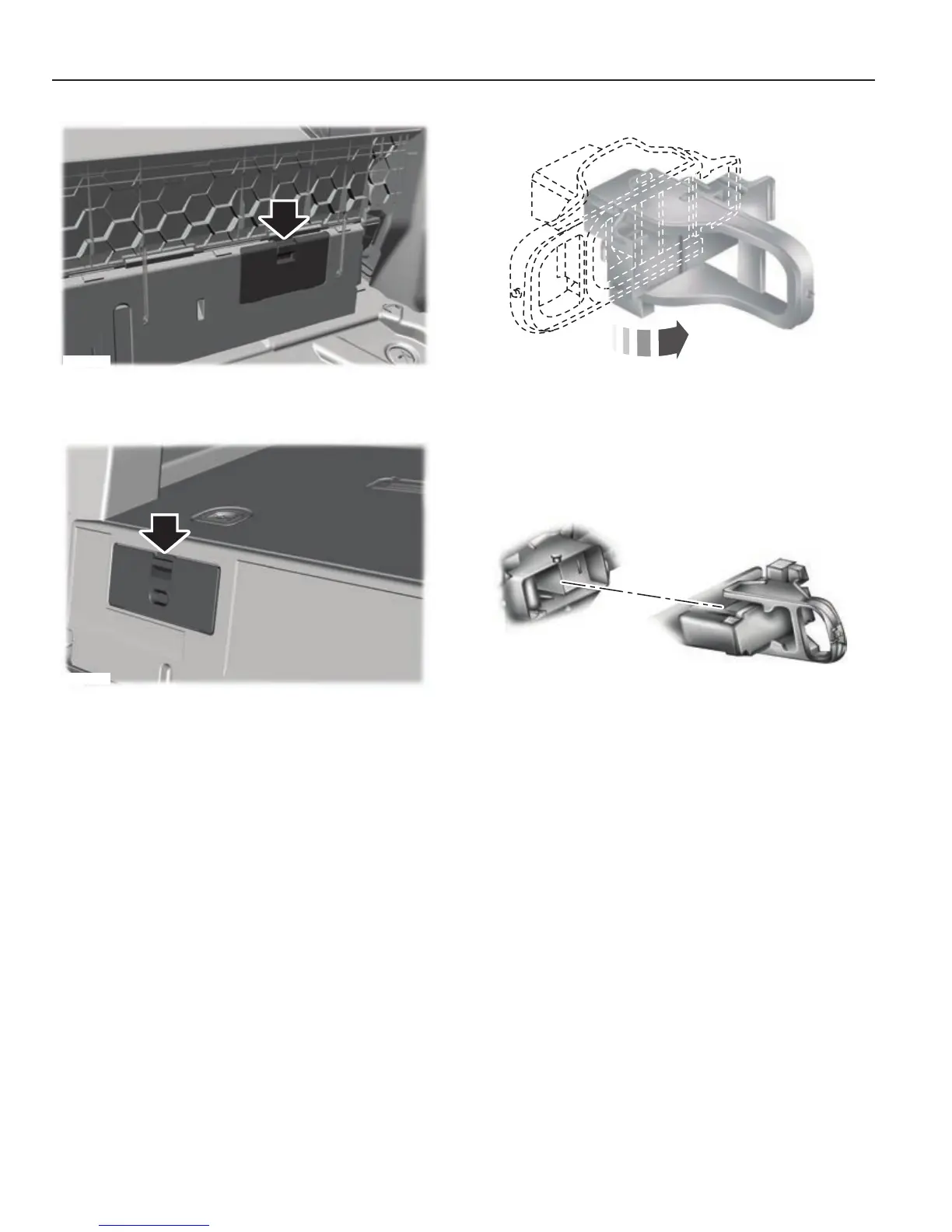

E163537
Service disconnect location for non-Energi
vehicles.
E163538
Service disconnect location for Energi
vehicles.
Disabling the High-Voltage Battery
1. Fold down the rear seats and remove
the cover panel.
2. Locate the access door and remove
the plastic cover.
E147234
3. Slide the handle on the service
disconnect outboard to the right. For
Energi vehicles slide the handle
outboard and to the left.
E146133
4. Pull the handle toward you and remove
the circuit from the vehicle to disable
the high-voltage battery.
Reactivating the High-Voltage Battery
Note: If you have manually disconnected
your high-voltage shut off circuit you will
need to reconnect the circuit before it can
be reactivated. The vehicle will detect if the
electrical system is safe and reactivate
automatically.
148
High Voltage Battery
