5. Stored energy / liquids / gases / solids
PLACE COPY HERE
PLACE COPY HERE
PLACE COPY HERE
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
Laminated Safety Glass
Toughened Safety Glass
If occupant removal is necessary, always use caution when cutting near the vehicle High Voltage system
components. Do not cut any of the High Voltage under vehicle or under hood cabling (all High Voltage
cabling is orange). High voltage cabling runs underneath the vehicle, from the High Voltage battery under
the left hand side of the vehicle to the underhood compartments. Refer to the diagram on page 1 for no
cut zones.
NOTE: After a collision vehicle components may not function properly such as the steering wheel, power
seats, and other electrical and mechanical components. If these components are not functioning properly
and prevent access to occupants extraction may be required.

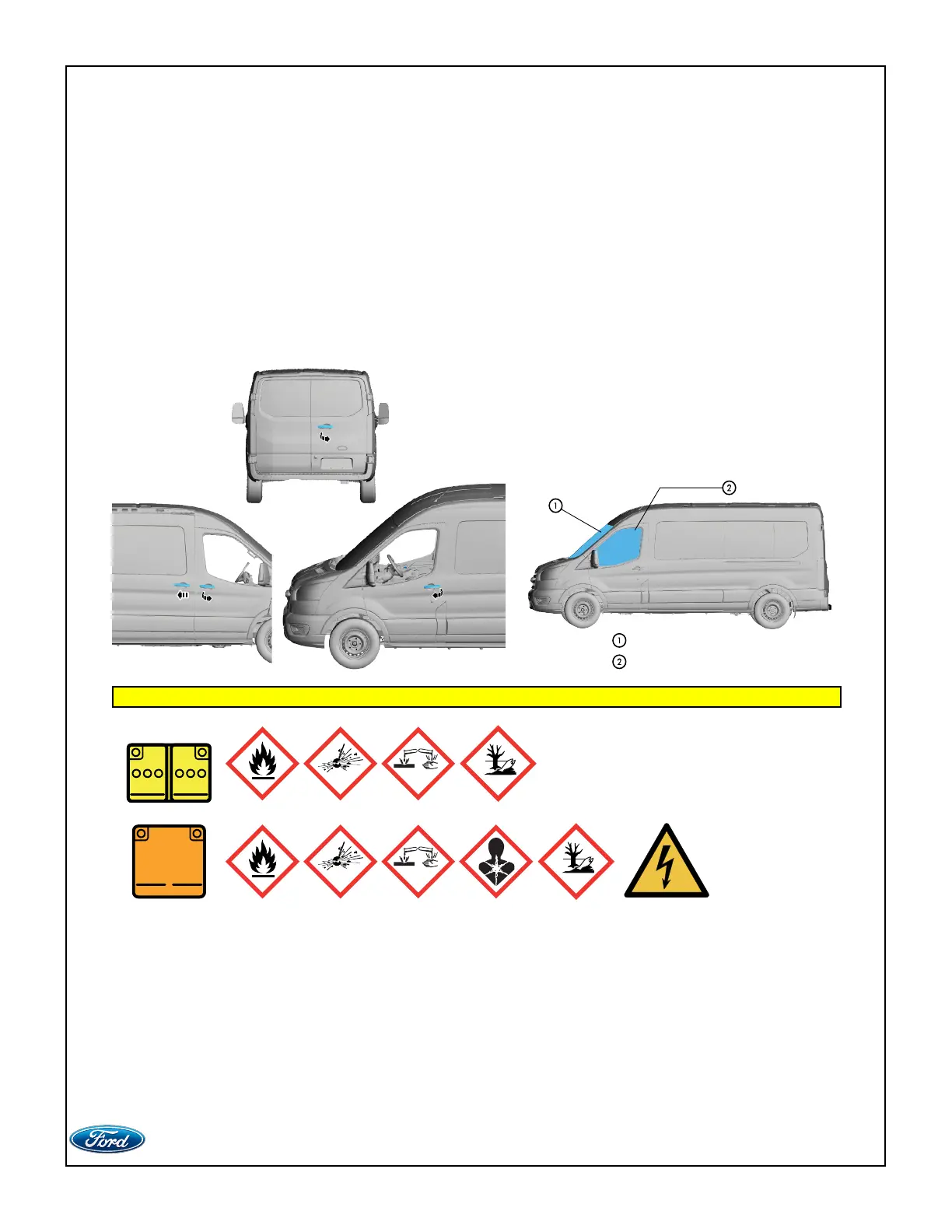

The illustration below shows the exterior and interior door handle positions and vehicle glass.
PLACE COPY HERE
PLACE COPY HERE
PLACE COPY HERE
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
STUD FOR
MISSING NUT
12 V
400 V
Refer to the vehicle overview illustration on Page 1, for location reference of the high voltage
battery, 12V battery, and other vehicle component locations.
