313
[SV26650( E )03/93]
For E-250 (over 8500 GVWR [3855 kg]), and
E-350 vehicles, rotate the tires at 5,000 miles
(8,000 km), then at 15,000 miles (24,000 km), and
then every 15,000 miles (24,000 km) thereafter.
*
[SV26660( EF )03/94]
If your light truck has dual rear wheels, you can
rotate the front tires side to side without
disturbing the rear tires.
*
[SV26700(BEF )07/92]
Rotate the tires according to the following
diagram. If you notice that the tires wear
unevenly, have them checked. If your light truck
has a temporary spare tire, do not include it in
the tire rotation pattern.
*
[SV26750(BEF )03/90]
In situations where the tires differ from front to
rear (snow/traction), simply rotate using a side
to side pattern.
*
[SV26800(BEF )06/93]

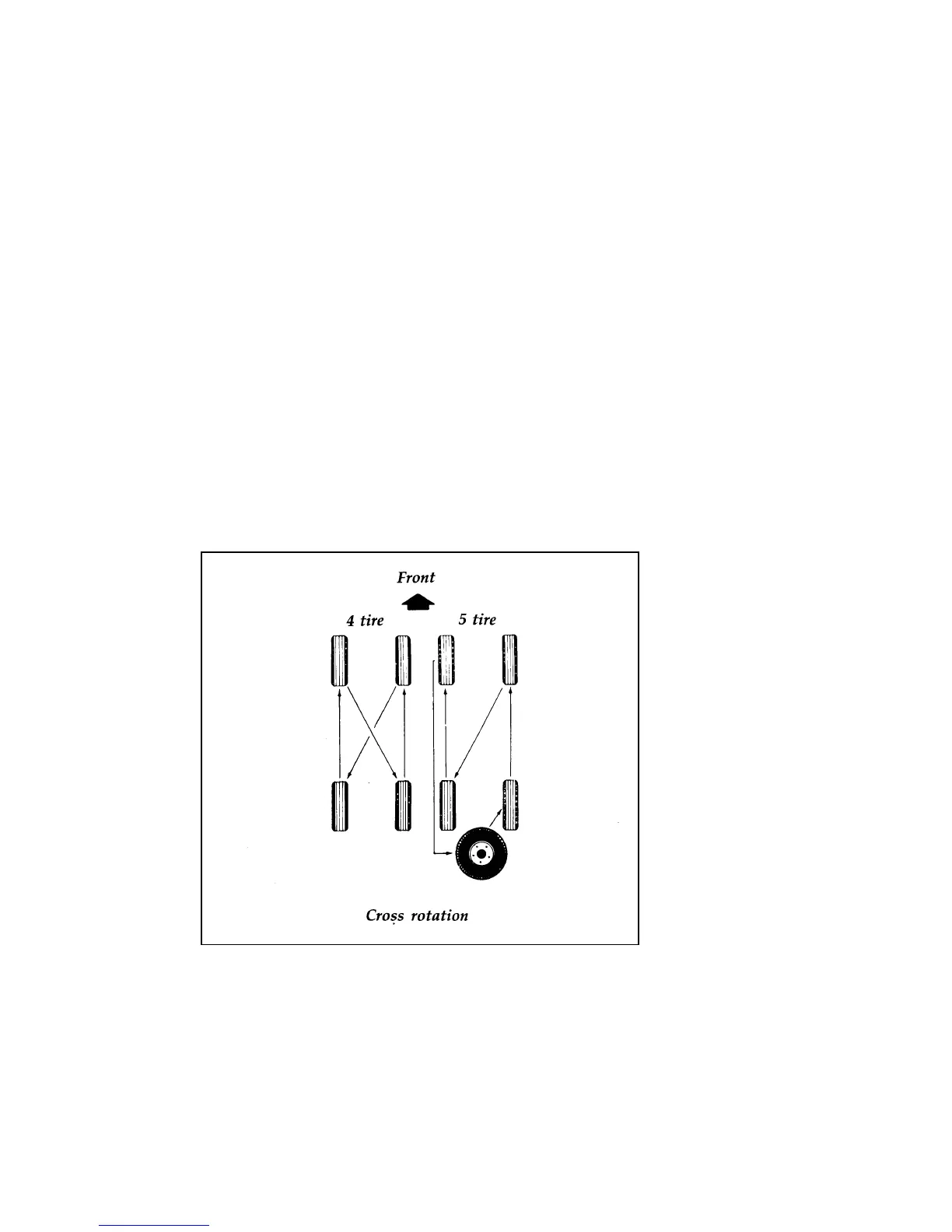

half page art:0020364-A
Tire rotation pattern
File:14ltsve.ex
Update:Wed Apr 17 08:40:13 1996
