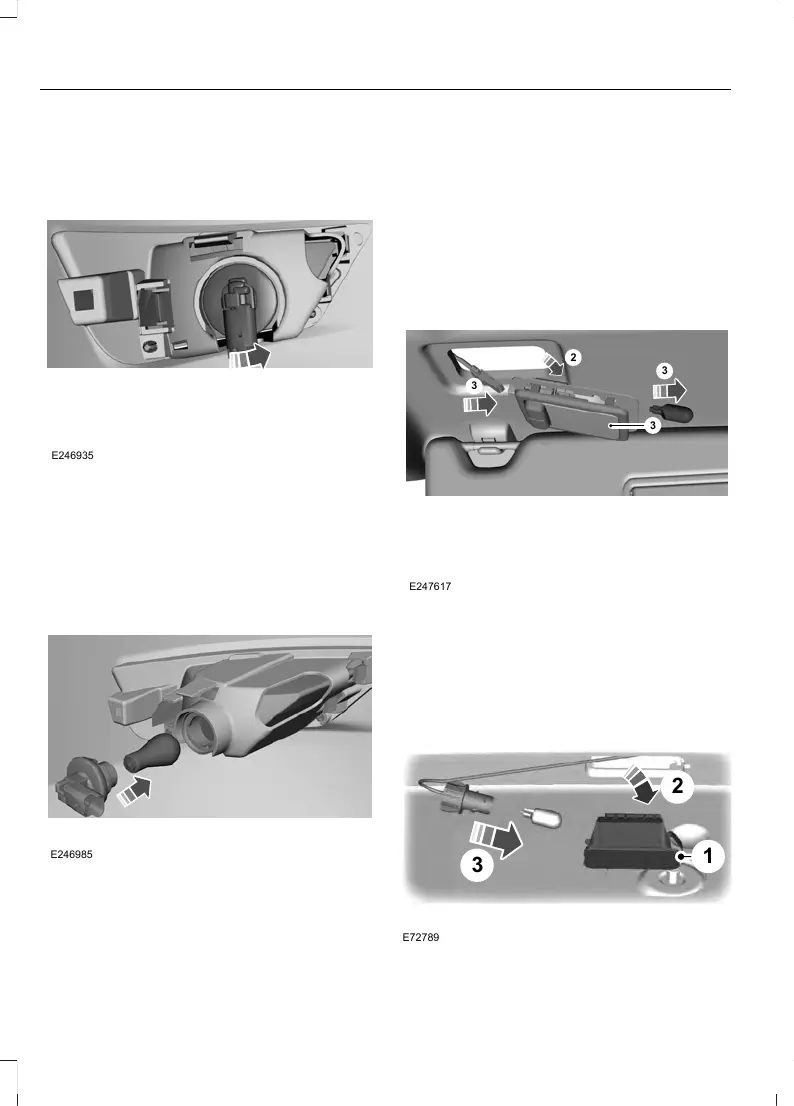

E246935
Turn the bulb holder anti-clockwise and
remove the bulb holder from the housing.
E246985
Remove the bulb from the holder.
Gently press the new bulb into the bulb
holder, install new bulb and holder into the
housing, turning it clockwise.
Central High Mounted Brake Lamp
Note: On some vehicles the lamps are LED.
They are not serviceable items, please
consult a Ford Dealer if they fail.
Vanity lamp (If Equipped)
3
2
3
3
E247617
1. Carefully release the spring clip.
2. Remove the lamp.
3. Turn the bulb anti-clockwise and
remove it.
Number Plate Lamp (If Equipped)
3
2
1
E72789
1. Carefully release the spring clip.
162
EcoSport (CBW) India, Vehicles Built From: 14-08-2017, GN15-19G219-ZCA enIND, Edition date: 201708, First Printing
Maintenance
