Ford Escape 2001 - Page 8

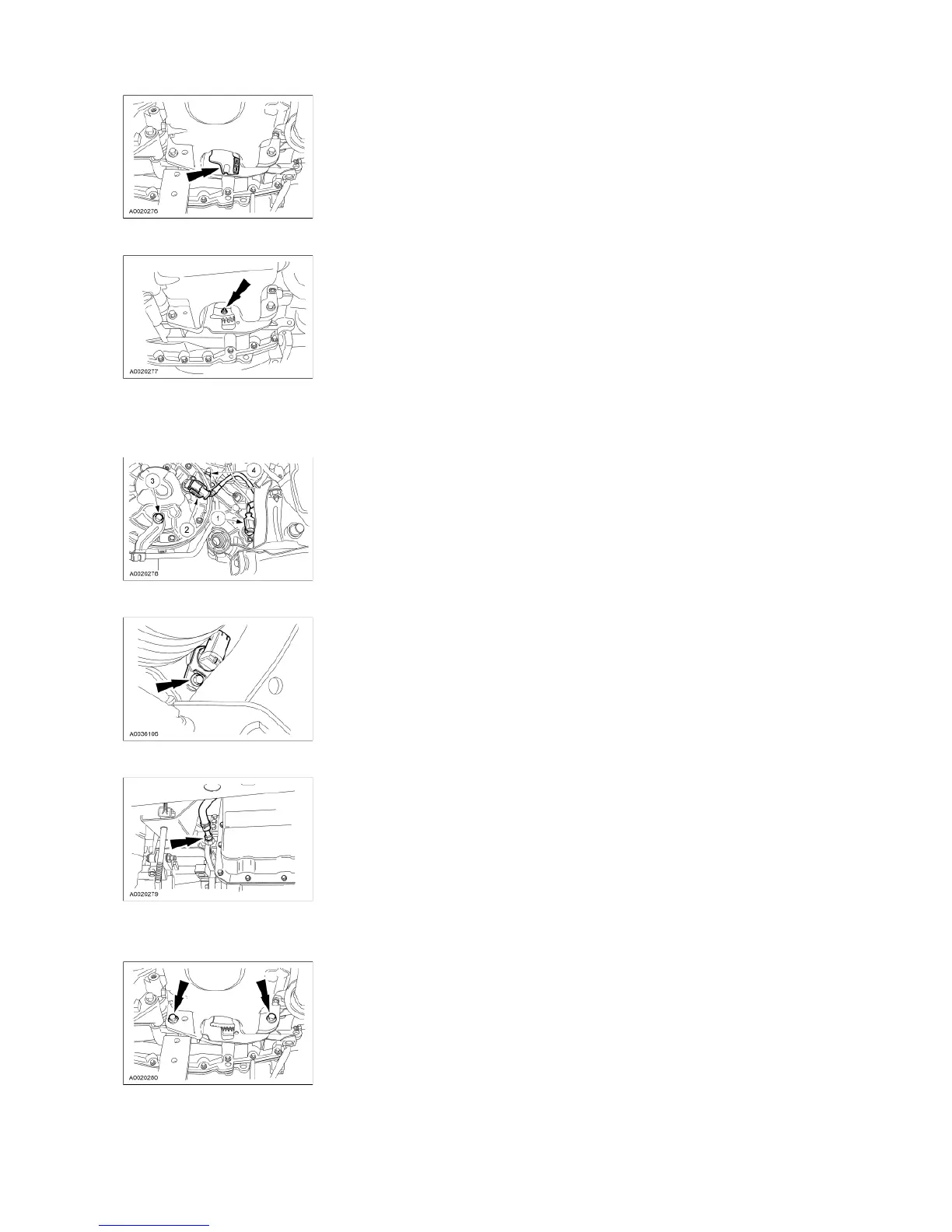

46. Remove the four flexplate nuts.
47. Remove the fluid cooler tube.
1. Disconnect the output shaft speed (OSS) sensor.
2. Disconnect the turbine shaft speed (TSS) sensor (white connector).
3. Remove the bolt.
4. Remove the fluid cooler tube and position it aside.
48. Remove the OSS sensor.
49. Remove the fluid cooler line.
50. Install the transmission jack and secure the transaxle to the jack.
51. Remove the bolts.
52. Remove the vent tube.
