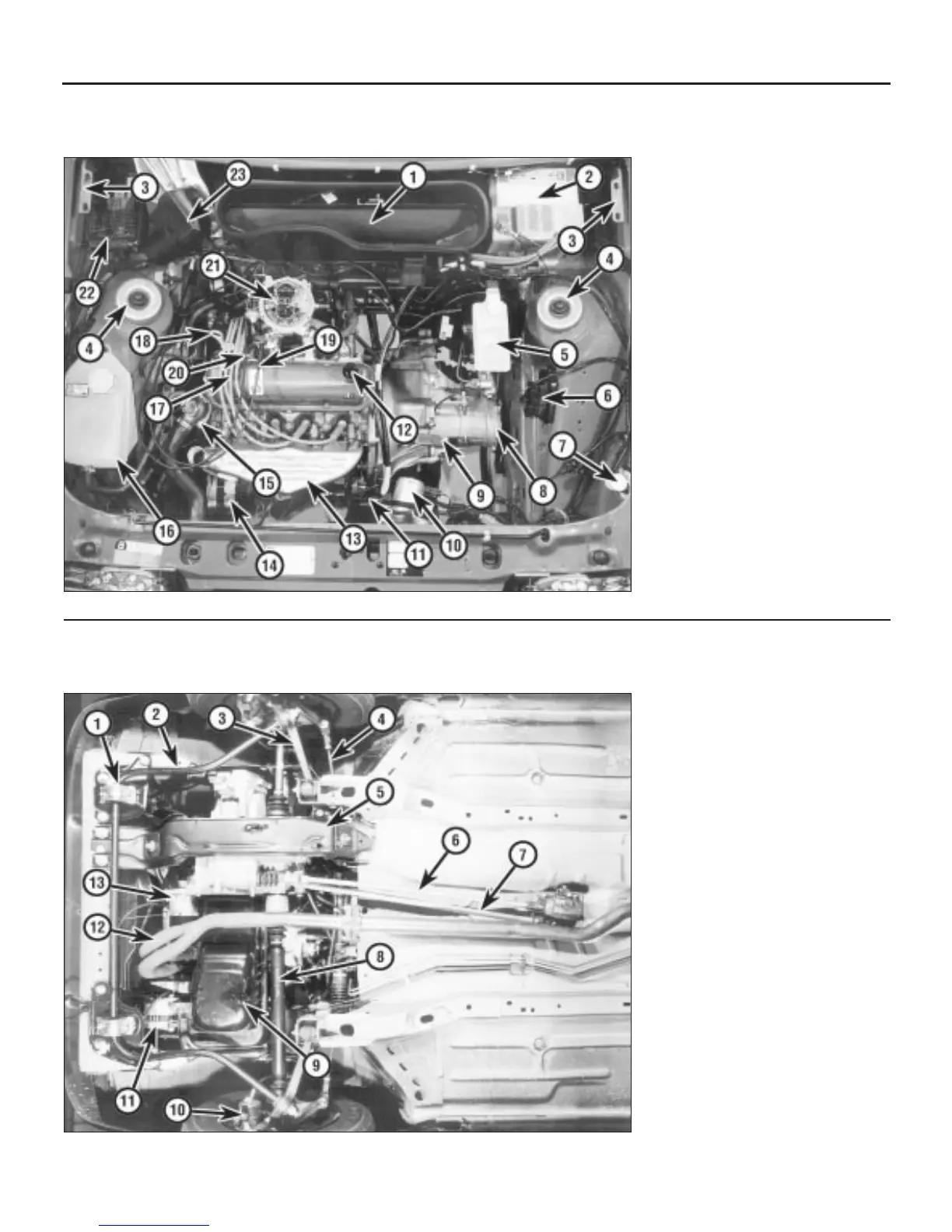

1•6 Maintenance - Component location
1 Ventilation air inlet duct
2 Battery
3 Bonnet hinge
4 Suspension strut upper mounting
5 Brake system fluid reservoir
6 Ignition system ESC module
7 Windscreen washer reservoir filler cap
8 Transmission housing
9 Clutch release lever
10 Cooling fan motor
11 Starter motor
12 Engine oil filler neck (cap removed)
13 Exhaust manifold shield
14 Alternator
15 Coolant thermostat and fan thermal
switch
16 Coolant expansion tank
17 Spark plug HT leads
18 Engine oil dipstick
19 Throttle cable
20 Choke cable
21 Carburettor
22 Fusebox
23 Windscreen wiper motor
Engine and underbonnet components location on 1989 1.3 litre HCS model (air cleaner removed for clarity)
1 Anti-roll bar clamp
2 Anti-roll bar
3 Front suspension lower arm
4 Steering tie-rod
5 Transmission support crossmember
6 Gearchange rod
7 Gearchange stabiliser
8 Driveshaft
9 Engine oil drain plug
10 Brake caliper
11 Alternator
12 Exhaust front pipe
13 Starter motor
Front underbody view of a 1986 1.4 litre Saloon model
