Ford F-150 2006 User Manual

Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
R202 Half ISO relay Fog lamps
R203 Half ISO relay PCM
* Mini fuses ** Cartridge fuses

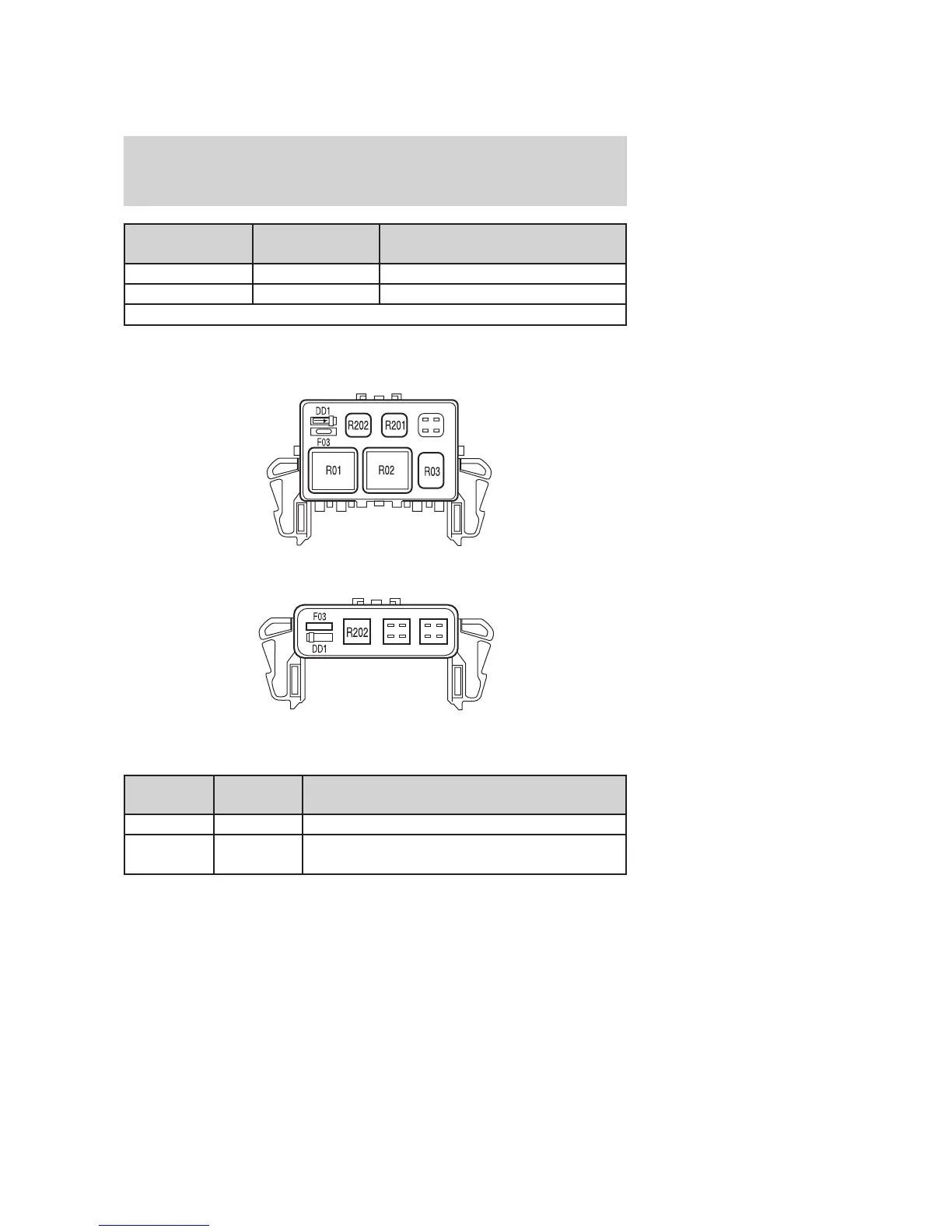

Auxiliary relay box
The relay box is located in the engine compartment on the left fender.
• With Daytime Running Lamp (DRL) and 4x4 options
• Without Daytime Running Lamp (DRL) and 4x4 options
The relays are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Description
F03 5A Clockspring illumination
R01 Full ISO
Relay
4x4 CCW
2006 F-150 (f12)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
244
