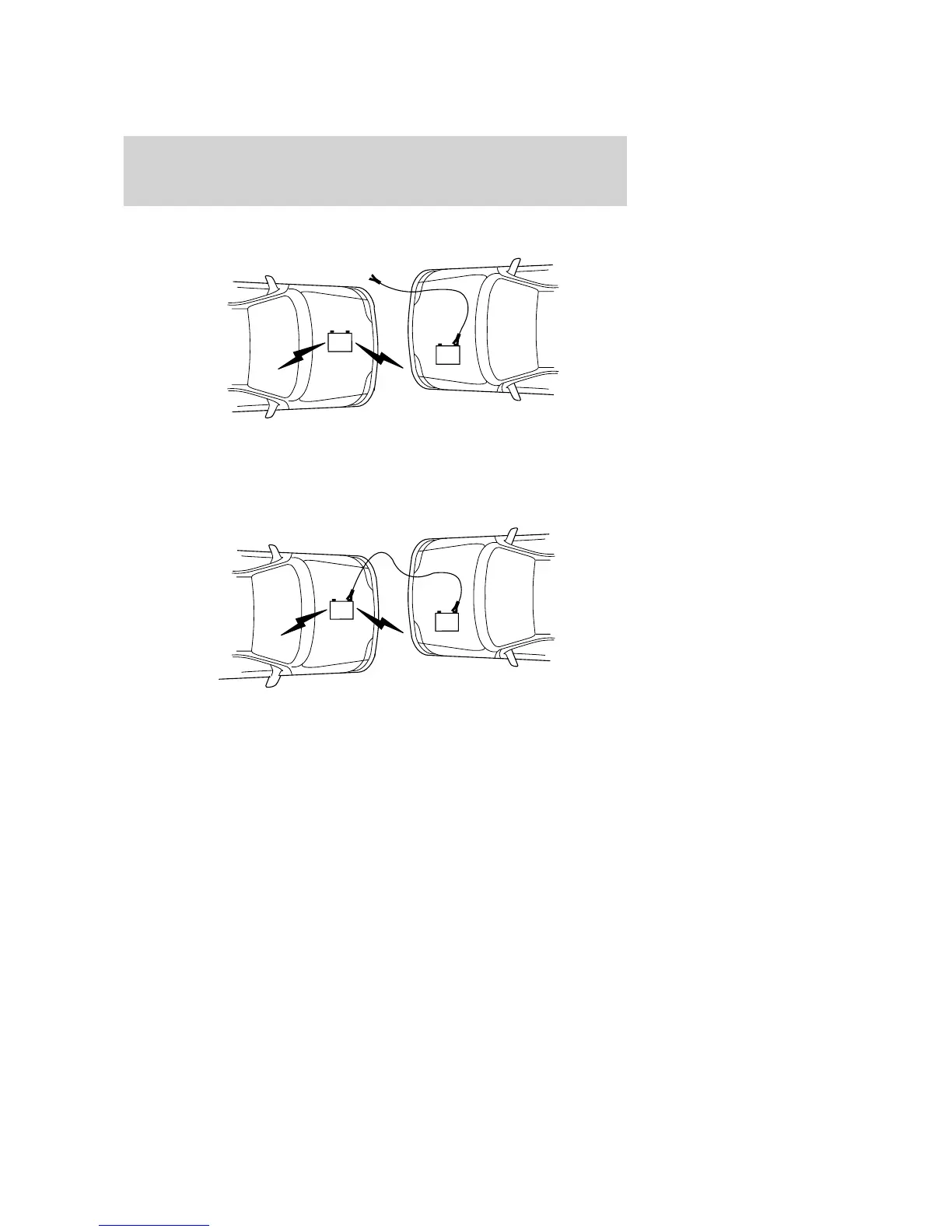

Connecting
the
jumper
cables
1.
Connect
the
positive
(+)
jumper
cable
to
the
positive
(+)
terminal
of
the
discharged
battery
.
Note:
In
the
illustrations,
lightning
bolts
are
used
to
designate
the
assisting
(boosting)
battery
.
2.
Connect
the
other
end
of
the
positive
(+)
cable
to
the
positive
(+)
terminal
of
the
assisting
battery
.
+
–
+
–
+
–
+
–
2007
F-250/350/450/550
(f23)
Owners
Guide
(post-2002-fmt)
USA
(fus)
Roadside
Emergencies
234
233
235
Table of Contents
Default Chapter
1
Table of Contents
1
Introduction
4
Safety and Environment Protection
5
Warning Symbols in this Guide
5
Warning Symbols on Your Vehicle
5
Breaking-In Your Vehicle
5
Data Recording
6
Cell Phone Use
7
Notice to Owners of Diesel-Powered Vehicles
8
Notice to Owners of Pickup Trucks and Utility Type Vehicles
8
Using Your Vehicle with a Snowplow
8
Using Your Vehicle as an Ambulance
8
Using Your Vehicle as a Stationary Power Source (PTO)
9
Middle East/North Africa Vehicle Specific Information
9
Vehicle Symbol Glossary
10
Instrument Cluster
12
Warning Lights and Chimes
12
Service Engine Soon Light
13
Electronic Throttle Control Light
13
Brake System Warning Light
14
Anti-Lock Brake System Light
14
Airbag Readiness Light
14
Safety Belt Light
14
Transmission Tow/Haul Feature (Automatic Transmission) Light
15
Speed Control Light
15
Turn Signal Light
15
Key-In-Ignition Warning Chime
15
Gauges
16
Speedometer
16
Engine Coolant Temperature Gauge
16
Odometer
17
Trip Odometer
17
Engine Hour Meter
17
Tachometer
18
Engine Oil Pressure Gauge
18
Fuel Gauge
18
Battery Voltage Gauge (Manual Transmission Only)
19
Transmission Fluid Temperature Gauge (Automatic Transmission Only)
19
Entertainment Systems
21
Accessory Delay
21
AM/FM Stereo System
21
Tuner
21
BAL (Balance)
22
BASS (Bass)
22
Setting the Clock
22
AM/FM Stereo/Single CD with Satellite Compatible Sound System
23
Autoset
24
CATEGORY (Satellite Radio, if Equipped)
24
FADE (Fade)
25
SPEEDVOL (Speed Sensitive Volume)
25
AM/FM Stereo with In-Dash Six CD
28
Premium In-Dash Six CD/Satellite Compatible Sound System
28
General Audio Information
32
Radio Frequencies
32
Radio Reception Factors
32
CD/CD Player Care
33
Satellite Radio Channels
34
Satellite Radio Information
34
Satellite Radio Reception Factors
34
Satellite Radio Electronic Serial Number (ESN)
35
Sirius Satellite Radio Service
35
Climate Controls
38
Heater Only System
38
Manual Heating and Air Conditioning
39
Automatic Temperature Control System
41
Automatic Temperature Control System - Operating Tips
43
Lights
44
Autolamp Control
44
Headlamp Control
44
Daytime Running Lamps (DRL)
45
Foglamp Control
45
Flash to Pass
46
High Beams
46
Panel Dimmer Control
46
Aiming the Headlamps
47
Vertical and Horizontal Aim Adjustment (Sealed Beam Headlamps)
47
Vertical Aim Adjustment (Aerodynamic Headlamps)
49
Courtesy/Reading Lamps
50
Map Lamps
50
Turn Signal Control
50
Bulb Replacement
51
Headlamp Condensation
51
Replacing Exterior Bulbs
51
Replacing Headlamp Bulbs (Aerodynamic)
52
Replacing Park/Turn and Sidemarker Lamp Bulbs (Aerodynamic)
53
Replacing Headlamp Bulbs (Sealed Beam)
54
Replacing Park/Turn/Sidemarker Bulbs (Sealed Beam)
55
Replacing Brake/Tail/Turn/Back-Up Lamp Bulbs - F–250/F–350 Only
56
Replacing Brake/Tail/Turn/Back-Up Lamp Bulbs - F–450/F–550 Only
56
Front Clearance and Identification Lamp Bulbs
57
Replacing Cargo Lamp and High-Mount Brakelamp Bulbs
57
Replacing Foglamp Bulbs
57
Replacing License Plate Lamp Bulbs
58
Driver Controls
59
Multi-Function Lever
59
Steering Wheel Adjustment
59
Tilt Steering Wheel
59
Windshield Washer
59
Illuminated Visor Mirror
60
Overhead Console
60
Tow/Haul Feature (5–Speed Automatic Transmission)
60
Transmission Control
60
Auxiliary Power Point (12VDC)
61
Storage Compartment
61
Cigar Lighter
62
One Touch down
62
Power Windows
62
Automatic Dimmer Inside Rear View Mirror
63
Power Rear Slider Window
63
Window Lock
63
Heated Outside Mirrors
64
Power Side View Mirrors
64
Clearance Lamps
65
Fold-Away Mirrors
65
Mirror Mounted Side Turn Signal Indicator
65
Power Adjustable Foot Pedals
66
Setting Speed Control
66
Increasing Speed While Using Speed Control
67
Resuming a Set Speed
67
Indicator Light
68
Reducing Speed While Using Speed Control
68
Turning off Speed Control
68
Climate Control Features (Steering Wheel)
69
Radio Control Features (Steering Wheel)
69
Steering Wheel Controls
69
Upfitter Controls
69
One-Touch Moon Roof
71
To Open the Moon Roof
71
Center Console
72
Mini-Message Center
72
To Close the Moon Roof
72
To Vent the Moon Roof
72
Check Trailer Indicator
74
Language
74
Message Center
74
Distance to Empty (DTE)
75
Info Menu
75
Reset
75
Selectable Features
75
Average Fuel Economy (AFE)
76
Compass Display
76
Compass Zone/Calibration Adjustment
77
Setup Menu
78
System Check
78
Autolamp Delay
79
Autolocks
79
Language Function
79
Units (English/Metric)
79
System Warnings
80
Low Brake Fluid Level Indicator
81
TBC Fault Indicator
81
Trailer Disconnected Indicator
81
Trailer Fault Indicator
81
Check Engine Temperature Indicator
82
Low Oil Pressure Indicator
82
Reduced Engine Power Indicator
82
Stop Engine Safely Indicator
82
DATA ERR Messages
83
Tailgate Lock
83
Tailgate Removal
84
Locks and Security
85
Keys
85
Power Door Locks
85
Smart Locks, Autolock
85
Relock
86
To Deactivate/Reactivate the Autolock Feature Using the Keypad
86
To Deactivate/Reactivate the Autolock Feature Using the Power Door Unlock Control
86
Childproof Door Locks
87
Remote Entry System
87
Unlocking the Doors
88
Locking the Doors
88
Power Door Lock Disable Feature
89
Sounding a Panic Alarm
89
Replacing the Battery
89
Replacing Lost Remote Entry Transmitters
90
How to Reprogram Your Remote Entry Transmitters
90
Illuminated Entry
91
Keyless Entry System
92
Programming a Personal Entry Code
92
Erasing Personal Code
93
Anti-Scan Feature
93
Unlocking and Locking the Doors Using Keyless Entry
93
Adjustable Head Restraints
94
Seating and Safety Restraints
94
40/20/40 Split Bench Seat
95
Full Bench Seat
95
40/20/40 Front Seat Armrest and Console
96
Adjusting the Front Power Seat
97
Captain’s Chair
97
Heated Seats
99
Using the Manual Lumbar Support
99
Rear Folding Seat System with Load Floor
100
Returning the Seat to Seating Position
100
Safety Restraints
101
Combination Lap and Shoulder Belts
103
Vehicle Sensitive Mode
103
Automatic Locking Mode
104
How to Disengage the Automatic Locking Mode
104
Energy Management Feature
105
Front Safety Belt Height Adjustment
105
Adjusting the Lap Belt
106
Safety Belt Warning Light and Indicator Chime
107
Beltminder
108
Reasons most Often Given for Not Wearing Safety Belts
109
Deactivating/Activating the Beltminder Feature
110
One Time Disable
110
Beltminder Activation and Deactivation Procedure
111
Safety Belt Extension Assembly
112
Safety Belt Maintenance
112
Airbag Supplemental Restraint System (SRS)
113
Important SRS Precautions
113
Children and Airbags
114
How Does the Airbag Supplemental Restraint System Work?
115
Determining if the SRS System Is Operational
116
Disposal of Airbags and Airbag Equipped Vehicles
117
Passenger Airbag ON/OFF Switch
117
Turning the Passenger Airbag off
117
Turning the Passenger Airbag Back on
118
Child Restraints
119
NHTSA Deactivation Criteria (Excluding Canada)
119
Transport Canada Deactivation Criteria (Canada Only)
120
Important Child Restraint Precautions
121
Safety Restrainst for Children
121
Child Booster Seats
122
Children and Safety Belts
122
Types of Booster Seats
123
When Children Should Use Booster Seats
123
The Importance of Shoulder Belts
124
Child and Infant or Child Safety Seats
125
Safety Seats for Children
125
Installing Child Safety Seats with Combination Lap and Shoulder Belts
126
Attaching Child Safety Seats with Tether Straps
129
Tether Strap Attachment
130
Tether Strap Attachment (Rear Supercab Only)
131
Tires, Wheels and Loading
133
4WD and AWD Systems
133
Notice to Utility Vehicle and Truck Owners
133
Vehicle Characteristics
133
How Your Vehicle Differs from Other Vehicles
134
Treadwear
135
Uniform Tire Quality Grading
135
Glossary of Tire Terminology
136
Temperature a B C
136
Tire Information
136
Traction AA a B C
136
Inflating Your Tires
137
Tire Inflation
137
Maximum Permissible Inflation Pressure
138
To Check the Pressure in Your Tire(S)
139
Tire Inflation Information
140
Inspecting Your Tires
141
Tire Care
141
Damage of Tires
142
Tire Wear
142
Tire Replacement Requirements
143
U.S. DOT Tire Identification Number (TIN)
143
Safety Practices and Tires
144
Highway Hazards
145
Tire and Wheel Alignment
145
Tire Rotation
145
Information Contained on the Tire Sidewall
147
Information on “P” Type Tires
148
Additional Information Contained on the Tire Sidewall for “LT” Type Tires
151
Information on “T” Type Tires
152
Location of the Tire Label or Safety Compliance Certification Label
152
Base Curb Weight
153
Snow Tires and Chains
153
Vehicle Curb Weight
153
Vehicle Loading - with and Without a Trailer
153
Payload
154
Cargo Weight
155
GAW (Gross Axle Weight)
155
GAWR (Gross Axle Weight Rating)
156
GVW (Gross Vehicle Weight)
156
GCW (Gross Combined Weight)
157
GCWR (Gross Combined Weight Rating)
157
GVWR (Gross Vehicle Weight Rating)
157
Maximum Loaded Trailer Weight
157
Steps for Determining the Correct Load Limit
158
Tongue Load or Fifth Wheel King Pin Weight
158
Special Loading Instructions for Owners of Pickup Trucks and Utility-Type Vehicles
159
Trailer Towing
160
Hitches
161
Preparing to Tow
161
Integrated Hitch Rating
162
Safety Chains
163
Trailer Brakes
163
Weight Distributing Hitch
163
Integrated Trailer Brake Controller
164
Gain
165
Explanation of Instrument Cluster Messages
166
TBC Fault
166
Trailer Disconnected/Check Trailer
166
Trailer Fault
166
Trailer Lamps
167
Using a Step Bumper
167
Driving While You Tow
168
Servicing after Towing
168
Trailer Towing Safety Tips
168
Backing up - Safety Tips
169
Braking - Safety Tips
169
Loading - Safety Tips
169
Launching or Retrieving a Boat
170
Recreational Towing
170
Tires and Towing - Safety Tips
170
4X4 Electronic Shift Transfer Case Vehicles with Automatic Transmissions
171
4X4 with Manual Shift Transfer Case
171
Driving
172
Starting
172
Positions of the Ignition
172
Preparing to Start Your Vehicle
172
Important Safety Precautions (Starting)
173
Starting the Engine Procedure
176
Guarding against Exhaust Fumes
176
Brakes
177
Important Ventilating Information
177
Using the Engine Block Heater
177
Four-Wheel Anti-Lock Brake System (ABS)
178
ABS Warning Lamp
178
Parking Brake
179
Steering
180
Traction-Lok Axle
181
Preparing to Drive Your Vehicle
181
Automatic Transmission Operation
182
Brake-Shift Interlock
182
Understanding the Shift Positions of the 5–Speed Automatic Transmission
183
P (Park)
183
R (Reverse)
183
N (Neutral)
184
D (Overdrive) with Tow/Haul off
184
D (Overdrive) with Tow/Haul on
184
3 (Third)
185
2 (Second)
185
1 (First)
185
If Your Vehicle Gets Stuck in Mud or Snow
185
Recommended Shift Speeds
186
Maximum Downshift Speeds Table
187
Reverse
187
Parking Your Vehicle
187
Removing the Key
188
Reverse Sensing System (RSS)
188
Four-Wheel Drive (4WD) Operation
190
Manual Shift on Stop (MSOS) 4X4 System
190
Electronic Shift on the Fly (ESOF) 4X4 System
190
Using a Manual Shift on Stop (MSOS) 4WD System
192
Shifting from 2H (2WD High) to 4H (4WD High)
192
Shifting from 4H (4WD High) to 2H (2WD High)
193
Shifting from 4H (4WD High) to 4L (4WD Low)
193
Shifting from 4L (4WD Low) to 4H (4WD High) or 2H (2WD High)
193
Using the N (Neutral) Position
194
Using the Electronic Shift on the Fly (ESOF) 4WD System
194
Positions of the Electronic Shift System
194
Shifting from 2WD (2WD High) to 4X4 HIGH (4WD High)
195
Shifting from 4X4 HIGH (4WD High) to 2WD (2WD High)
195
Shifting from 4X4 HIGH (4WD High) to 4X4 LOW (4WD Low)
195
Shifting from 4X4 LOW (4WD Low) to 4X4 HIGH (4WD High) or 2WD (2WD High)
196
Driving Off-Road with Truck and Utility Vehicles
196
Basic Operating Principles
197
If Your Vehicle Goes off the Edge of the Pavement
197
If Your Vehicle Gets Stuck
198
Emergency Maneuvers
198
Parking
199
4WD Systems
199
Normal Characteristics
200
Sand
200
Mud and Water
200
Driving on Hilly or Sloping Terrain
201
Driving on Snow and Ice
202
Maintenance and Modifications
203
Vehicle Used as a Stationary Power Source
203
Driting through Water
204
Installing the Snowplow
204
Operating the Vehicle with the Snowplow Attached
205
Snowplowing with Your Airbag-Equipped Vehicle
205
Transmission Operation While Plowing
206
Removing the Snowplow Frame Mount
207
Roadside Emergencies
208
Getting Roadside Assistance
208
Fuel Pump Shut-Off Switch
210
Hazard Flasher Switch
210
Fuses and Relays
211
Standard Fuse Amperage Rating and Color
212
Passenger Compartment Fuse Panel
212
Fuses Codes Table
214
Power Distribution Box
217
High-Current Fuses and Relays Codes Table
218
Relays
220
Changing a Flat Tires
220
Dissimilar Spare Tire/Wheel Information
220
T-Type/Mini-Spare Tire Information (Harley-Davidson Only)
222
Location of the Spare Tire and Tools
223
Removing the Spare Tire (with Spare Tire Carrier Only)
223
Tire Change Procedure
225
Stowing the Flat/Spare Tire
231
Wheel Lug Nut Torque Specifications
232
Jump Starting Your Vehicle
233
Connecting the Jumper Cables
234
Jump Starting Procedure
235
Removing the Jumper Cables
236
Wrecker Towing
238
Customer Assistance
240
Reporting Safety Defects (U.S. Only)
246
Reporting Safety Defects (Canada Only)
247
Cleaning
248
Washing the Exterior
248
Waxing
248
Paint Chips
249
Aluminium Wheels and Wheel Covers
249
Engine Cleaning
249
Plastic (Non-Painted) Exterior Parts
250
Windows and Wiper Blades Cleaning
251
Instrument Panel and Cluster Lens Cleaning
251
Interior Trim Cleaning
252
Interior Cleaning
252
Leather Seats Cleaning
252
Leather Seats for the King Ranch F-250 and F-350 Crewcab - Cleaning
253
Scratches
253
Conditioning
254
Underbody Cleaning
254
Maintenance and Specifications
256
Precautions When Servicing Your Vehicle
256
Service Recommendations
256
Opening the Hood
257
Engine Compartment Components - 5.4L V8 Gasoline Engines
258
Engine Compartment Components - 6.8L V10 Gasoline Engine
259
Changing the Wiper Blades
260
Windshield Washer Fluid
260
Checking the Engine Oil
261
Adding Engine Oil
263
Engine Oil and Filter Recommendations
264
Battery Maintenance
265
Checking Engine Coolant
267
Adding Engine Coolant
268
Recycled Engine Coolant
270
Coolant Refill Capacity
271
Severe Climates
271
How Fail-Safe Cooling Works
272
What You Should Know about Fail-Safe Cooling
272
When Fail-Safe Mode Is Activated
272
Fuel Filter
273
Fuel Information
273
Fuel Filler Cap
275
Refueling
275
Choosing the Right Fuel
276
Cleaner Air
277
Fuel Quality
277
Octane Recommendations
277
Essentials of Good Fuel Economy
278
Filling the Tank
278
Fuel Measuring Techniques
278
Running out of Fuel
278
Calculating Fuel Economy
279
Driving Style — Good Driving and Fuel Economy Habits
279
Emission Control System
281
EPA Window Sticker
281
On Board Diagnostics (OBD-II)
282
Power Steering Fluid
283
Readiness for Inspection/Maintenance (I/M) Testing
283
Brake Fluid
285
Clutch Fluid
285
Checking Automatic Transmission Fluid
286
Adjusting Automatic Transmission Fluid Levels
287
Correct Fluid Level
287
High Fluid Level
287
Low Fluid Level
287
Automatic Transmission Fluid Filter
288
Checking and Adding Manual Transmission Fluid
289
Air Filter Maintenance
290
Driveline Universal Joint and Slip Yoke
290
Transfer Case Fluid
290
Air Filter(S)
291
Changing the Air Filter Element
291
Motorcraft Part Numbers
293
Maintenance Product Specifications and Capacities
294
Refill Capacities
294
Drivebelt Routing
298
Engine Data
298
Identifying Your Vehicle
299
Safety Compliance Certification Label
299
Vehicle Identification Number (VIN)
299
Transmission/Transaxle Code Designations
300
Accessories
301
Index
304
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Ford F-550 and is the answer not in the manual?
Ask a question
Ford F-550 Specifications
General
Brand
Ford
Model
F-550
Category
Automobile
Language
English
Related product manuals
Ford 2006 F-550
312 pages
Ford 2016 F-550 SUPER DUTY
510 pages
Ford F-350
442 pages
Ford F-150 2021
138 pages
Ford 2008 F-150
400 pages
Ford 2002 F-150
312 pages
Ford 1999 F-150
14 pages
Ford 2002 F-250
264 pages
Ford 2006 F-150
2 pages
Ford 1998 F-150
219 pages
Ford 2006 F-250
312 pages
Ford 1999 F-350
248 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
