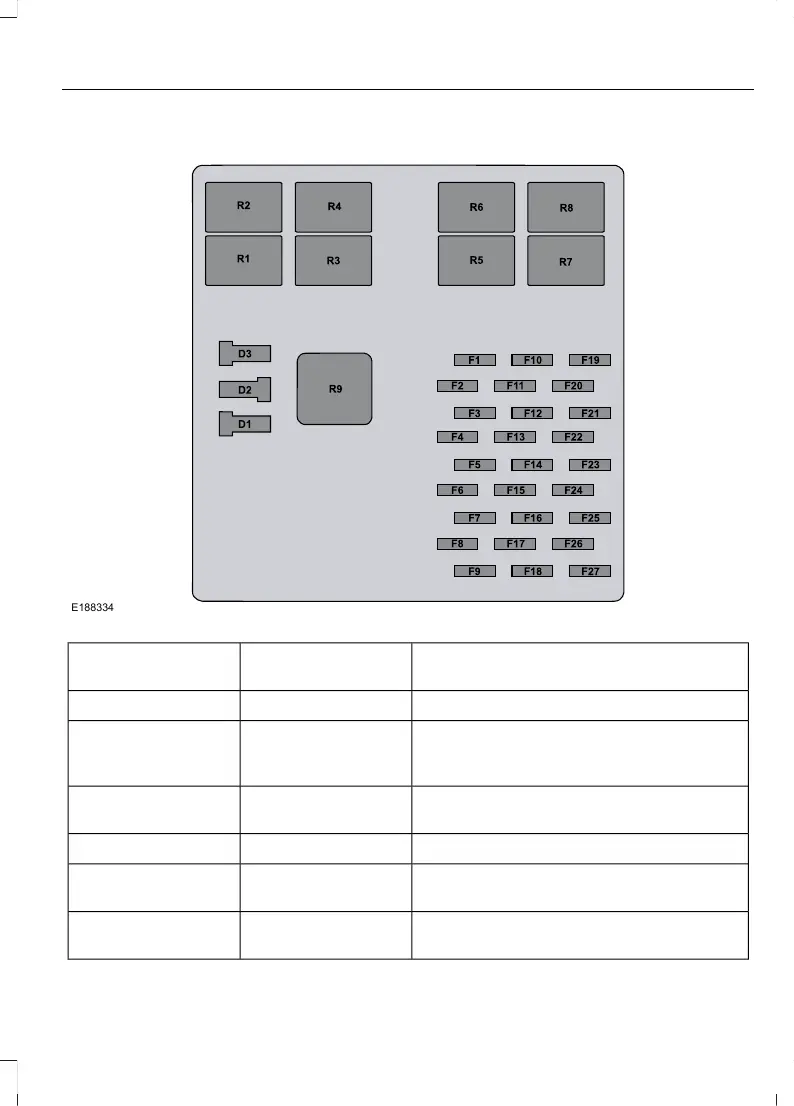

F59 and UPS Passenger Compartment Fuse Panel

E188334

Protected ComponentsFuse RatingFuse or Relay

Number

Not used.—F1

Right/left rear direction indicator.20AF2

Right/left direction indicator relay coil.

Instrument cluster right/direction indicator.

Left turn signal.15AF3

Hazard lamps.

Blower motor relay coil.15AF4

Right front/rear direction indicator.15AF5

Right front/rear hazard lamp.

Anti-lock brake system module

(HydroMax).

10AF6

Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
