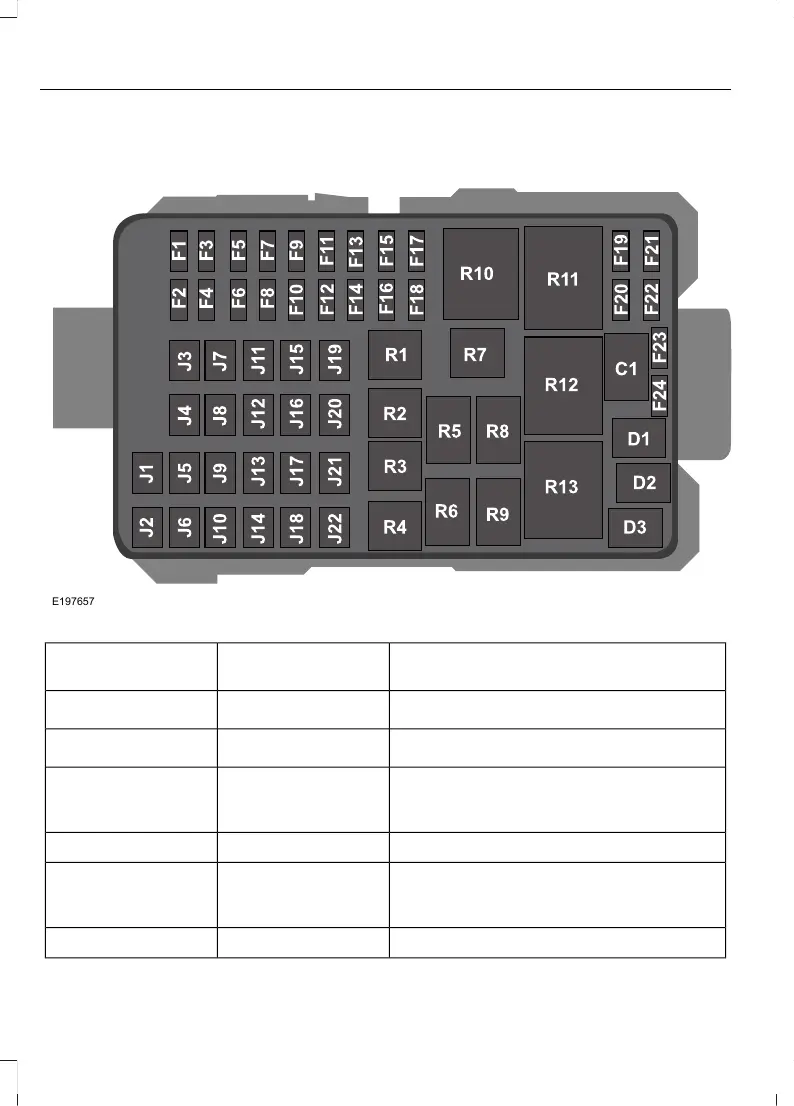

Protected ComponentsFuse RatingFuse or Relay
Number
Air conditioning compressor clutch.
10A
1
F1
Anti-lock brake system - HydroMax.
30A
1
F2
Powertrain control module keep alive
memory.
5A
1
F3
Powertrain control module relay coil.
Not used.—F4
Trailer tow running lamp relay coil.
20A
1
F5
Park lamp feeds.
Instrument panel dimmer module.
Not used.—F6
72
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Fuses
