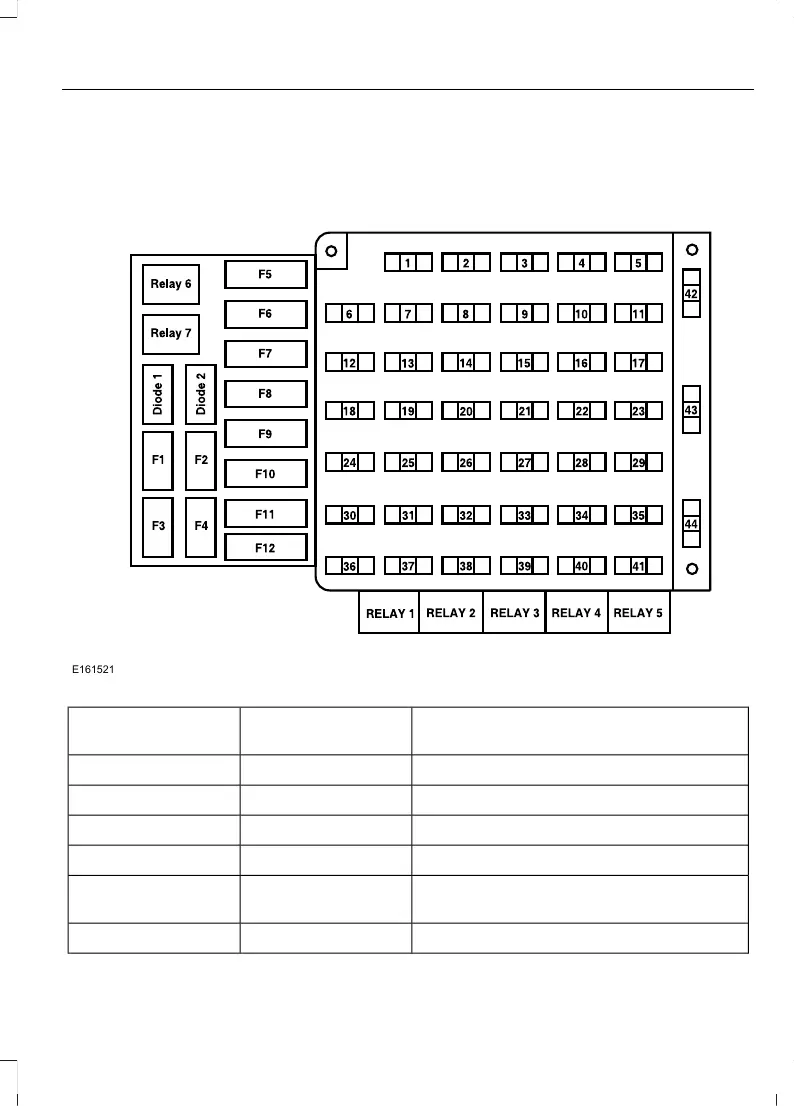

F53 Passenger Compartment Fuse
Panel
Locate this fuse panel below and to the
left of the steering wheel near the brake
pedal. Remove the panel cover to access
the fuses.
To remove a fuse, use the fuse panel
cover's fuse puller tool.
Protected ComponentsFuse RatingFuse or Relay
Number
Multi function switch.20A1
Not used.—2
Not used.—3
Instrument cluster.10A4
Body builder accessory feed (accessory
and run).
10A5
Not used.—6
81
Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Fuses
