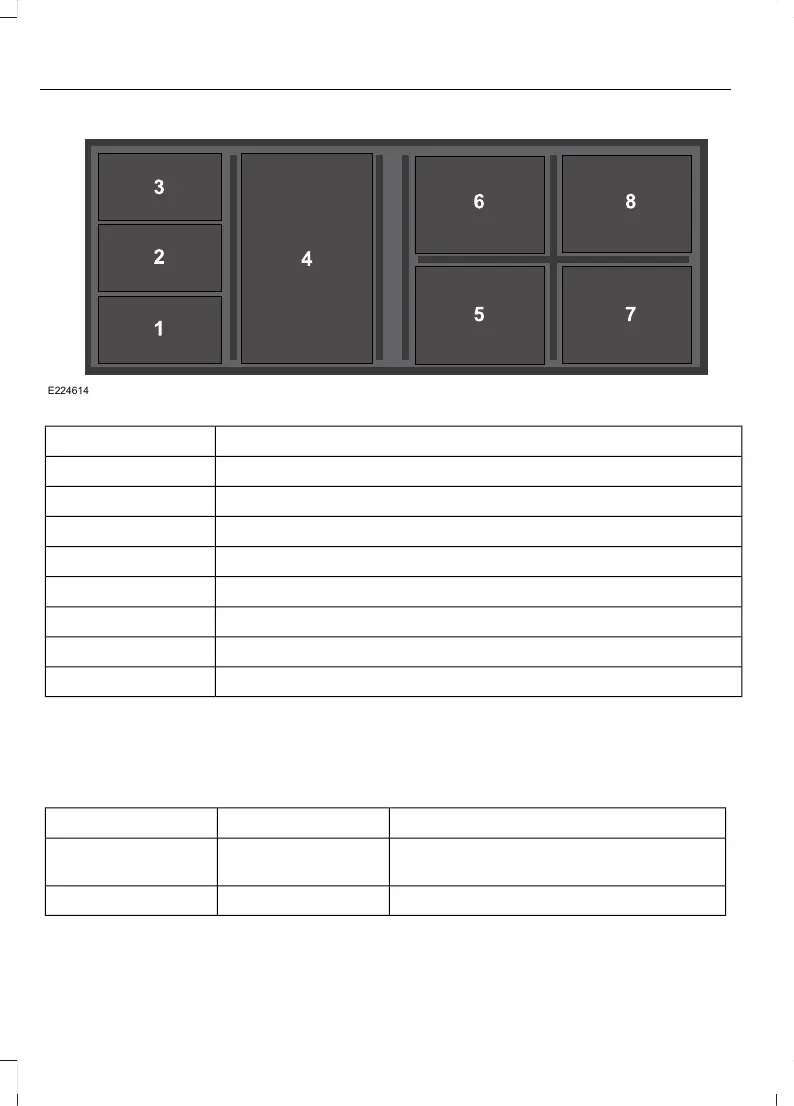

Protected ComponentsRelay Number
Not used.1
Not used.2
Not used.3
Daytime running lamps power relay.4
HydroMax – brake on/off signal isolating relay.5
Reverse lamps relay.6
Starter ground relay.7
Trailer tow parking lamps relay.8
Fuse Holder Module
The fuse holder is next to the diode and
relay module.
Protected ComponentsFuse RatingFuse Number
Break on/off relay feed (HydroMax
module).
10A1
Brake transmission shift interlock.10A2
80
