Ford Five Hundred 2005 - High-Current Fuses Codes

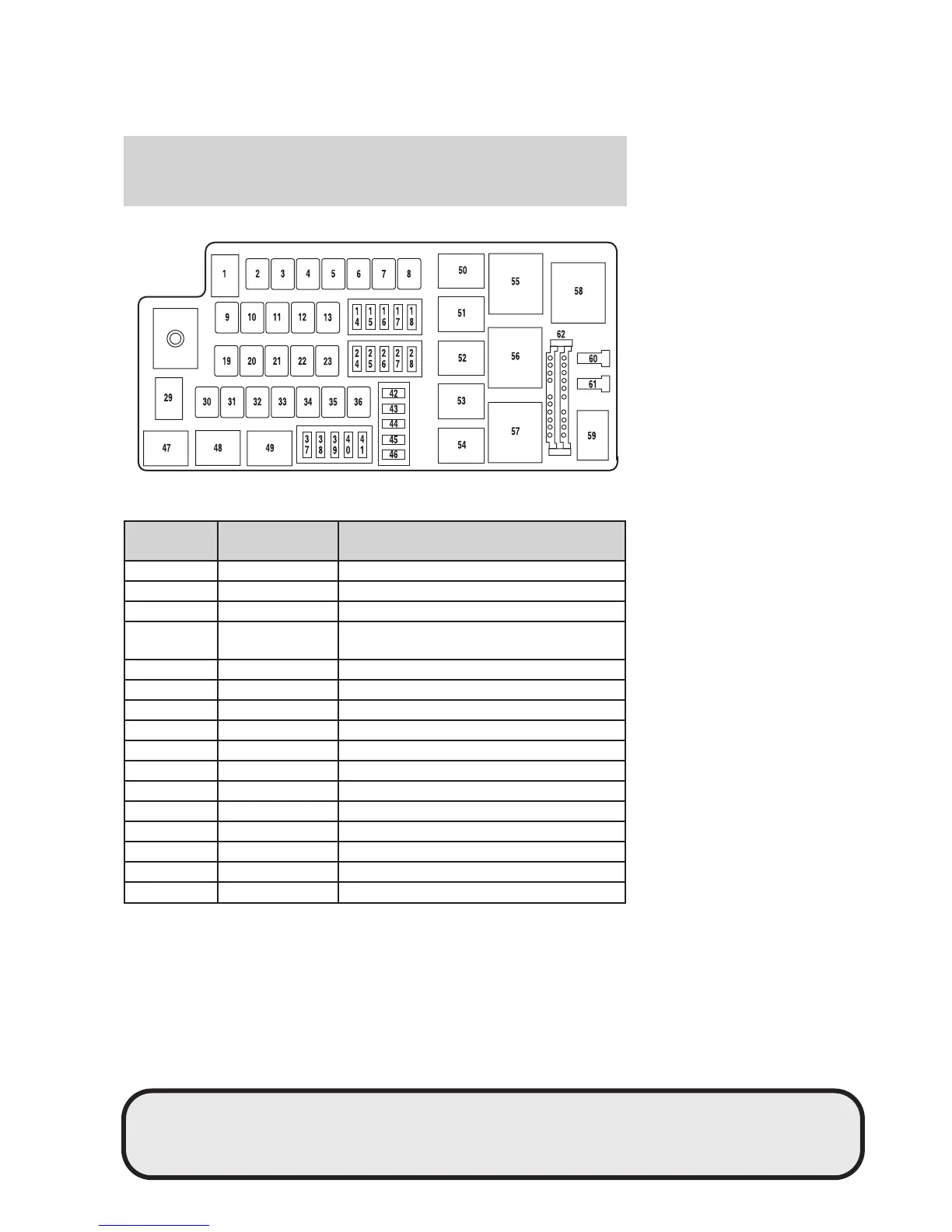

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 80A* SJB, SJB fuses 1, 2, 3, 4, 5, 8 and 12
2 — Not used
3 — Not used
4 50A* Wiper RUN/ACC relay to PDB, PDB
fuses 37 and 38
5 — Not used
6 20A* Moonroof
7 — Not used
8 60A* Engine cooling fan
9 — Not used
10 40A* Anti-lock Brake System (ABS) (Motor)
11 30A* Starter
12 30A* Powertrain Control Module (PCM) relay
13 20A* ABS (Valves)
14 — Not used
15 — Not used
16 15A** Traction Control Module (TCM)
