Ford Focus 2016 - Front Fog Lamp

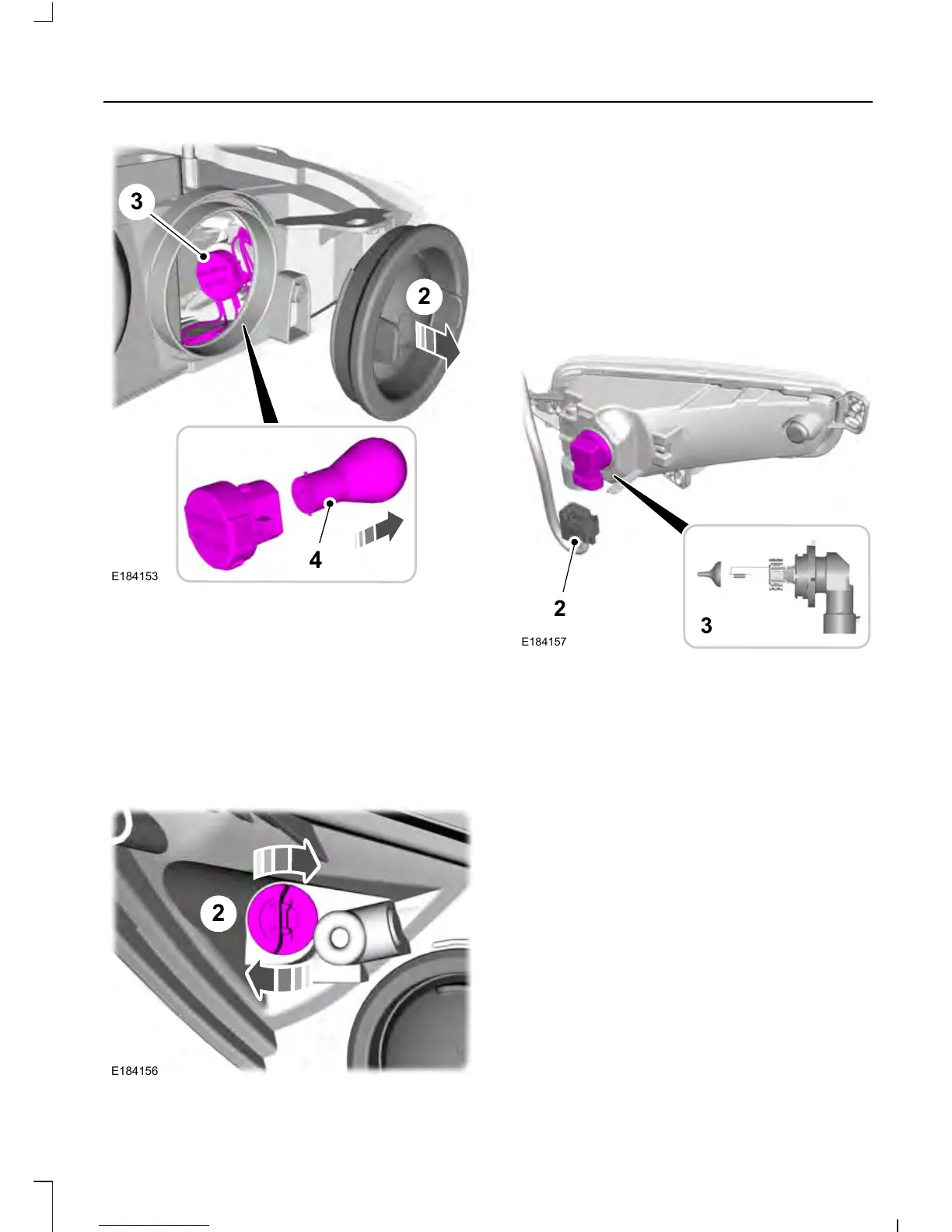

E184153
3
4
2
2. Carefully remove the cover.
3. Turn the bulb holder counterclockwise
and remove it.
4. Press the bulb in and turn the bulb
counterclockwise to remove it.
Side Marker Bulb
1. Remove the headlamp. See
Removing a Headlamp (page 224).
2
E184156
2. Carefully remove the cover.
3. Remove the bulb holder by pulling it
straight out.
4. Remove the bulb by pulling it straight
out.
Front Fog Lamp
1. Remove fog lamp grille from the front
fascia then unscrew the fog lamp.
2
E184157
3
2. Disconnect the electrical connector.
3. Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder.
227
Focus (CDH) Canada/United States of America, enUSA, First Printing
Maintenance
