Manoeuvring with the parking aid

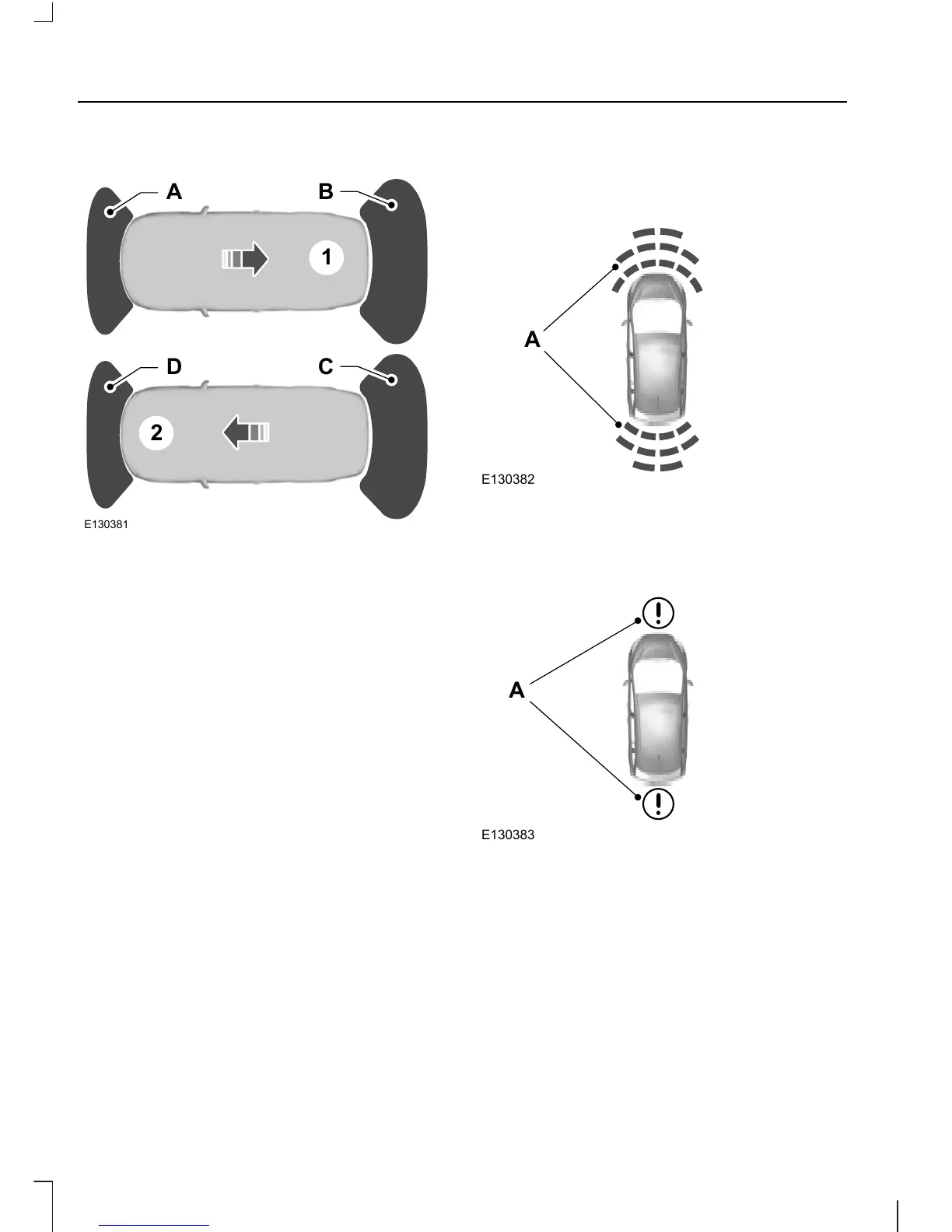

E130381
A B
D C
1
2
Reverse gear selected1
Neutral or forward gear selected2
Display and toneA
Display and toneB
Display onlyC
Display and toneD
You will hear an intermittent tone at a
distance of approximately 150 centimetres
(59 inches) between the obstacle and rear
bumper, approximately 80 centimetres (31
inches) between the obstacle and front
bumper and approximately 50 centimetres
(20 inches) to the side. Decreasing the
distance accelerates the intermittent tone.
A continuous tone will start at a distance
of less than 30 centimetres (11 inches) to
the front or rear bumper.
Note: On vehicles with a tow bar fitted and
approved by us the continuous tone will
start at a distance of 45 centimetres (18
inches) from the rear bumper.
You will hear an alternating tone from the
front and rear if obstacles are closer than
30 centimetres (11 inches) to the front and
rear bumpers.
E130382
A
Distance Indicator.A
As the distance decreases the indicator
moves towards the vehicle.
E130383
A
Malfuction indicator.A
Note: If a malfunction is indicated the
system will be disabled. Have the system
checked by a properly trained technician.
150
Parking Aids
