NOTICE
Each recharging post must be anchored to a foundation which guarantees its stability
towards vertical and horizontal actions
[1]
.
It is the customer’s responsibility to design and build the foundation to guarantee stability
of each recharging post.

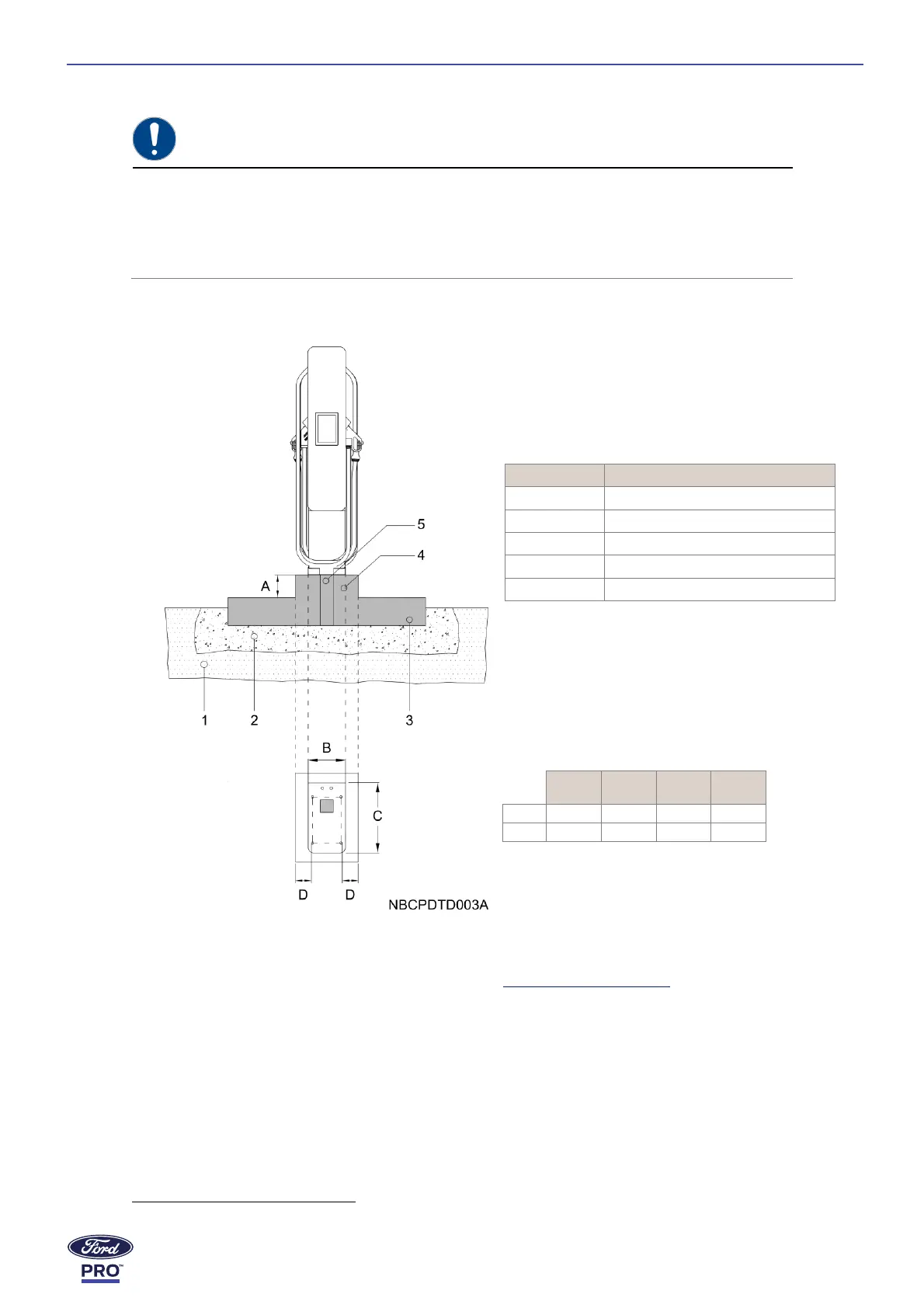

The following figure shows an example of commercial post once installed in its base site.
Consult anchoring recommendations in section “Anchoring requirements”.
[1]
In case the project includes a posts skid, Power Electronics will provide additional instructions for building the base site.
Reference
Description
1
Soil
2
Lean concrete
3
Foundation slab
4
Support base for charging post
5
Trench for cable access
+
A B C D
mm
180
290
549
160
inch
7.09
11.42
21.61
6.30
