Air vents.A

Direction indicator lever.B

Information display controls.C

Instrument cluster.D

Audio control. Voice control.E

Wiper lever.F

Information display.G

Audio unit.H

Door lock indicator.I

Hazard flasher switch.J

Climate control.K

Parking aid button.L

Auto Start-Stop button.M

Heated rear window button.N

Heated windshield button.O

Ignition switch.P

Steering wheel adjustment lever.Q

Horn.R

Cruise control buttons.S

Lighting control. Front fog lamp

button. Rear fog lamp button.

Headlamp leveling control.

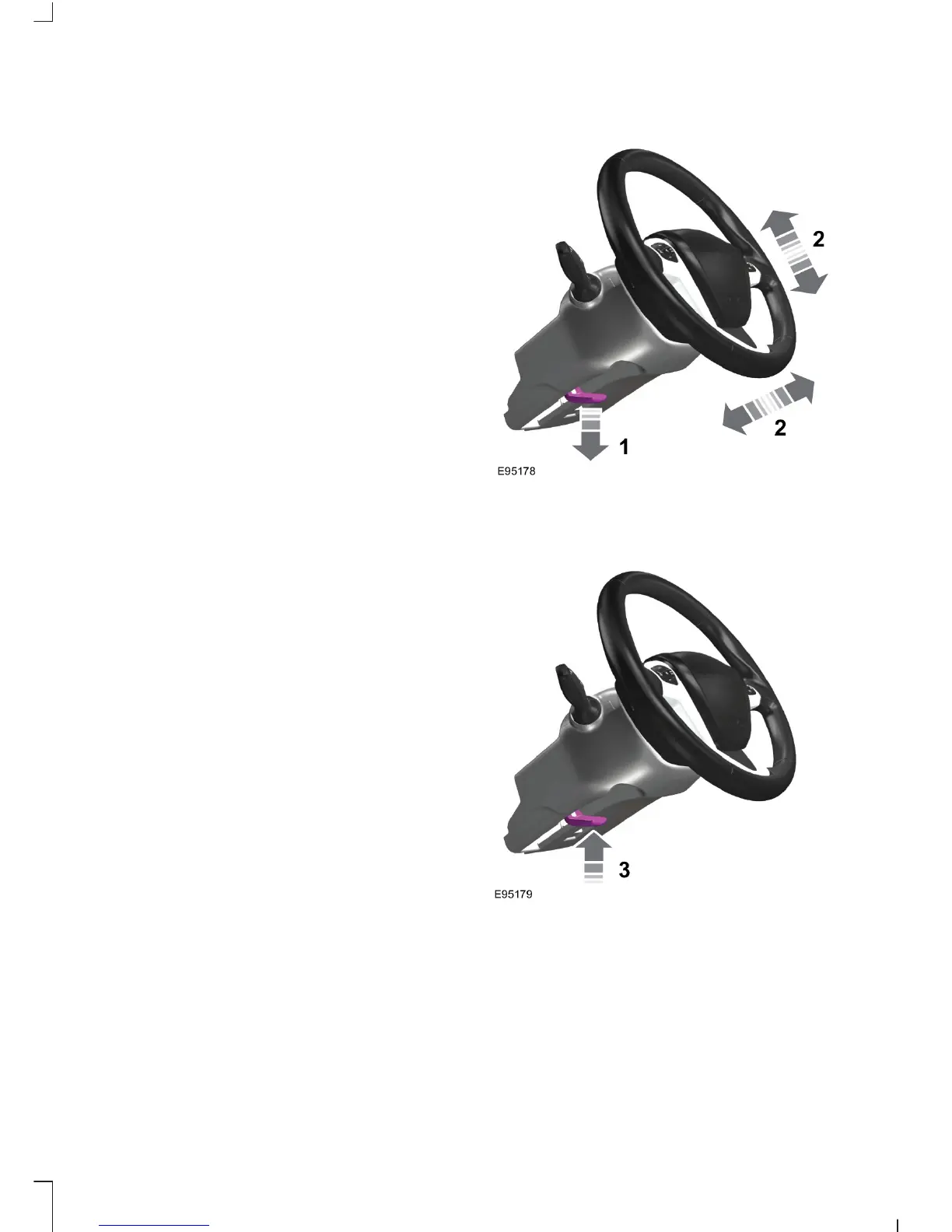

ADJUSTING THE STEERING

WHEEL

1. Unlock the steering column.

2. Adjust the steering wheel to the desired

position.

3. Lock the steering column.
