164
[SS08800(ALL)01/96]
17-1/2 pica
art:0050171-A

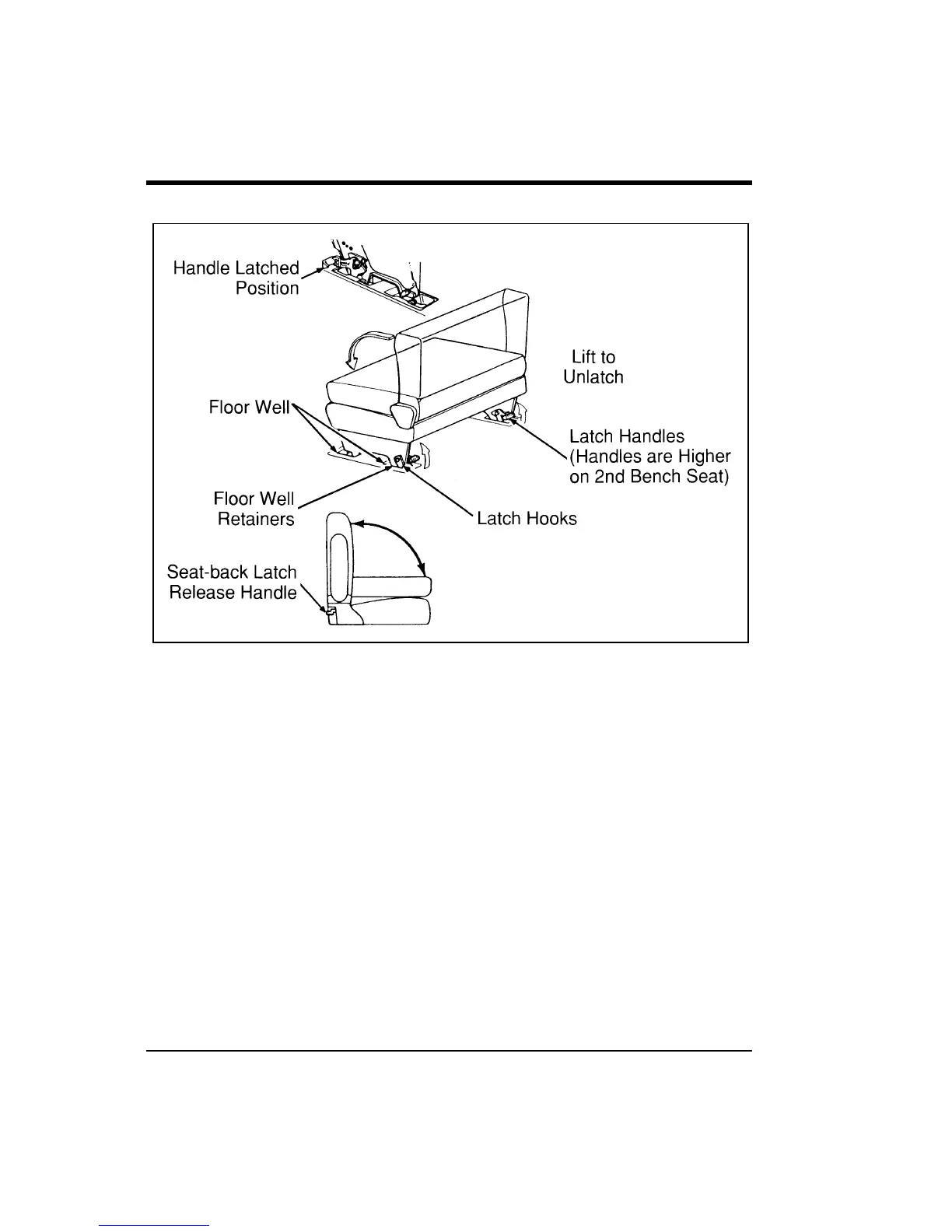

Figure 3: Removal and installation of the second and third bench seats
*
[SS08900(ALL)01/96]
Be careful that the latches are not damaged when the seats are
stored.
*
[SS09000(ALL)01/96]
To install the seat assembly:
*
[SS09100(ALL)01/96] 1. Clear the area of debris around the seat floor attachments.
[SS09200(ALL)01/96] 2. With the seatback in a folded and latched position (except
for bench seats equipped with built-in child safety seat),
place the seat assembly in your vehicle. Tip the seat
assembly forward and engage the front seat hooks onto the
forward attachment pins in the floor wells.
*
[SS09300(ALL)01/96] 3. Rotate the seat downward and engage the latch into the rear
floor attachment. Lifting of the latch handles is not required
for installation.
