270
[ER10300(ALL)01/96]
17-1/2 pica
art:0050118-A

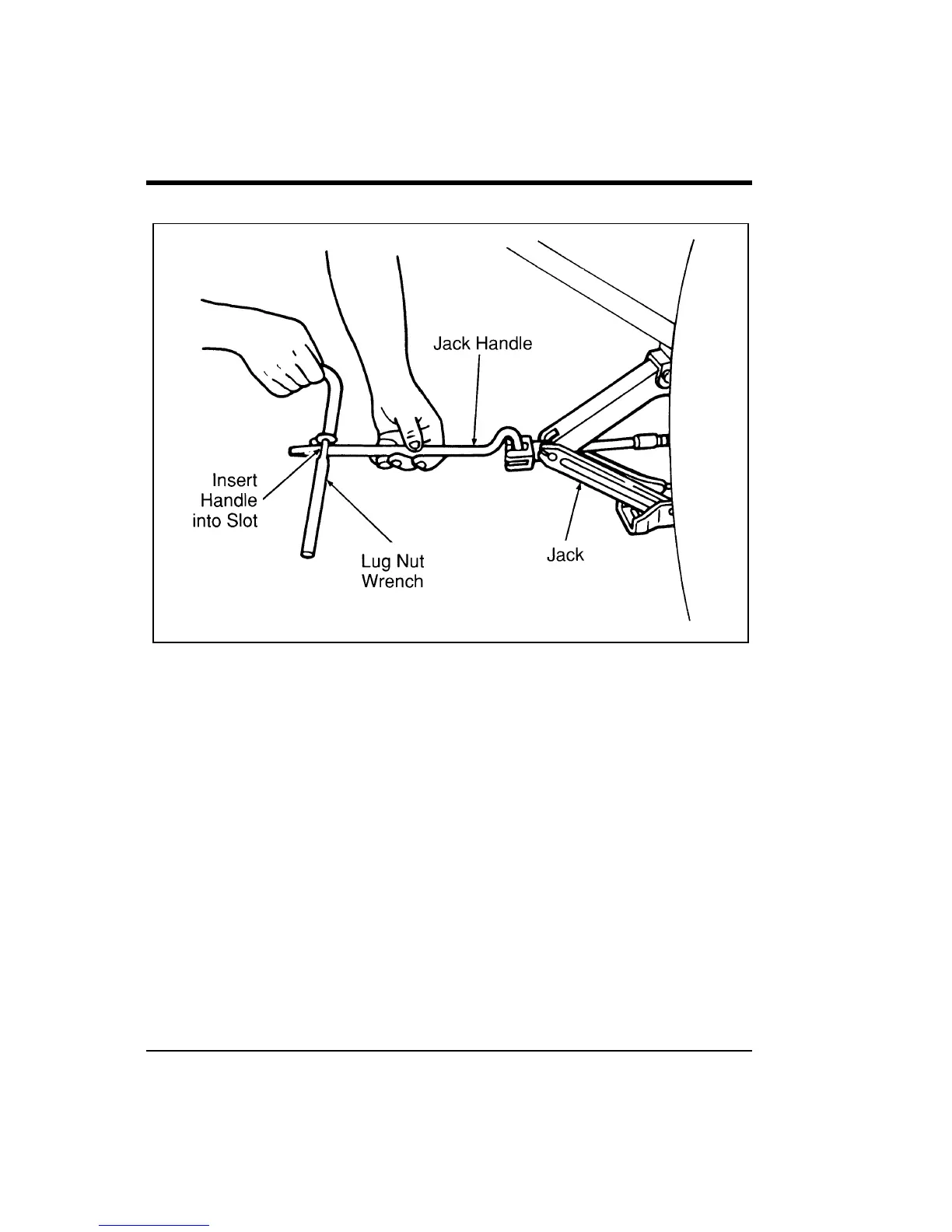

The jack and handle assembly
*
[ER10400(ALL)01/96] 7. Turn the lug nut wrench (attached to the jack handle)
clockwise to raise the vehicle off the ground.
*
[ER10500(ALL)01/96] 8. Remove the wheel lug nuts with the lug nut wrench.
*
[ER10600(ALL)01/96] 9. Remove the flat tire and replace it with the spare tire.
*
[ER10700(ALL)01/96] 10. Place the wheel lug nuts on the spare tire. Use the lug nut
wrench to screw the lug nuts snug against the wheel, but do
not tighten fully.
*
[ER10800(ALL)01/96] 11. Lower the vehicle by turning the jack handle
counterclockwise.
*
[ER10900(ALL)01/96] 12. Use the wheel lug wrench to tighten lug nuts in the
appropriate sequence. Re-check for complete tightness.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996
