Instrumentation
29
[IS15559(ALL)07/96]
7-1/2 pica art:0050156-B

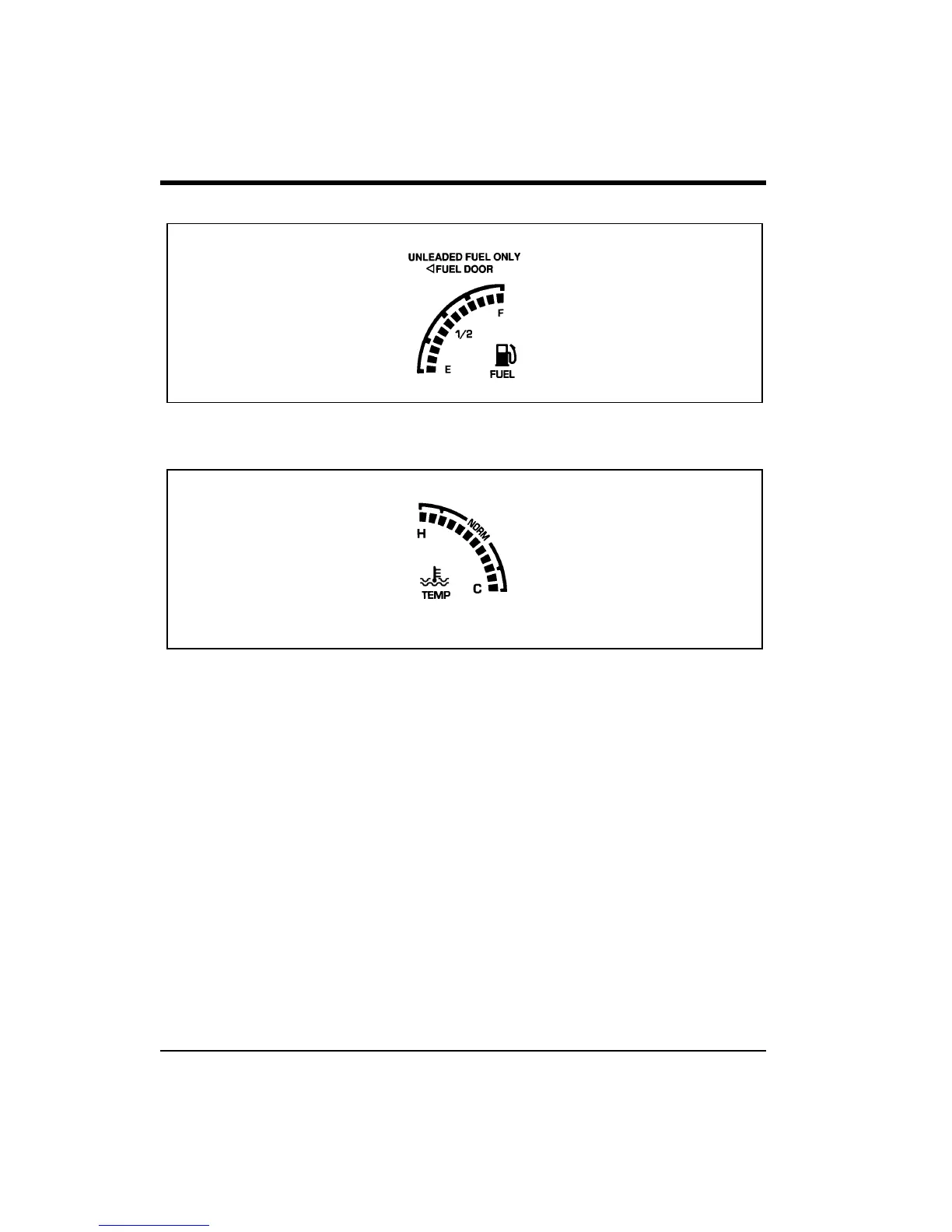

The fuel gauge
%
*
[IS15561(ALL)07/96]
Engine Coolant Temperature Gauge
[IS15563(ALL)07/96]
7-1/2 pica art:0050175-B
Engine coolant temperature gauge
[IS15565(ALL)07/96]
This gauge indicates the temperature of the engine’s coolant, not
the coolant level. If the coolant is not at its proper level or
mixture, the gauge indication will not be accurate. The gauge is
identified by a thermometer symbol, an “H” (hot), and a “C”
(cold). The “NORM” indicates the normal operating range. The
bars will move into the normal operating range as the engine
coolant warms up. It is acceptable for the bars to fluctuate
within the normal operating range under normal driving
conditions. Under certain driving conditions, such as heavy stop
and go traffic, or driving up hills in hot weather, the gauge may
indicate at the top of the NORMAL band. This is also
acceptable.
[IS15567(ALL)07/96]
If, under any circumstances, the bars move above the NORMAL
band, the temperature symbol will flash and a chime will sound
to alert the driver that the engine coolant is overheating and
continued operation may cause engine damage.
