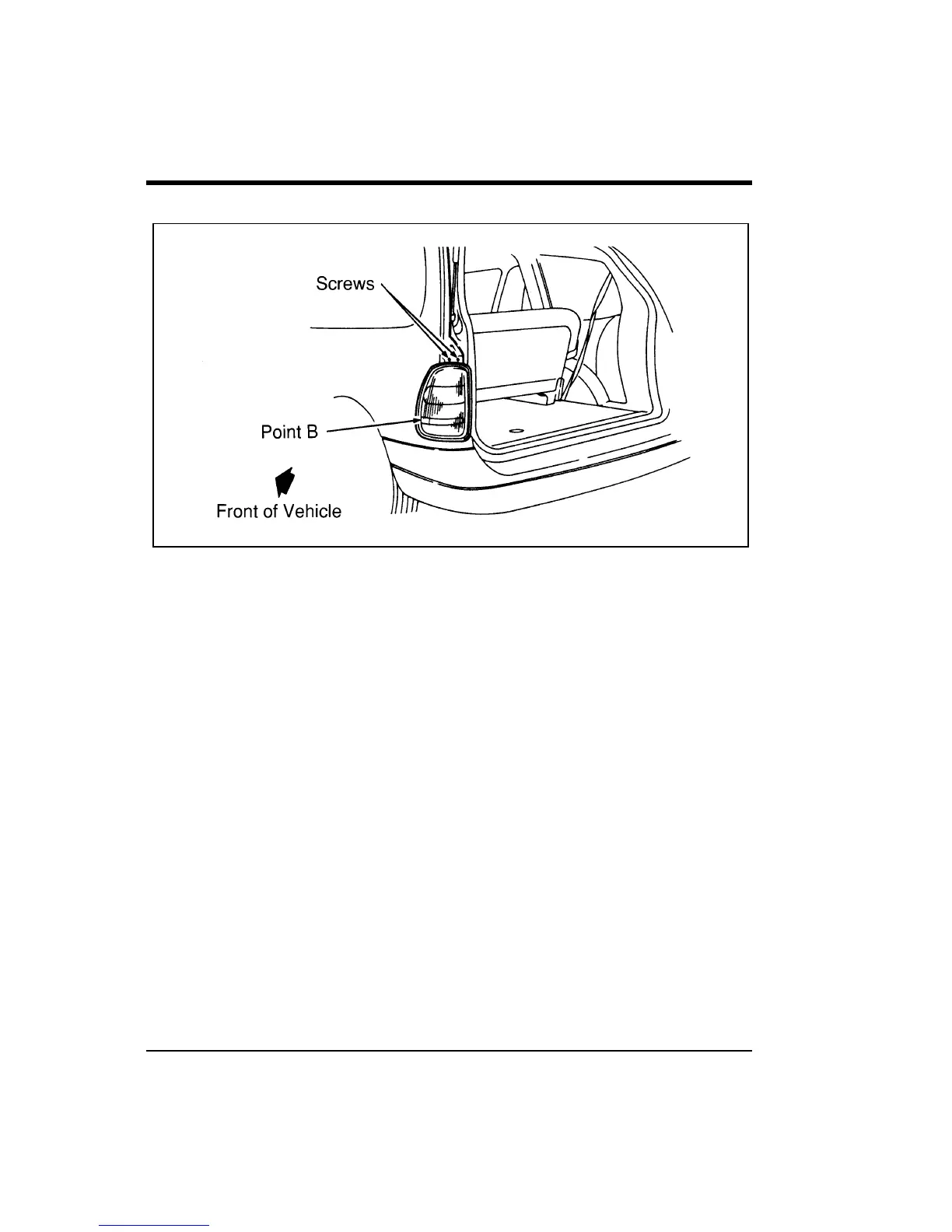

Taillamp lens removal
[MC36800(ALL)01/96] 4. Grasp lens along liftgate opening edge and pull straight
rearward until snap attachment releases.
[MC36900(ALL)01/96] 5. Remove bulb and socket by twisting to unlock and pulling
straight out.
[MC37000(ALL)01/96] 6. Remove bulb from socket by pulling straight out from
socket.
[MC37100(ALL)01/96]
To install a taillamp bulb:
[MC37200(ALL)01/96] 1. Insert new bulb into socket by pushing bulb until it is locked
in position.
[MC37300(ALL)01/96] 2. Install socket into lamp by aligning socket to lamp and
turning clockwise until locked in place.
[MC37400(ALL)01/96] 3. Align pins along liftgate edge with holes in body and snap
attachment into retainer.
[MC37500(ALL)01/96] 4. Rock lens around on outer edge and snap in second snap
attachment.
[MC37600(ALL)01/96] 5. Replace two screws along top edge of lens.
