Forest King 20120 - Parts List Overview; Component Identification

12

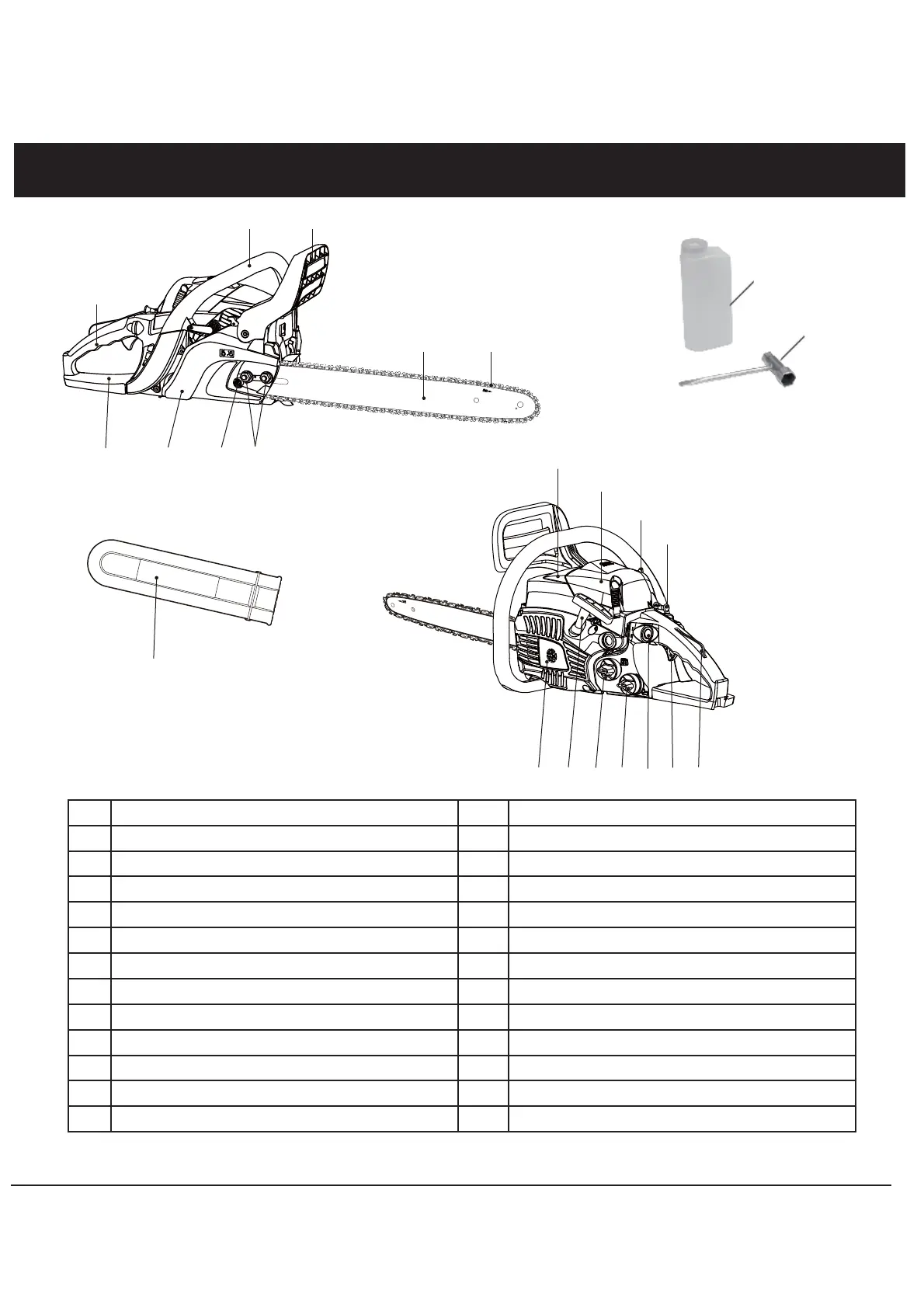

Parts List
# Description # Description
A Front Baffle M Stop Switch
B Carrying Handle (held by the left hand) N Starter Cover
C Rear Handle (held by the right hand) O Trigger
D Hand Guard Of Rear Handle P Trigger Control Arm
E Right Side Plate Q Choke Valve Pulling Rod
F Tensioning Device R Air Filter Locking Nut
G Locking Nut Of Right Side Plate S Small Cap Of Air Filter
H Guide Plate T Large Cap
I Chain U Guide Plate Sleeve
J Fuel Tank Cover V Plug Wrench
K Oil Tank Cover W Oil Mixing Bottle
LStarter Handle
U
V
A
M
B
N
C
O
D
P
E
Q
F
R
G
S
H
T
I
U
J
V
K
W
L
V
W
