Stand/Trolley Assembly

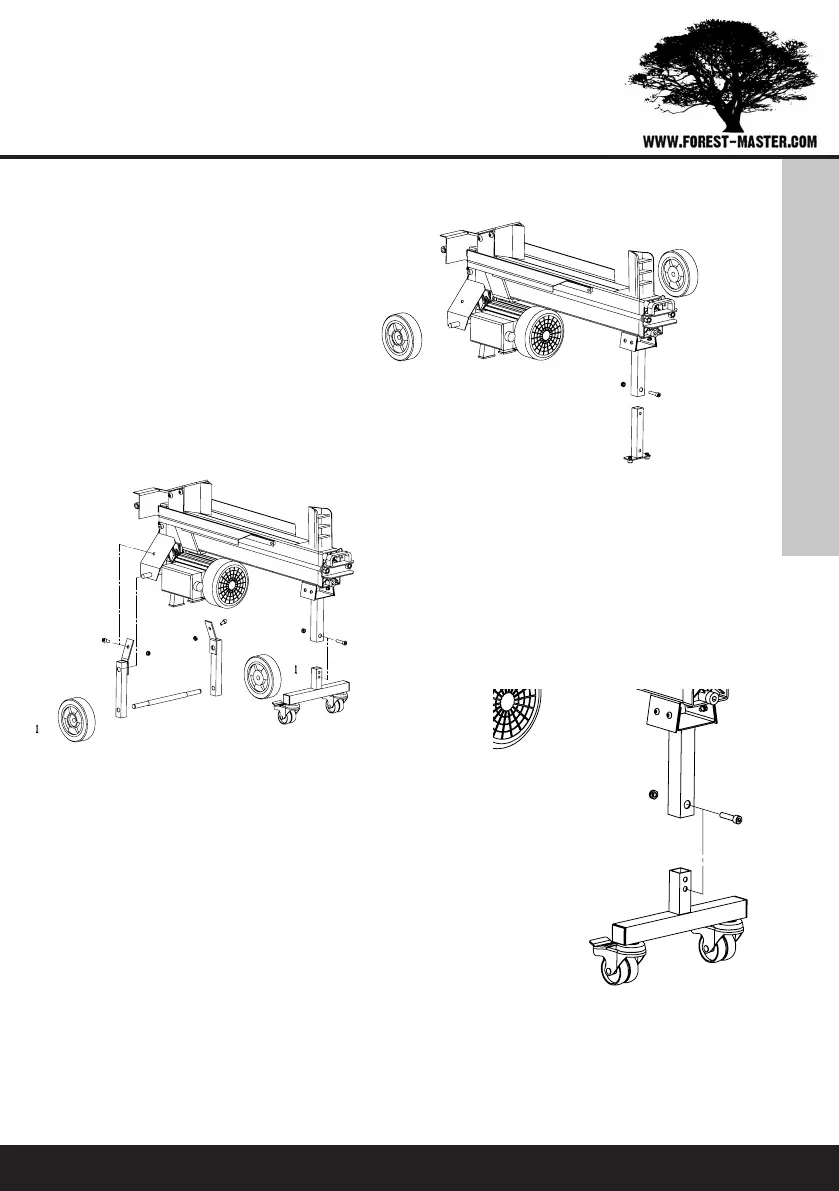

3. Connect the castor assembly
to the front leg. Note that the
bolt should go through the lower
hole in the castor assembly.
Note that the mid height trolley
can also be used with the
standard front foot that is fitted
to the log splitter when shipped.
10MW Trolley
Disconnect the power supply
before commencing.
1. Remove the wheels from the
wheel carriage and remove the low-
er part of the front leg.
2. Slot the axle through the rear
legs and connect the wheels
to the axle using the existing
circlips or the split pins provided.
Connect the wheel assembly to
the wheel carriage.
FM5, FM8 & FM10 (All Versions) 29
