Work Bench Fitting
FM5, FM8 & FM10 (All Versions)30

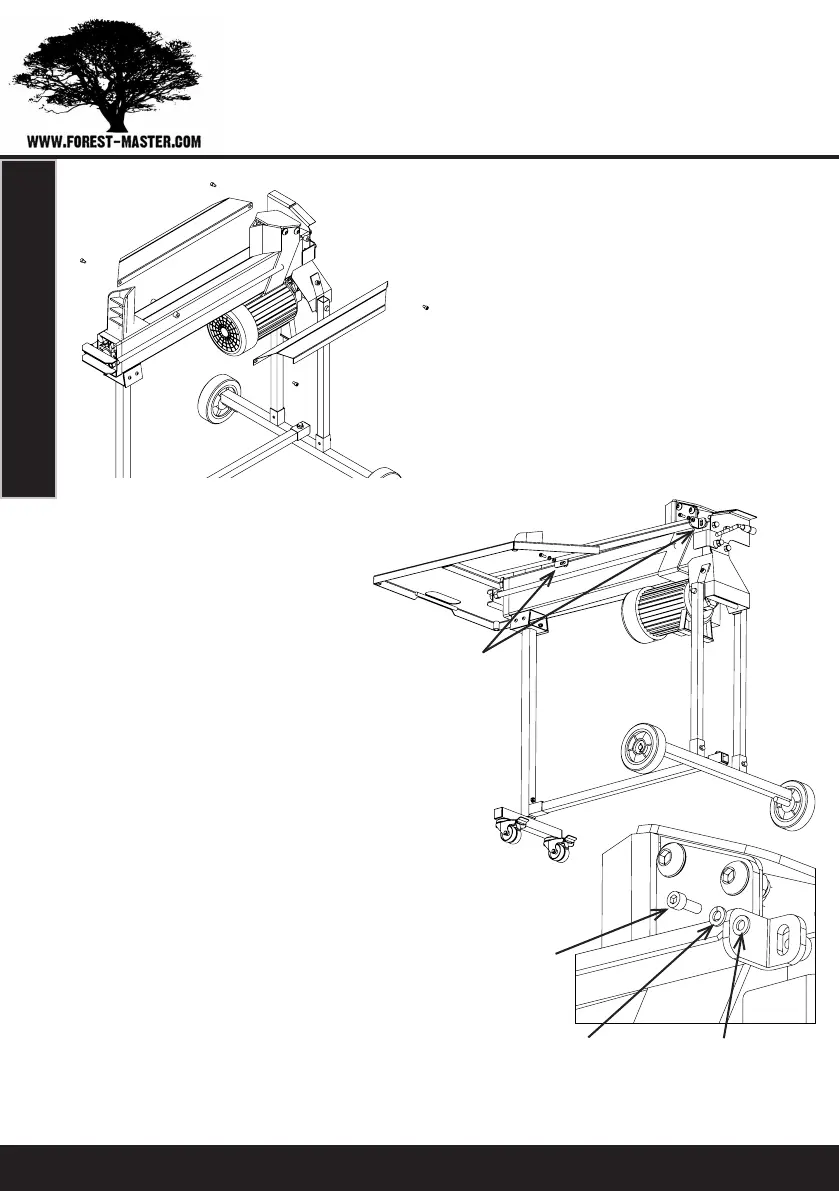

1) Using an M6 Allen key (not
supplied), undo the bolts and
remove the existing log support
rails.
Ensure you keep the spring
washers, as these will be used to
attach the tray.
MOUNTING
POINTS
FLAT WASHERSPRING
WASHER
M6 X 16
2) Attach the tray to the rail
mounting points, using
the M6x16 bolts and flat
washers supplied, as well
as the spring washer from
step 1.
The rear mount has a
vertical slot to adjust the
angle of the work bench
so that it is parallel with
the splitter bed.
