Forest Master Model: FM6DD-MUL/FM6DDES-MUL/FM4DDE-MUL
10
Assembly

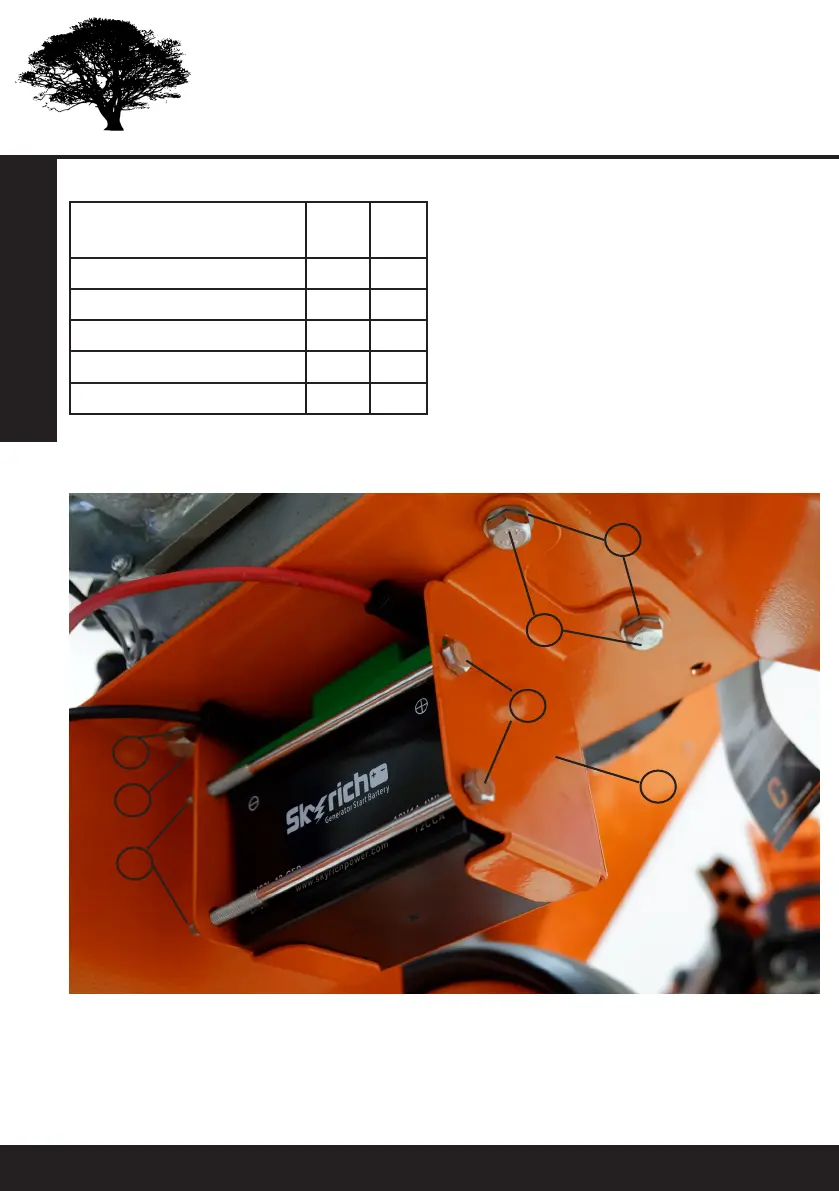

FM6DDES-MUL Battery tray attachment
Part Name
Part
No.
Qty.
Battery Tray 70 1
M5x125 Bolt 71 2
M5 Nut 72 2
Battery 73 1
Ignition Key 74 2
Attach the battery tray (70) to the underside of the base (42) using the 4 M8x35
bolts (56) and 4 M8 washers (33) that also secure the engine to the base.
Connect the battery wires to the terminals on the battery (red to positive(+)). Place
the battery on the tray and secure using the two M5 x 125 bolts (71) and nuts (72).
70
56
33
71
72
56
33
